Commissioning
Possible settings through DIP switch
34
L
EDS84AYCIB EN 4.0 - 11/2010
6.2 Possible settings through DIP switch

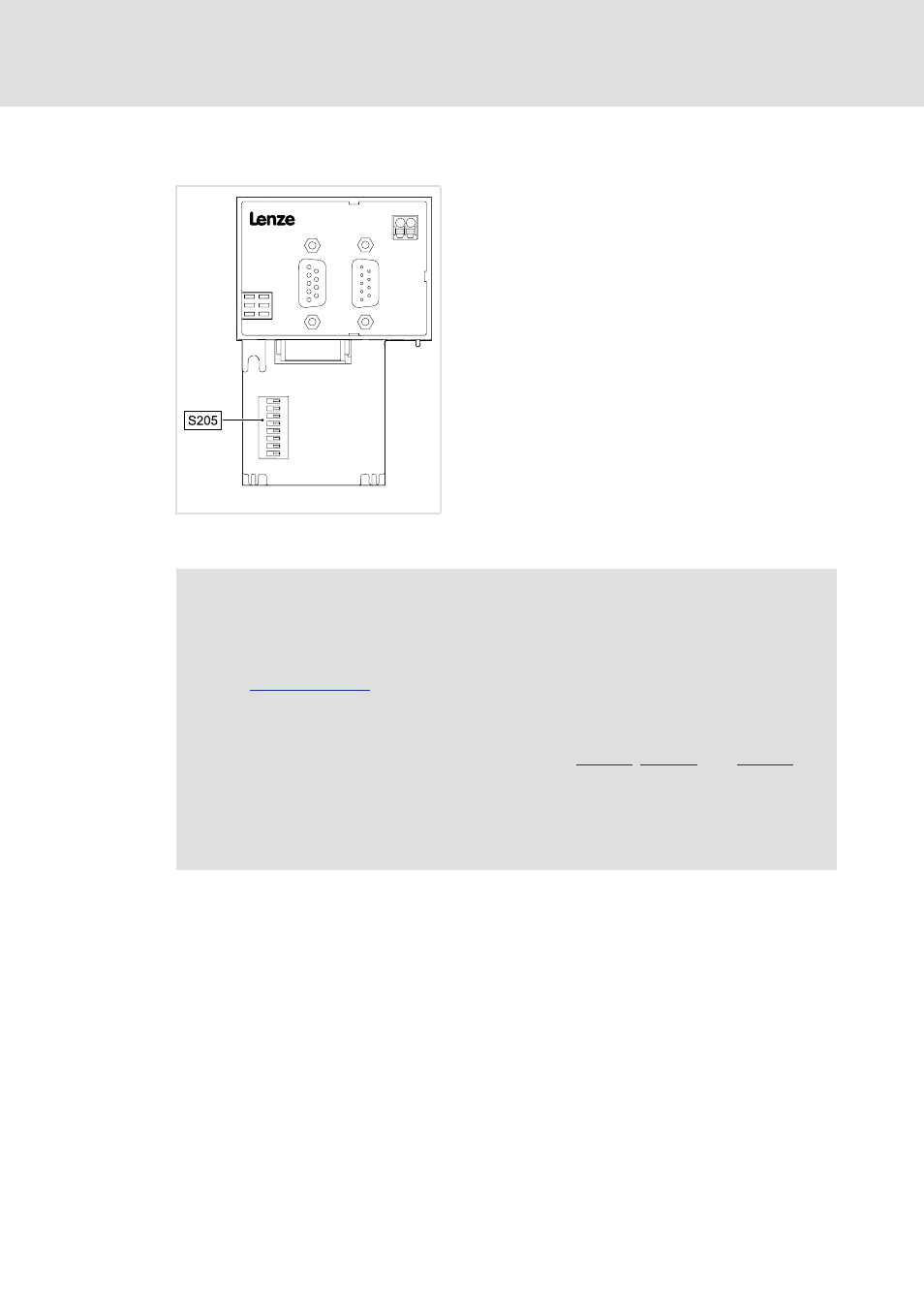

[6-1] DIP switch
E84YCIB001D
The following can be set through the DIP switch
(S205):
 Number of process data words (PD)
Switches: 1 ... 4
( 35)
 Number of parameter data words (PCP)
Switches: 5 and 6
( 36)
 Baud rate
Switch: 8
( 37)
Lenze setting: All switches "OFF"
Switch 7 has no function.

Note!
To make any modified settings take effect, switch the voltage supply of the
communication module off and then on again.
Initial switch-on
( 39)
The settings can also be made via codes:
• All DIP switches = "OFF" (Lenze setting):
At switch-on, the configuration from codes C13892 , C13893 , and C13894
becomes active.
• At least one DIP switch = "ON":
At switch-on, the values are accepted from the switch positions.
The data word sum (PD + PCP) may maximally amount to 10 words.
