Leica SmartTouch™ Manual 57
Control of the Leica TL RCI Transmitted Light Base
The quantity of light for the Leica "TL RCI"
transmitted light base can be adjusted in
two ways.
Ϙ
If the brightness is controlled via the light
intensity, the color temperature changes
along with the brightness.
Ϙ
If the brightness is controlled via the
mechanical diaphragm, the color tempera-
ture remains constant. When using a Leica
digital camera, no additional white balance
is necessary.

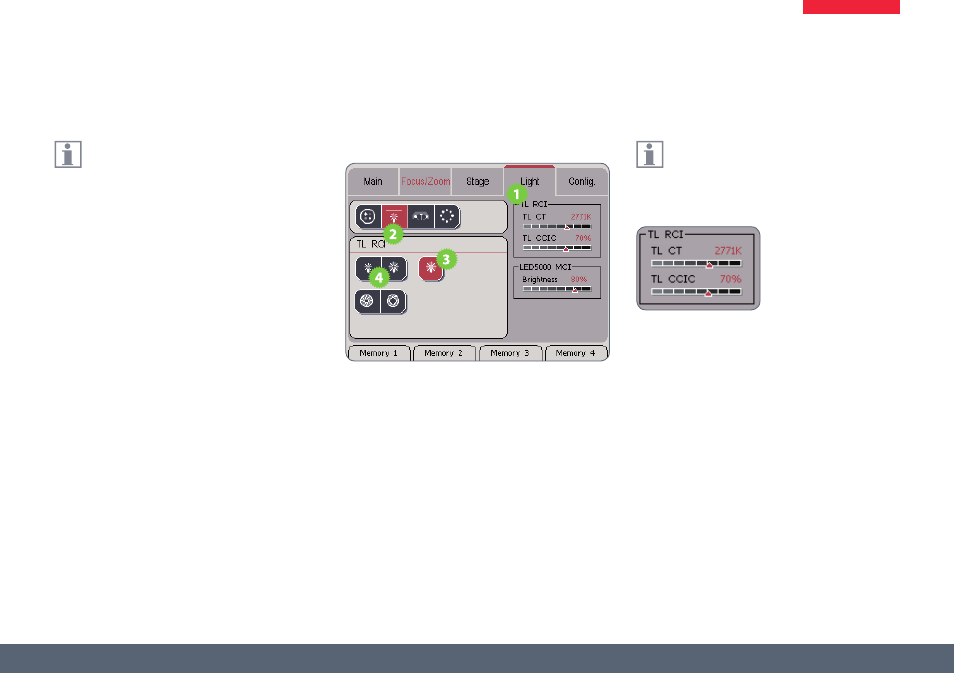

Adjusting the illumination
1. Touch the "Light" tab.
2. In the upper area, touch the symbol of the
transmitted light base.
3. Switch on the illuminator.
4. Touch the lamp symbols to adjust the inten-
sity of the light.
The color temperature changes along
with the brightness. The current color
temperature is displayed on the Leica Smart-
Touch™.
(Continued on next page)
