Leica SmartTouch™ Manual 39
Manually defining the zero point
To measure the distance between two motor-
ized focus positions, proceed as follows:
1. Move the motorized focus into the position
that is to be the zero point.

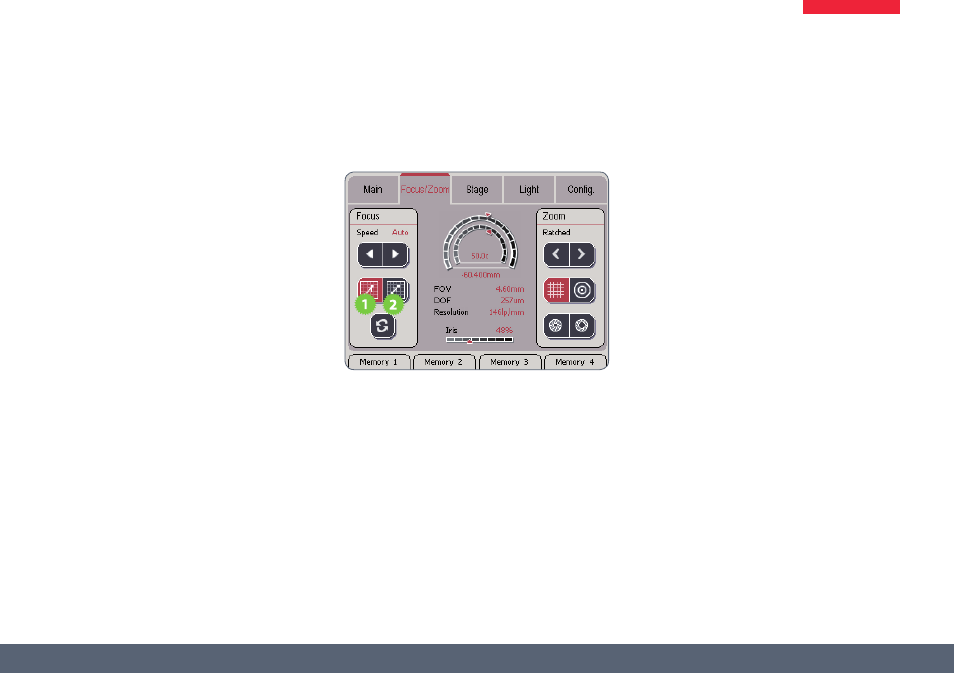

2. Touch the "Relative reference point"
symbol. The display shows the distance
between the current position and the zero
point defined by the user.
(Continued on next page)
Focus Settings (cont'd.)
Changing the reference coordinates
1. Touch the "Absolute reference point"
symbol. The display shows the distance
between the current position and the
uppermost position that can be assumed
by the motorized focus.
