Contact wheel – Kinze 3600 Lift and Rotate Planter (70 CM) Rev. 6/14 User Manual
Page 84

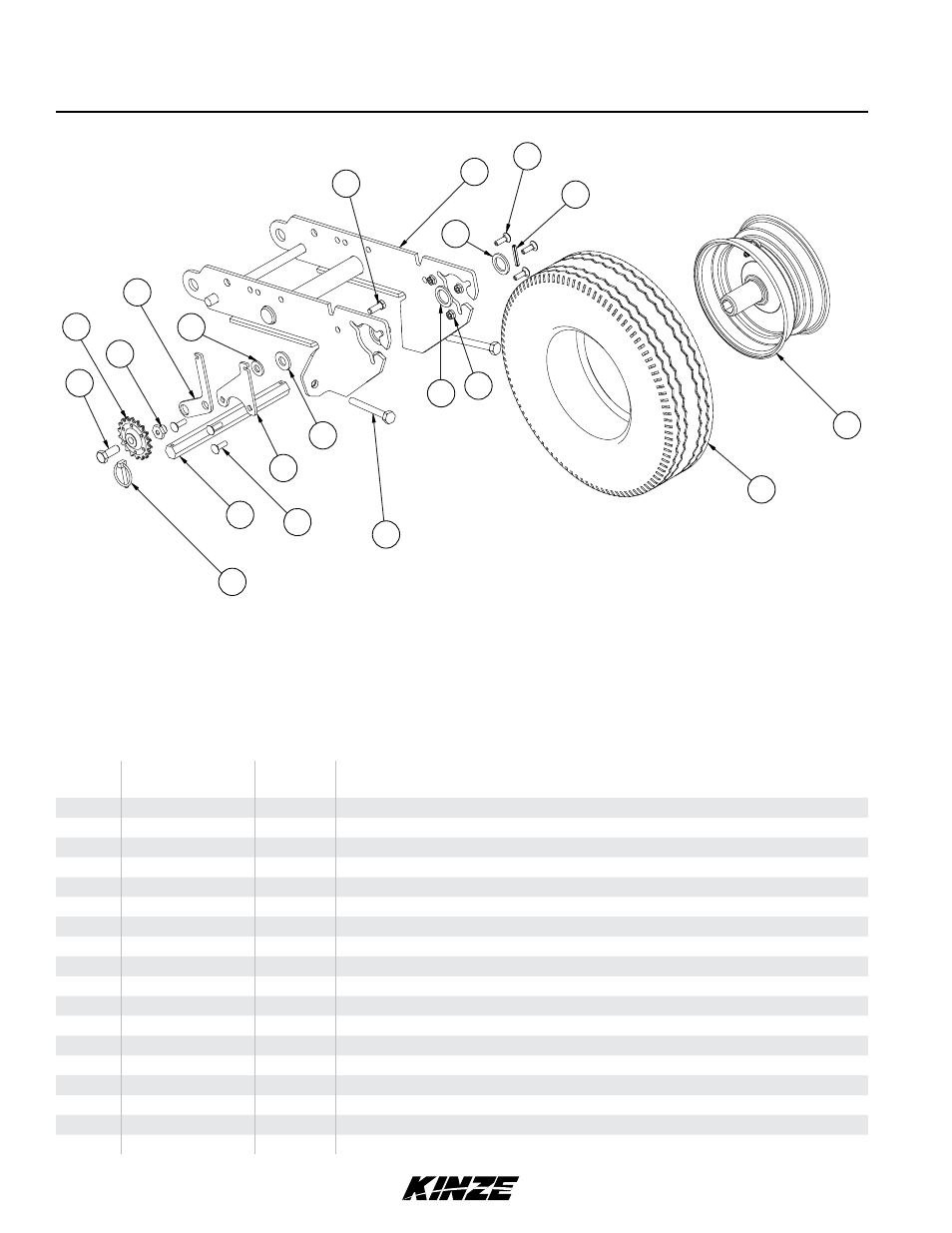

Contact Wheel
5
3
11
6
1
18
17
16
14
13
15
4
8
10
9
6
12
10
7
2
ITEM
PART NO.
QTY.
(Per Assy.)
DESCRIPTION
1
GA7372
2
Wheel Arm
2
G10001
2
Hex Head Cap Screw, ⅜"-16 x 1"
3
GD7688
4
Rim
4
GD26839
2
Spacer
5
GD4700
2
Tire, 4.80" x 8", 4 Ply, Rib Implement (Specify Brand**)
6
G10303
12
Carriage Bolt, 5⁄16"-18 x 1"
7
G10620
12
Serrated Flange Nut, 5⁄16"-18
8
GD26499
2
Wheel Mount Hex Shaft
9
G10602
2
Spring Pin, ¼" x 1½"
10
G10233
6
Machine Bushing, 1½" x 1⁄32", 10 Gauge (.1345")
11
GD2558
2
Lynch Pin, ¼"
12
G10890
4
Hex Head Adjusting Bolt, ½"-13 x 4", Grade 2
13
GD26477
2
Idler Plate
14
GA17975
2
Idler Arm
15
G11389
2
Flat Washer, ½" Plated SAE
16
GD26479
2
Idler Pivot Nut
17
GA7154
2
Sprocket W/Bearing, 18 Tooth
18
G10037
2
Hex Head Cap Screw, ½"-13 x 1¼"
TM
M0249-02
Model 3600
P81
Rev. 6/14
