Kinze 3600 Lift and Rotate Planter (70 CM) Rev. 6/14 - Manual (Page 127)

2
2
1
1
4
3
4
3
5
5
6
7
8
7
8
6
A4
B4
Transport Latch Cylinder
Tongue Lock Clyinder
Rotation Cylinder
Tongue Cylinder
Valve Block
Located
on Hitch
B6
A6
C2
A2
B2
D2
B6
A6
B2
A2
A1
B1
B4
A3
C2
B3
D2
C1
D1
B5
A4
A5
A5
B5
C1
A1
D1
B1
A3
B3
V11 V10 V9
V14
V13
V12

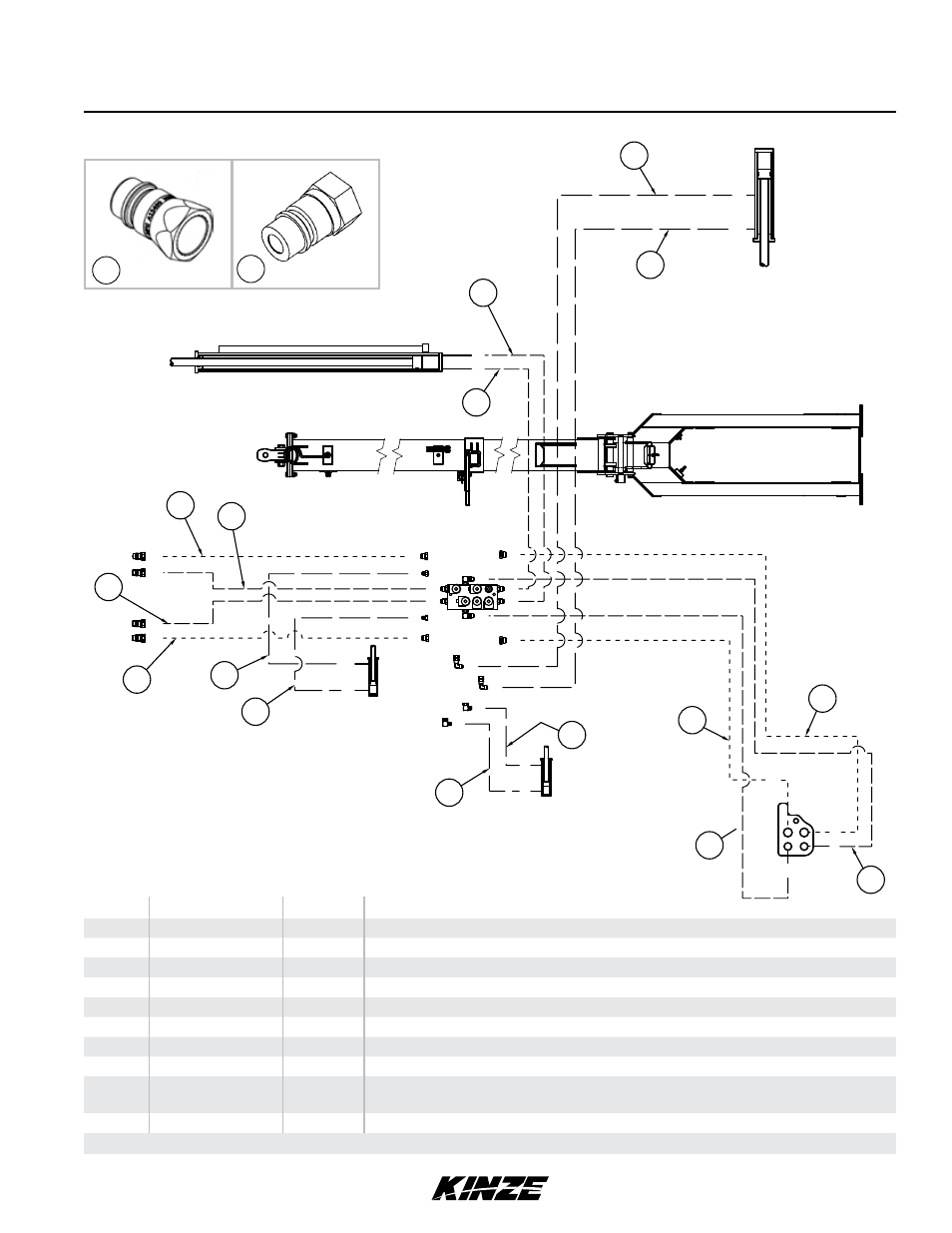

Hydraulic Hoses and Fittings on Hitch
(IP1233-3)
ITEM PART NO. QTY. DESCRIPTION
1 *A1116 2 Hose Assembly, ¼" x 136"
2 *A1053 2 Hose Assembly, ⅜" x 72"
3 *A1444 2 Hose Assembly, ½" x 250"
4 *A18300 2 Hose Assembly, ⅜" x 250"
5 *A1110 2 Hose Assembly, ¼" x 150"
6 *A1139 2 Hose Assembly, ¼" x 40"
7 *A1041 2 Hose Assembly, ⅜" x 130"
8 *A1478 2 Hose Assembly, ½" x 128"
9 GA15499
GD25522 -
- Special Pioneer Coupler, Zero Pressure Return
Hydraulic Tip Cover
10 GD4086 - ISO Coupler
*Hydraulic hose is not stocked by Kinze Repair Parts, but can be made available on a special order basis. Call for quote.
9 10
Model 3600 M0249-02
Rev. 7/13 P124
