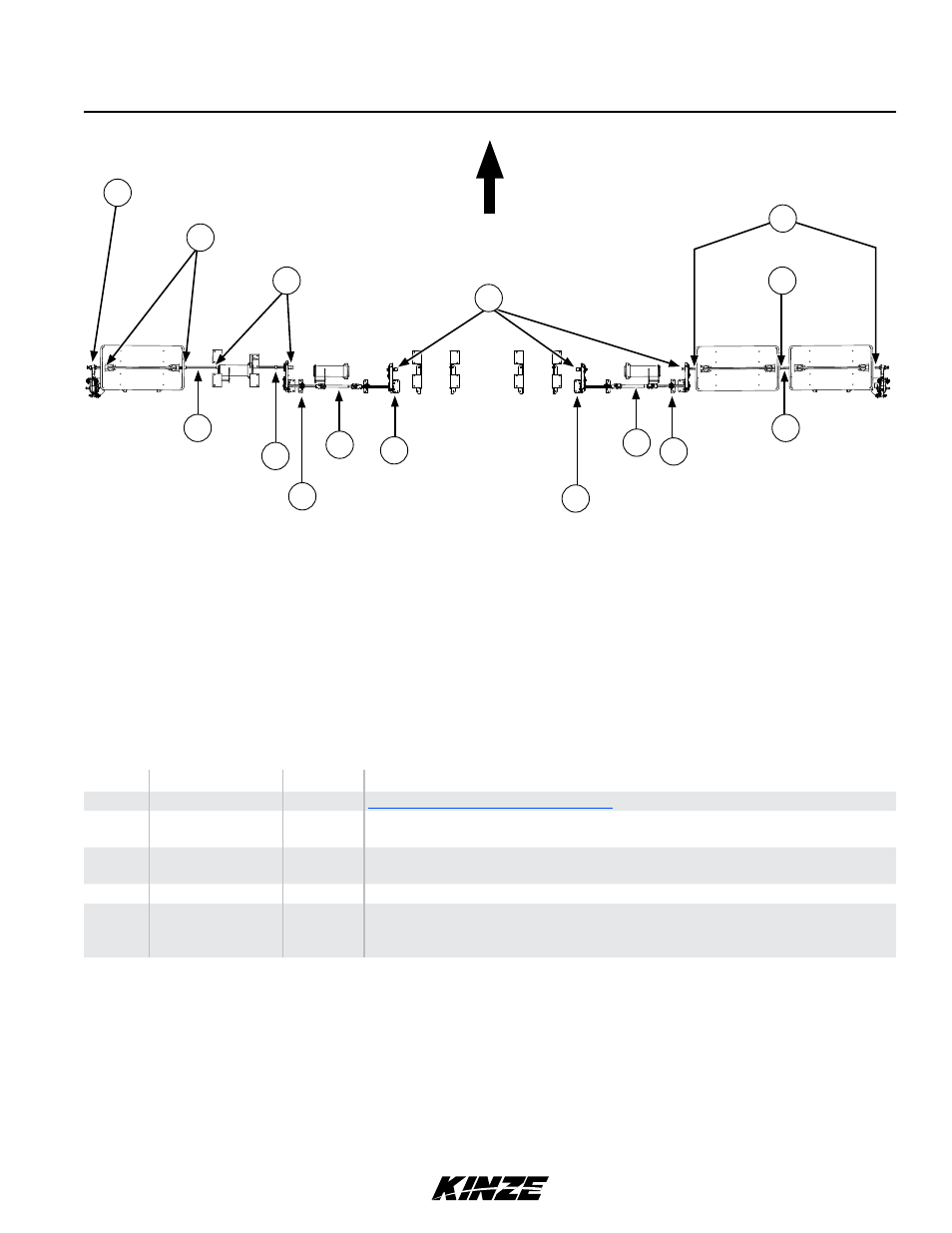

Dry Fertilizer Coupler/Shafts
ITEM PART NO. QTY. DESCRIPTION
1 --- - See “Dry Fertilizer Drive” on page P143
2 GD7867
G10602 - Coupler, 3"
Spring Pin, ¼" x 1½"
3 GD5886
G10602 -
- Coupler, 1¾"
Spring Pin, ¼" x 1½"
4 GD2548-7.375 - Hex Drill Shaft, ⅞" x 73/8"
5 GA18385
GR2149
GR2150 -
-
- U-Joint, 12½" Assembly
Inner Profile
Inboard and Outer Profile Yoke
Direction
of Travel
1
2
2
2
3 3
4 4
3
1
1
1
1
5 5
Model 3600 M0249-02
Rev. 6/14 P148
