Kinze 3600 Lift and Rotate Planter (70 CM) Rev. 6/14 - Manual (Page 64)

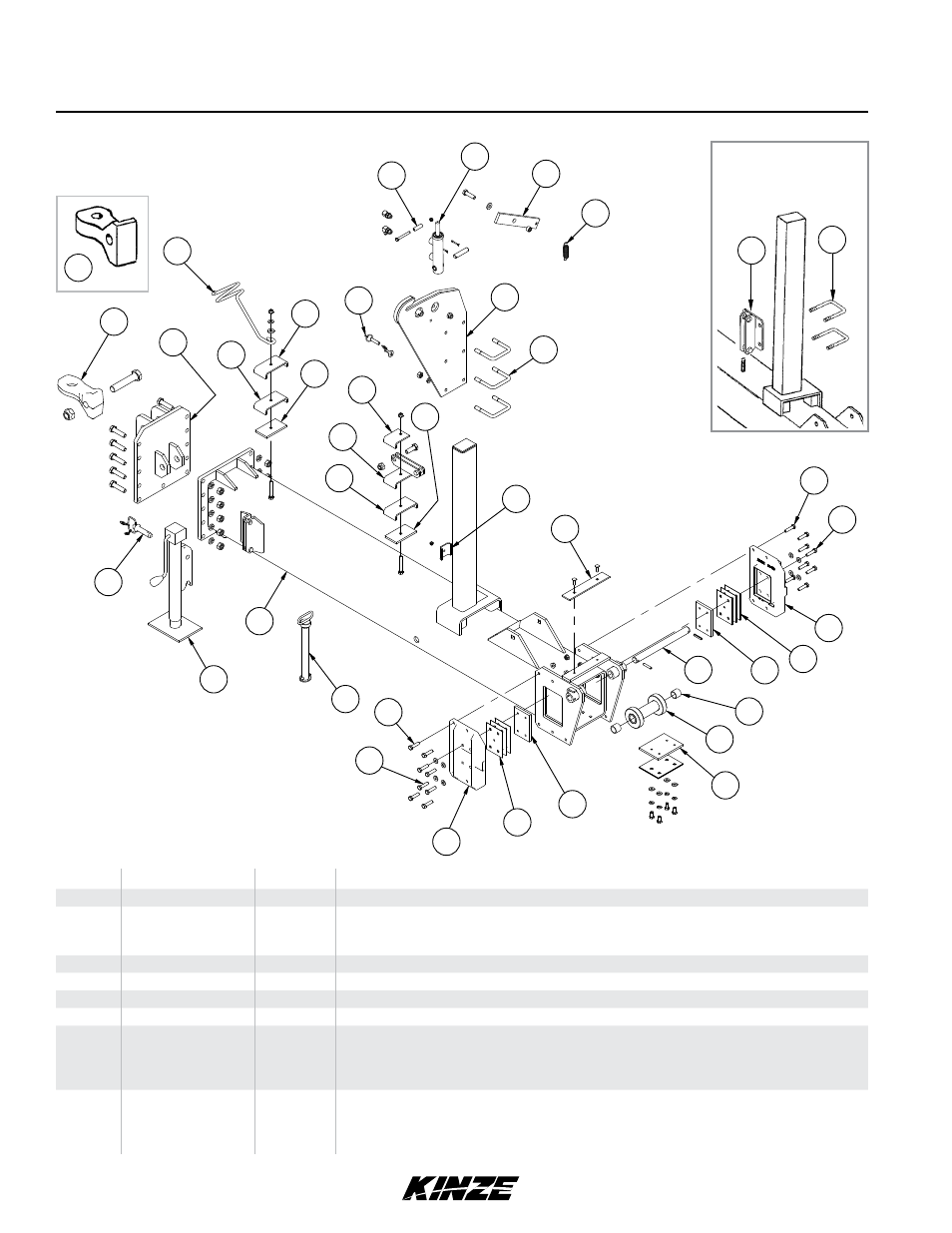

Outer Hitch
(IP1226)
Planters Equipped
With PTO Pump And
Oil Cooler Option
30
31
32
1
4
6
18
9
11
14
15
16
12
24
25
2
19
5
10
17
3
7
7
8
7
8
13
20
21
23
22
20
21
22
23
26
26
28
29
27
ITEM PART NO. QTY. DESCRIPTION
1 A18288 - Outer Hitch, 16 Row (Non-Stock Item)
2 GA13986
GR2152
GR2153
1
1
1
Jack Assembly Complete
Crank Repair Kit
Bevel Gear Set, Includes: (2) Bevel Gears, (1) Gear Pin, (1) Groove Pin
3 GA4995 1 Detent Pin Assembly
4 GB0237 1 Clevis, Single (1¾" Hole)
G10169 1 Hex Head Cap Screw, 1¼"-7 x 6"
G10157 1 Lock Nut, 1¼"-7
5 GA9837
G10028
G10231
G10105
1
11
11
11
Hitch Mount, 16 Row 30"
Hex Head Cap Screw, ¾"-10 x 3"
Lock Washer, ¾"
Hex Nut, ¾"-10
6 GD8260
G11391
G11389
G10111
1
1
1
1
Hose Holder
Flat Washer, ⅝", SAE
Flat Washer, ½", SAE
Lock Nut, ½"-13
TM
M0249-02 Model 3600
P61 12/12
