Kinze 3600 Lift and Rotate Planter (70 CM) Rev. 6/14 - Manual (Page 101)

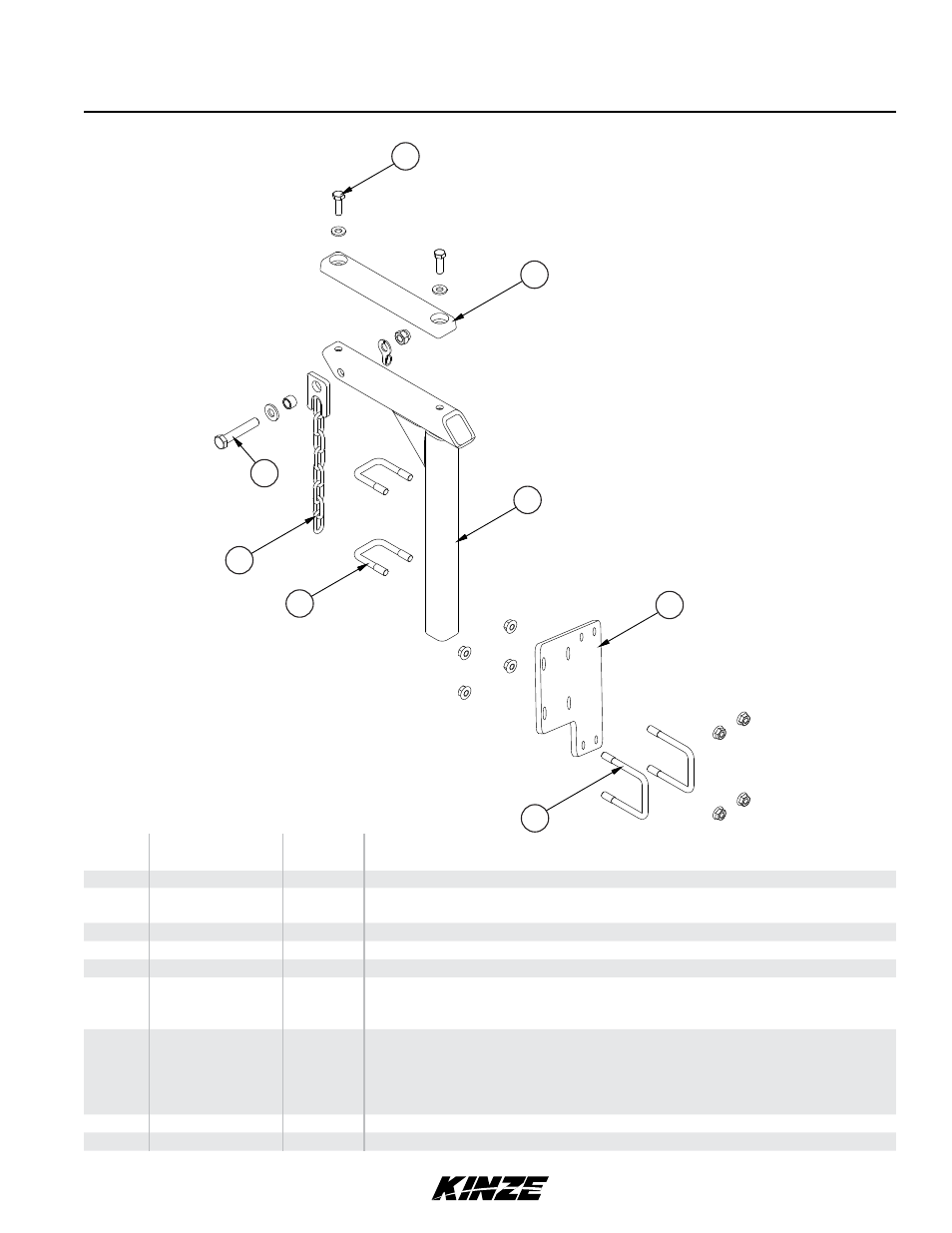

Row Marker Stand
ITEM PART NO. QTY.
(Per Assy.)
DESCRIPTION
1 GA14402 1 Marker Stand
2 GD2721
G10071 2
4 U-Bolt, 2" x 2" x ½"-13
Serrated Flange Nut, ½"-13
3 GD4743 2 U-Bolt, 3" x 3" x ½"-13
G10071 4 Serrated Flange Nut, ½"-13
4 GA9088 1 Molded Stop, 12¼" Long
5 G10017
G11389
G10111 2
2
2 Hex Head Cap Screw, ½"-13 x 1½"
Flat Washer, ½" SAE
Lock Nut, ½"-13
6 G10013
G11391
GB0218
GD10088
G10107 1
1
1
1
1 Hex Head Cap Screw, ⅝"-11 x 3½"
Flat Washer, ⅝" SAE
Bushing, 21∕32" I.D. x ⅞" O.D. x 19∕32" Long
Special Washer
Lock Nut, ⅝"-11
7 GA13340 1 Chain Lockup
8 GD26482 - Marker Stand Plate
L.H. Shown
1
8 2
3
4
5
6
7
Model 3600 M0249-02
Rev. 7/13 P98
