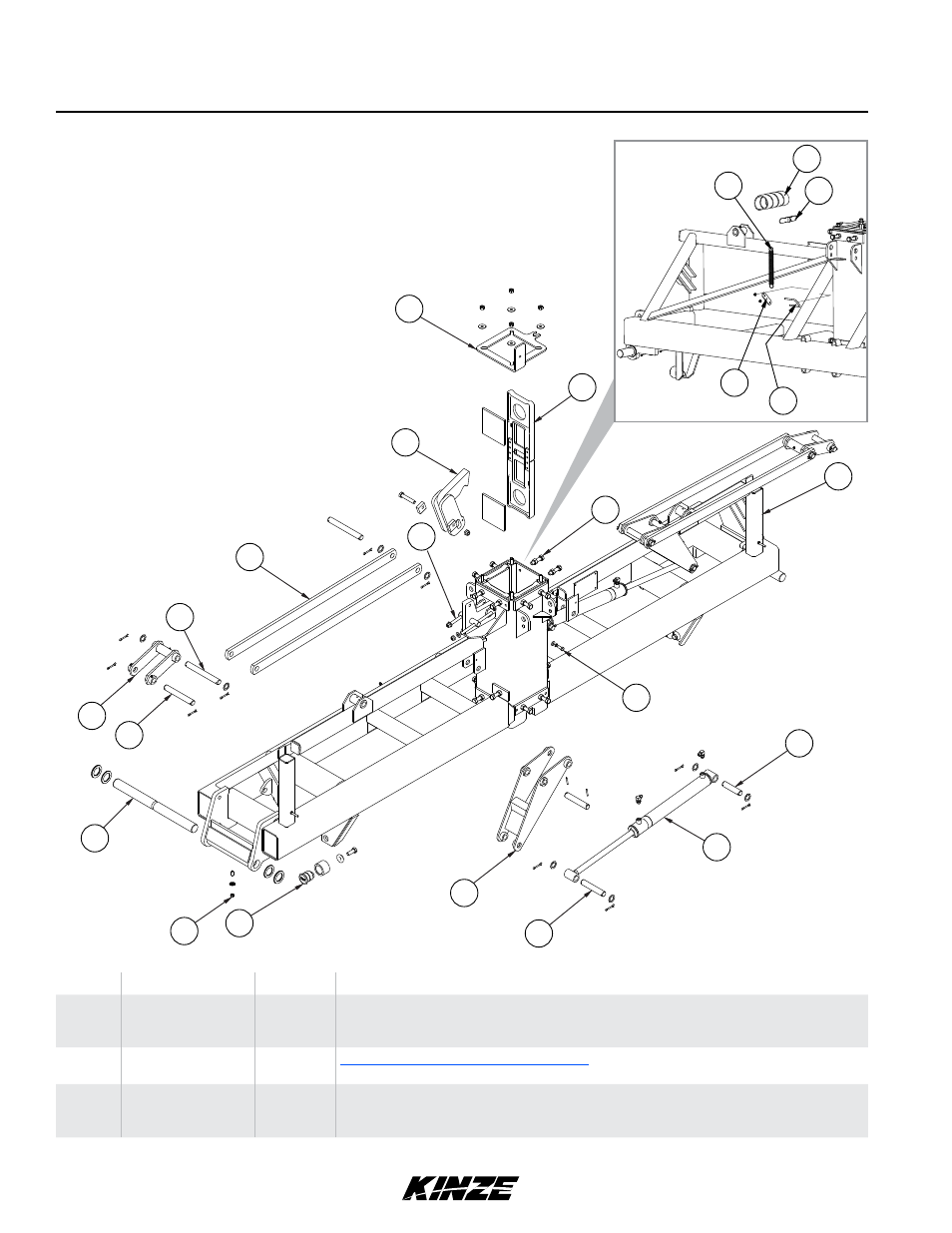

Kinze 3600 Lift and Rotate Planter (70 CM) Rev. 6/14 - Manual (Page 72)

Center Frame
(IP1229)
19
20
22
23
21
1
2
3
4
5
8
6
7
9
11
10
12
13
15
18
16
17
14
ITEM PART NO. QTY. DESCRIPTION
1 GA18281
GA6929
GA6928 1
1
1 Center Frame W/Cam Follower Mounts (Non-Stock Item)
Cam Follower Mount, L.H.
Cam Follower Mount, R.H.
2 GA8899
G6801-08 2
4 See “Wing Lock Cylinder” on page P105
Elbow W/O-Ring, 90°, ¾"-16 Male JIC To O-Ring
3 GD0826
G10159
G10460 2
4
4 Pin, 1¼" x 5½"
Washer, 1⅞"
Cotter Pin, ¼" x 2"
