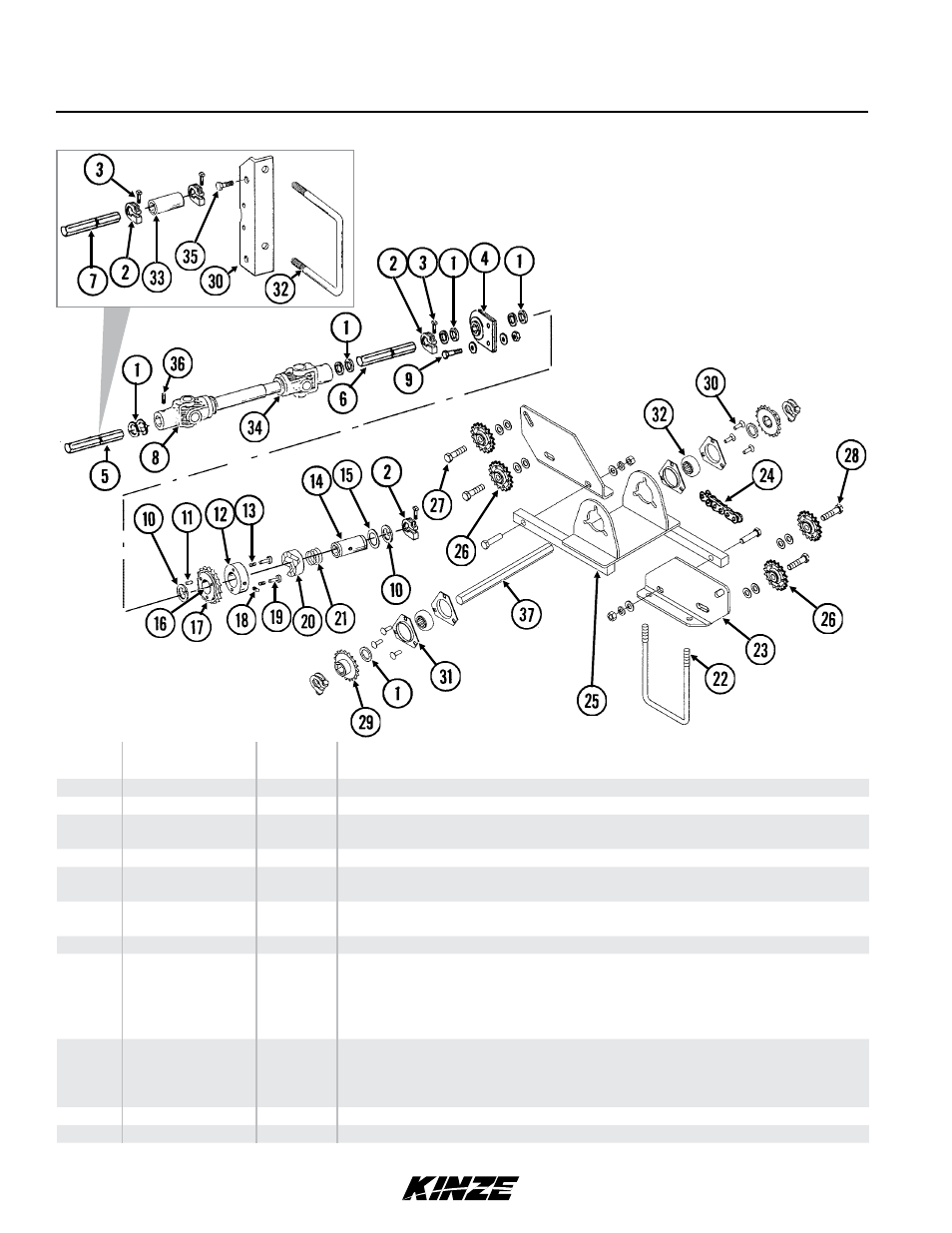

Kinze 3600 Lift and Rotate Planter (70 CM) Rev. 6/14 - Manual (Page 52)

ITEM PART NO. QTY.
(Per Side)
DESCRIPTION
1 G10233 - Machine Bushing, 1", 10 Gauge (As Required)
2 GD11045 - Lock Clamp
3 G10130
G10923 -
- Square Head Machine Bolt, 5∕16"-18 x 1¾"
Flange Nut, 5∕16"-18, No Serration
4 GA2180 - Hanger Bearing, ⅞" Hex Bore
5 GD0914-99
GD0914-60 -
- Hex Shaft, ⅞" x 99" (No Holes), R.H. Side
Hex Shaft, ⅞" x 60" (No Holes), L.H. Side
6 GD0914-90
GD0914-100 -
- Hex Shaft, ⅞" x 90" (No Holes), R.H. Side
Hex Shaft, ⅞" x 100" (No Holes), L.H. Side
7 GD0914-25 - Hex Shaft, ⅞" x 25" (No Holes), 16 Row 30" W/Even-Row Push Row Unit
8 GA18276
GR1557
GR2148
GR1294
GR2151 -
-
-
-
- U-Joint W/Grease Fitting, Female, 10¼" Long
Grease Fitting, 45°, Metric
Inboard and Outer Profile Yoke
Cross And Bearing Kit
Yoke, ⅞" Hex
9 G10004
G11387
G10229
G10101 -
-
-
- Hex Head Cap Screw, ⅜"-16 x 1¼"
Flat Washer, ⅜" SAE
Lock Washer, ⅜"
Hex Nut, ⅜"-16
10 G10496 2 External Inverted Snap Ring, 1½"
11 G10968 1 Spring Pin, 5∕32" x 7∕16"
(RU134/EXP21)
Interplant Push Row Unit Drive
