ASW-WP Installation Guide

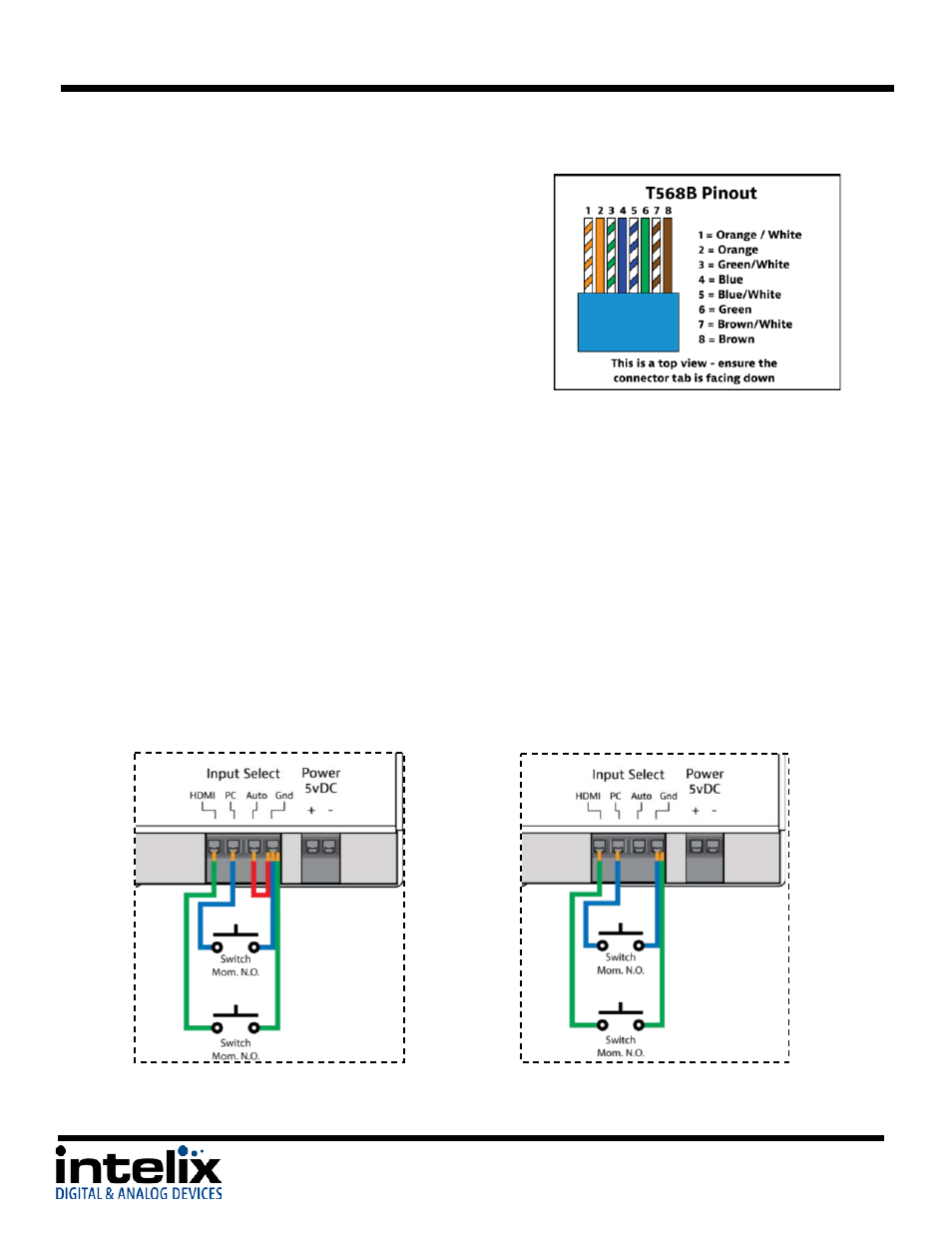

Twisted Pair Output
The ASW-WP includes an HDBaseT Lite extender output.
When used in conjunction with compatible HDBaseT
receivers (see Tech Specs), the signal may be transmitted
up to 60m (200’) away. Additionally, the user may
connect via RS232 to the HDBaseT receiver, and control
the ASW-WP. Connection should be made using Cat6
unshielded or shielded cable. Please terminate both
ends using EIA/TIA-568B crimp pattern, as shown in this
diagram.
Contact Closure Inputs
The ASW-WP includes dry contact closure (C.C.) inputs to allow different types of manual
switching. These C.C. inputs are intended to be connected directly to relays or switches. To
activate, simply short the associated terminal to the “GND” terminal. The ASW-WP ships from
the factory with a jumper in place between the “AUTO”, and “GND” terminals; this should remain
in place if you wish the unit to switch automatically when a video signal is present. Normally
open, momentary switches should be used.
Fig. 1 – Auto-switching with
manual override.
Fig. 2 – Manual switching
mode.
