Intelix AVO‐USB‐C
Installation Manual
Introduction
When used with a compatible transmitter, the Intelix AVO‐USB‐C extender transmits low
and full speed USB signals over twisted pair cabling. The unit extends low speed USB 1.0
and 2.0 signals up to 330 feet, and full speed USB 1.0 and 2.0 signals up to 100 feet.

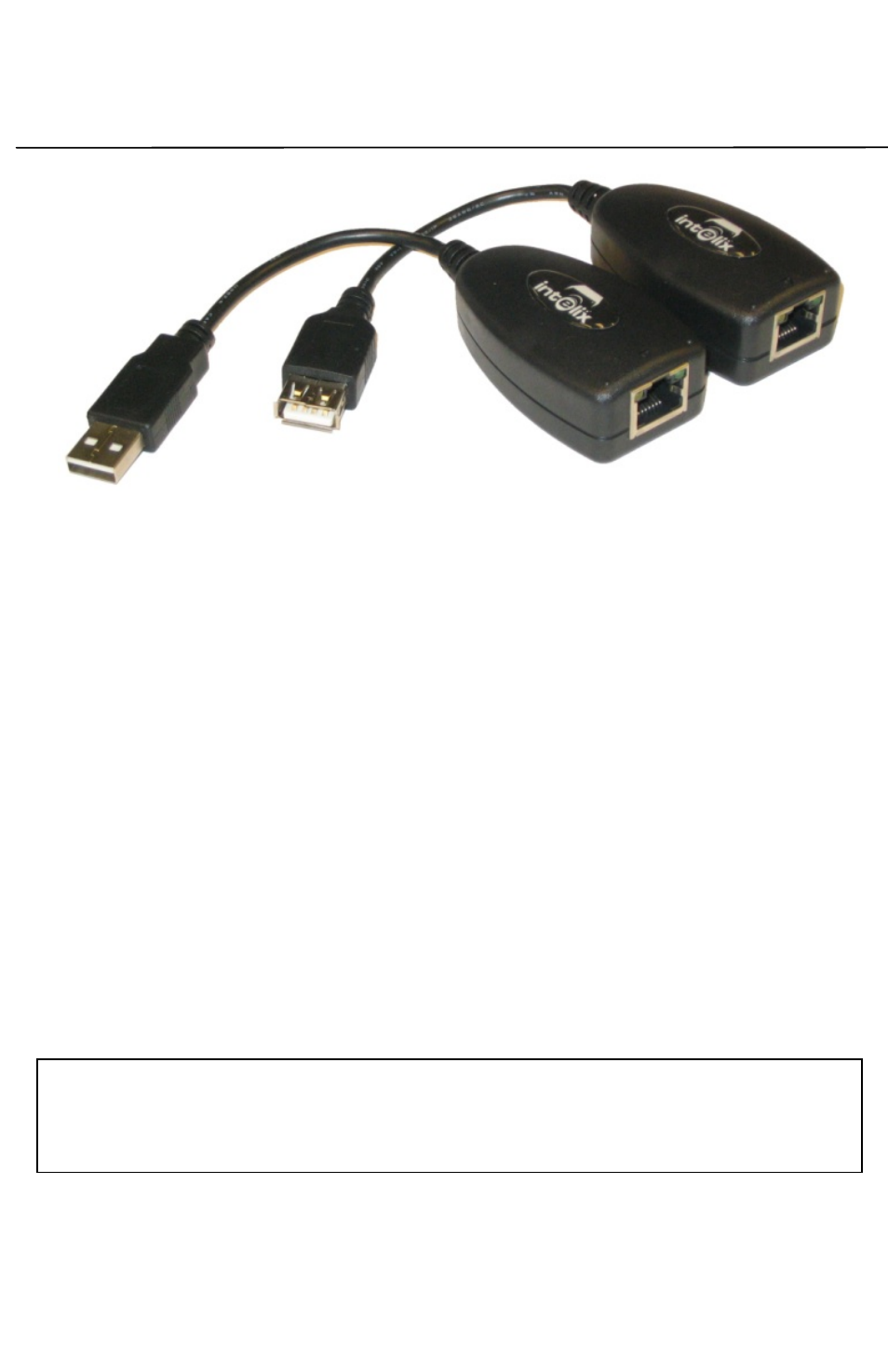

Convenient connector dongles allow direct connection to the host and client devices,
facilitating a clean, low‐profile installation.
The Intelix AVO‐USB is plug‐and‐play and does not require driver software.
Pre‐Installation
The AVO‐USB features shielded RJ45 connectors, which are provided as an option in
harsh electrical environments, such as installations with large motors or cable runs near
sources of interference. In such environments, shielded twisted pair cable (STP) may
provide additional noise immunity. When using STP, ensure the shield on both ends of the
cable run is terminated to a shielded RJ45 connector.
Caution: Do not attempt to disassemble or alter the extender housing.
There are no user-serviceable parts inside the unit. Doing so will void your
warranty.
