ASW-WP Installation Guide
RS232 Connection

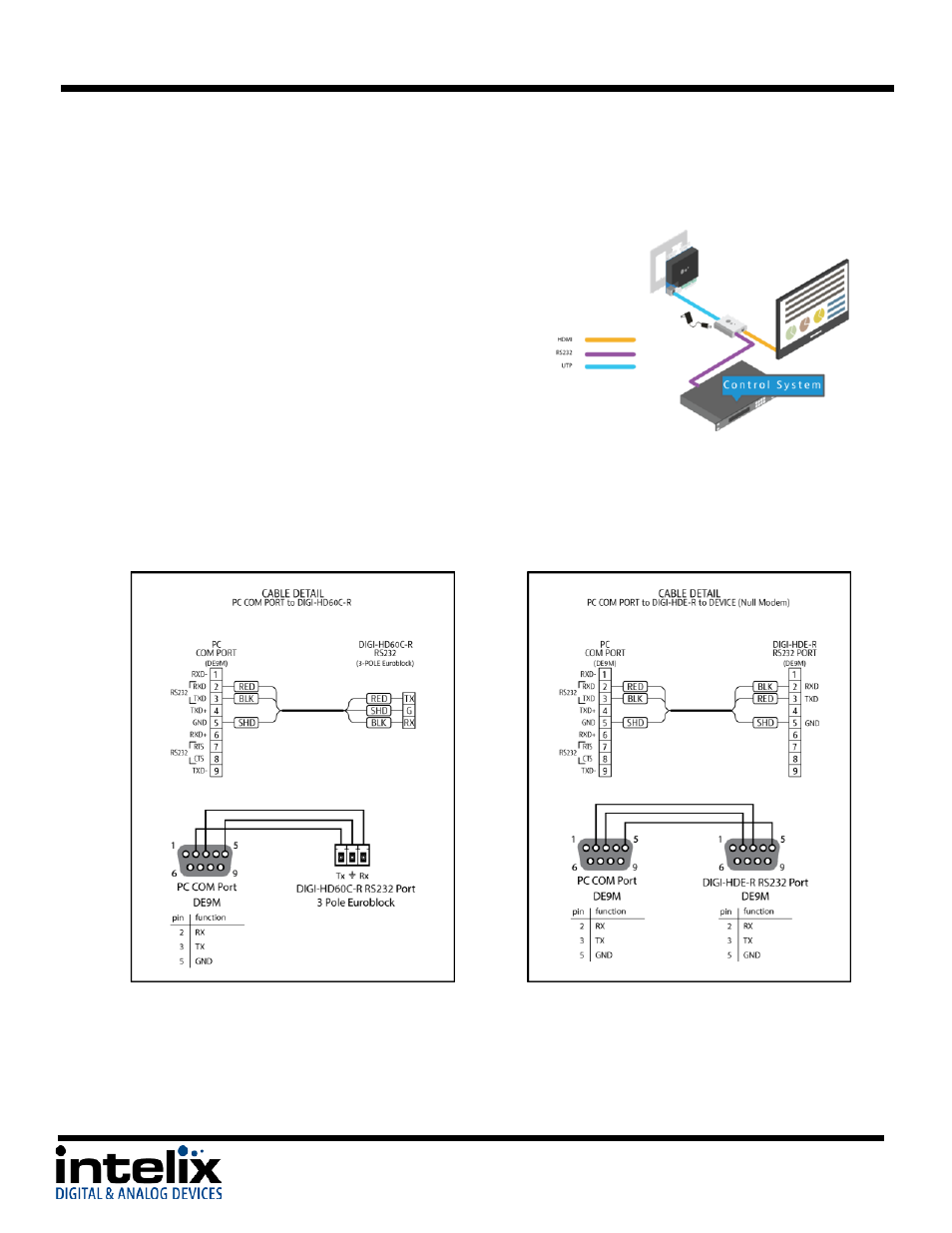

The RS232 control port requires a standard straight-through serial cable for operation. This
diagram shows the connections required for controlling
the ASW-WP with a 3
rd
party control system:
- 9600 baud
- 8 Data Bits
- 1 Stop Bit
- Parity = none
Below are some diagrams to assist you in the pin out between standard PC COM ports and
HDBaseT receivers that are compatible with the ASW-WP:
14
