ASW-WP Installation Guide
This table shows how the DIP switches correlate with the EDID table:
Setting
Off, Off, Off (Left, Left, Left)
EDID Pass-through
On, Off, Off (Right, Left, Left)
1080p, 2ch audio
On, On, On (Right, Right, Right)
1920x1200, 2ch audio
On, Off, On (Right, Left, Right)
1280x800, 2ch audio
On, On, Off (Right, Right, Left)
1024x768, 2ch audio
HDCP Management
The ASW-WP offers advanced HDCP management to allow greater compatibility with other
devices. The output will always be encrypted or unencrypted, following the status of the source
content (if the content is encrypted, the output of the HDBaseT receiver will be encrypted; if the
content is unencrypted, the output of the HDBaseT receiver will be unencrypted).
HDMI Input
The ASW-WP ships with the HDMI input
set to “HDCP compliant”. This will work
for most applications; however, the
ASW-WP allows you to set the input to
“Not HDCP compliant”. This is important
for systems using not-compliant sinks
(such as a video conferencing or

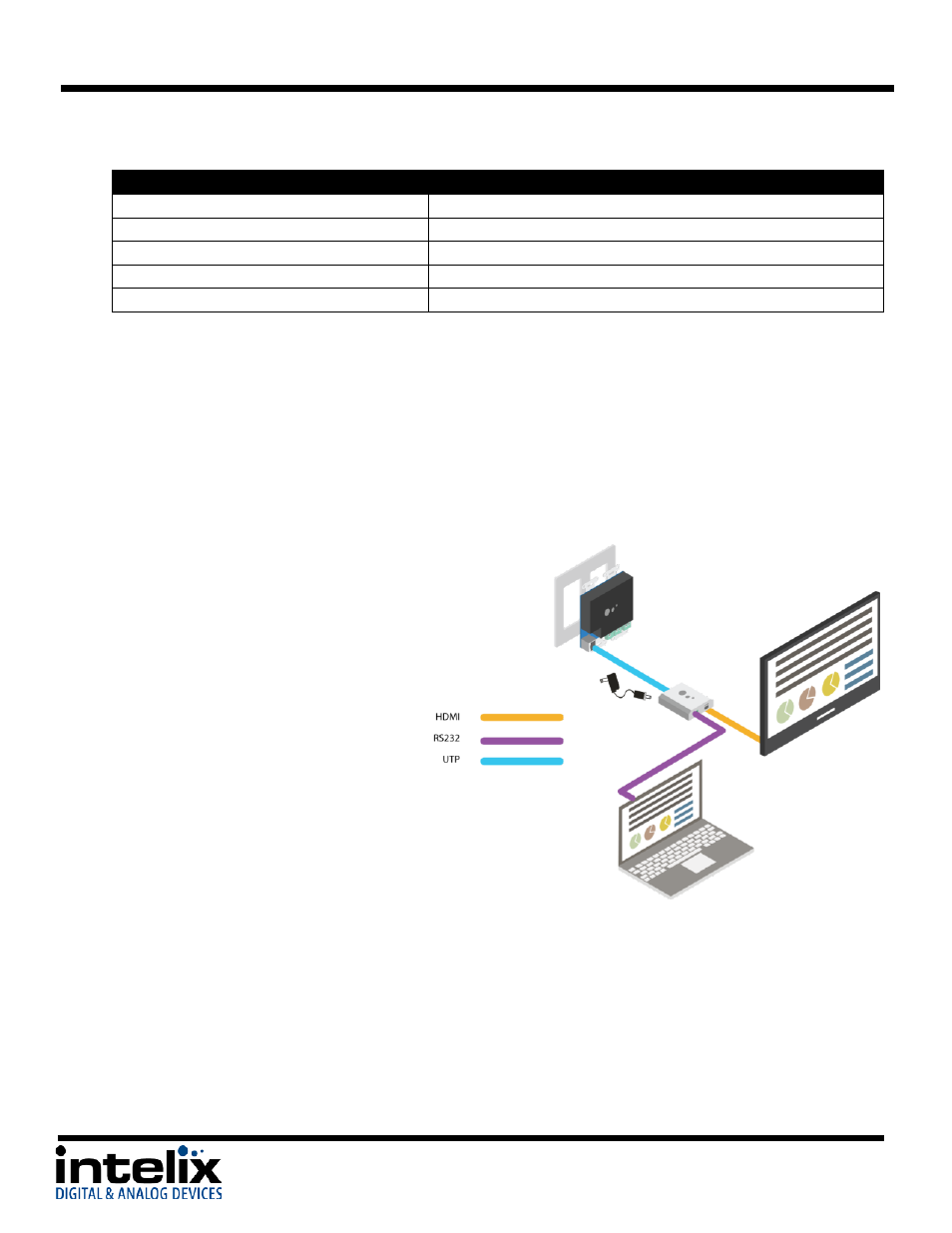

recording system). To set the unit to
“Not HDCP compliant”, simply connect
via RS232 to the HDBaseT receiver as
shown in this diagram, and send the
RS232 command as described on p. 15.
VGA Input
The VGA input will convert analog video to digital and will not add encryption to the content.
For more information about HDCP, please visit www.digital-cp.com
Low Power Mode
12
