RQCM – RESEARCH QUARTZ CRYSTAL MICROBALANCE

THEORY OF OPERATION

5-14

mechanism for canceling out the imaginary current effectively putting the center of the crystal

back on the real axis. The true series resonant frequency of the crystal is then the point where the

conductance circle crosses the real axis. This is the frequency at which the inductive and

capacitive impedance’s in the L, R & C branch cancel out and the crystal looks like a pure

resistance of value R.

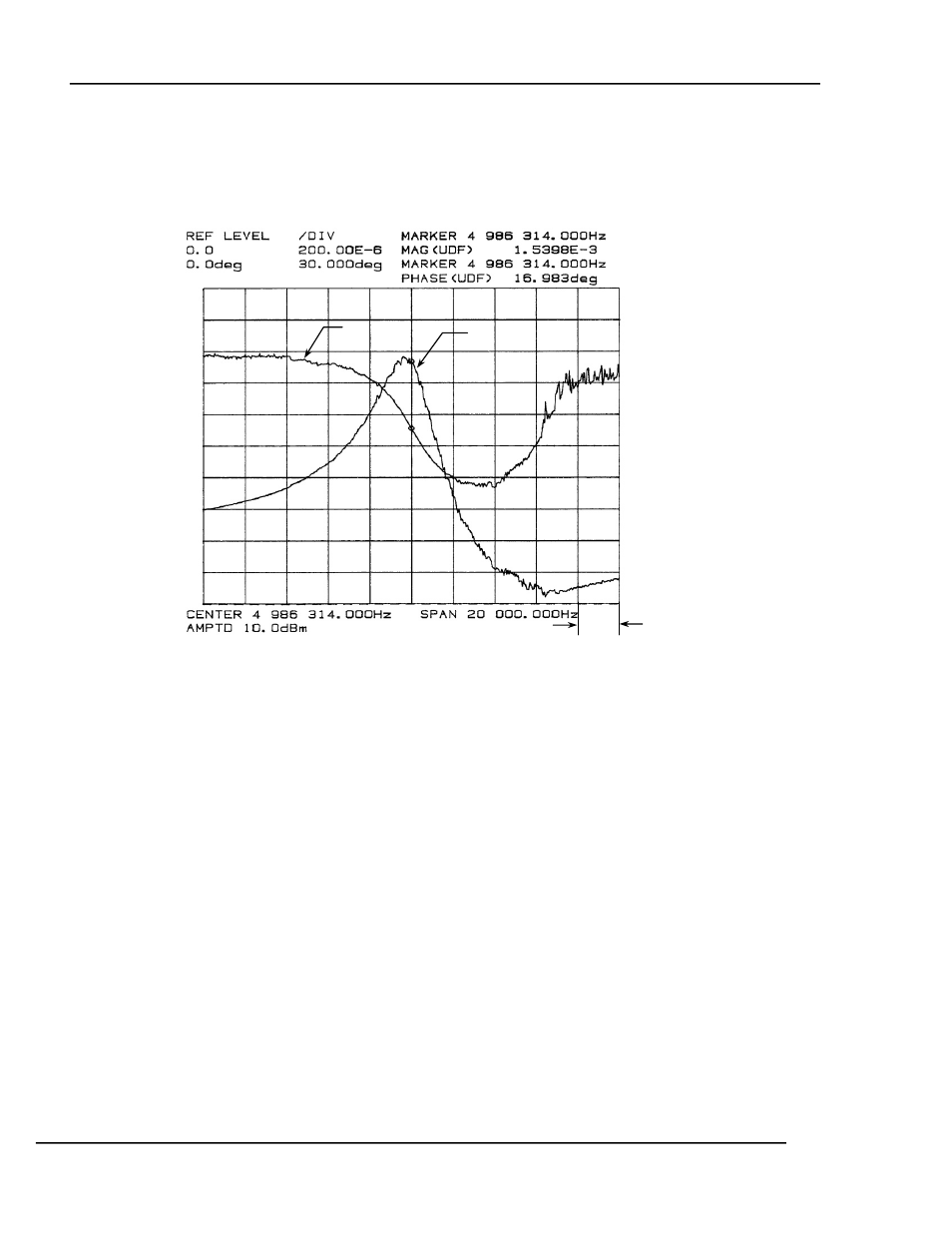

Figure 23 Admittance vs. Frequency, Magnitude and Phase of Low Q Crystal

1.6

1.4

1.2

1.0

0.0

0.6

0.4

0.2

0

90

60

30

0

-30

-60

-90

MAGNITUDE

X10

-3

SIEMENS

PHASE

DEG

MAGNITUDE

PHASE

2 KHz
