3.
USER FUNCTIONS
Display
T
he DataFID has a graphic display for reporting detected concentrations and to guide the user through
configuration options. All functions of the DataFID will be reported on the display.
Graphic Display
The DataFID uses an 8 line graphic display. The display will always be used for reporting
detected concentration. In order to accommodate the range of concentrations the DataFID can
detect, the meter reading will be reported using one of three resolutions. A resolution of 0.01
ppm will be used for concentrations below 10 ppm, a resolution of 0.1 ppm will be used for
concentrations between 10 ppm and 999.9 ppm, and a resolution of 1 ppm will be used above
1000 ppm.

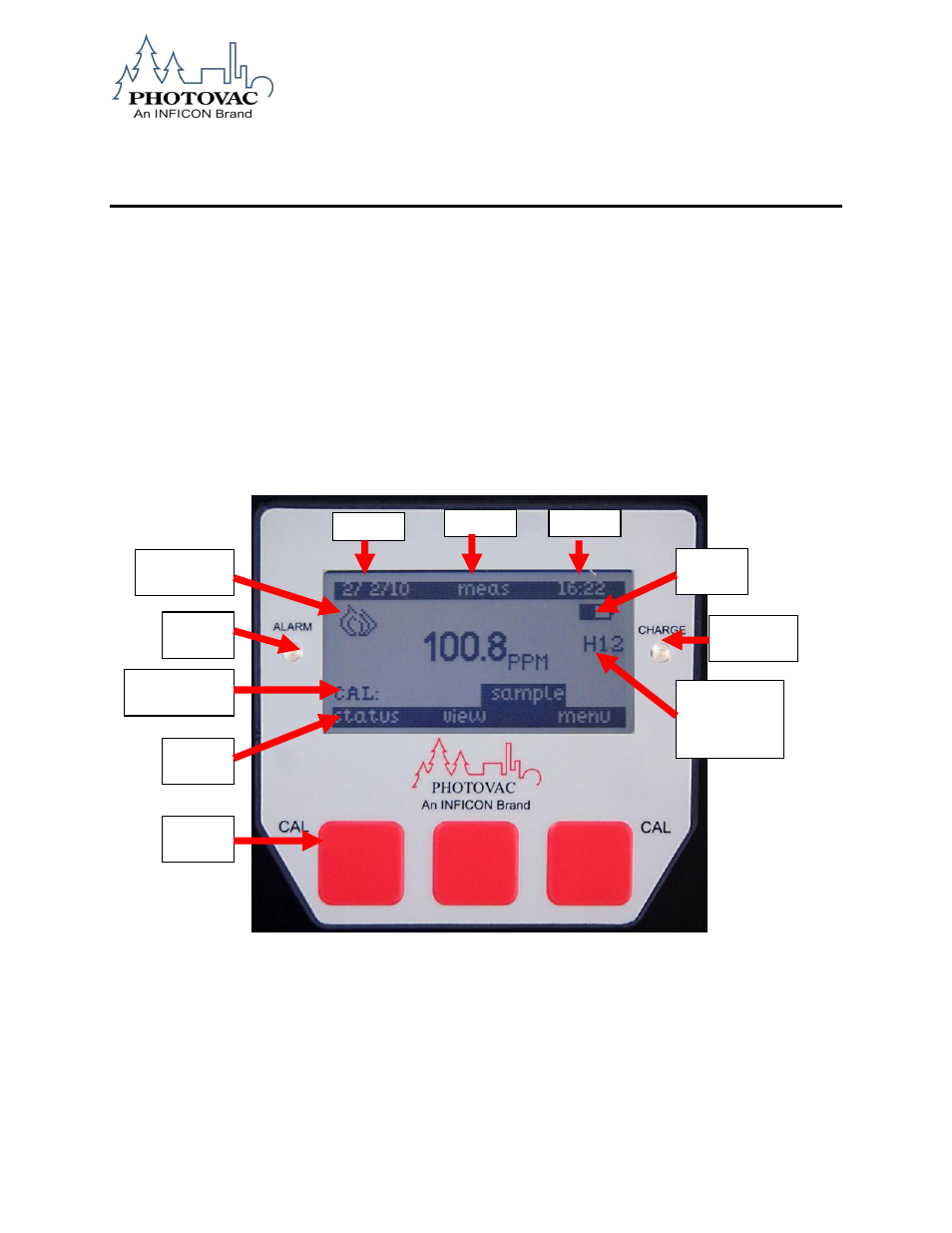

Figure 11. DataFID Display
Soft
Keys
Calibration
gas used
Hours of
hydrogen
usage
remaining
Battery
status
Flame-on
icon
Chargeing
light
Alarm
light
Date
Mode
Time
Menu
Bar
