10 • CE Source Four Zoom
English
Selecting the field angle and focusing the beam
1. Press the locking lever push button and lift the locking lever to
unlock the focus dial. See Figure 3.
2. To reduce the field angle, rotate the focus dial clockwise. To
enlarge the field angle, turn the focus dial anticlockwise.
3. Once the desired field angle is established, slide the focus dial
forward or backward to soften or sharpen the edge focus.
4. Once the field and edge are established, press the locking
lever back into position until it locks.
Gel frame retaining clip
The gel frame holder is equipped with a spring-loaded retaining
clip that prevents gel frames and accessories from falling out of
the holder.
1. Release the retaining clip by pushing it sideways. The retaining
clip pops open. See Figure 4.
2. Insert the gel frame.
3. Press the retaining clip down until it locks.
Important: Lock retaining clip before you use the luminaire.
Important: Use only the CE Source Four Zoom Colour frame
(model number 407CF).
Gel notes
For best results, always use a high quality, high temperature color
medium. ETC does not guarantee performance with low
temperature, saturated color gels.
ETC's Source Four Zoom gel frame holder extender may help
increase your gel life. (Accessory catalogue number 400PGE3)
Contact ETC or your dealer for ordering information.
50 45
38
30
25

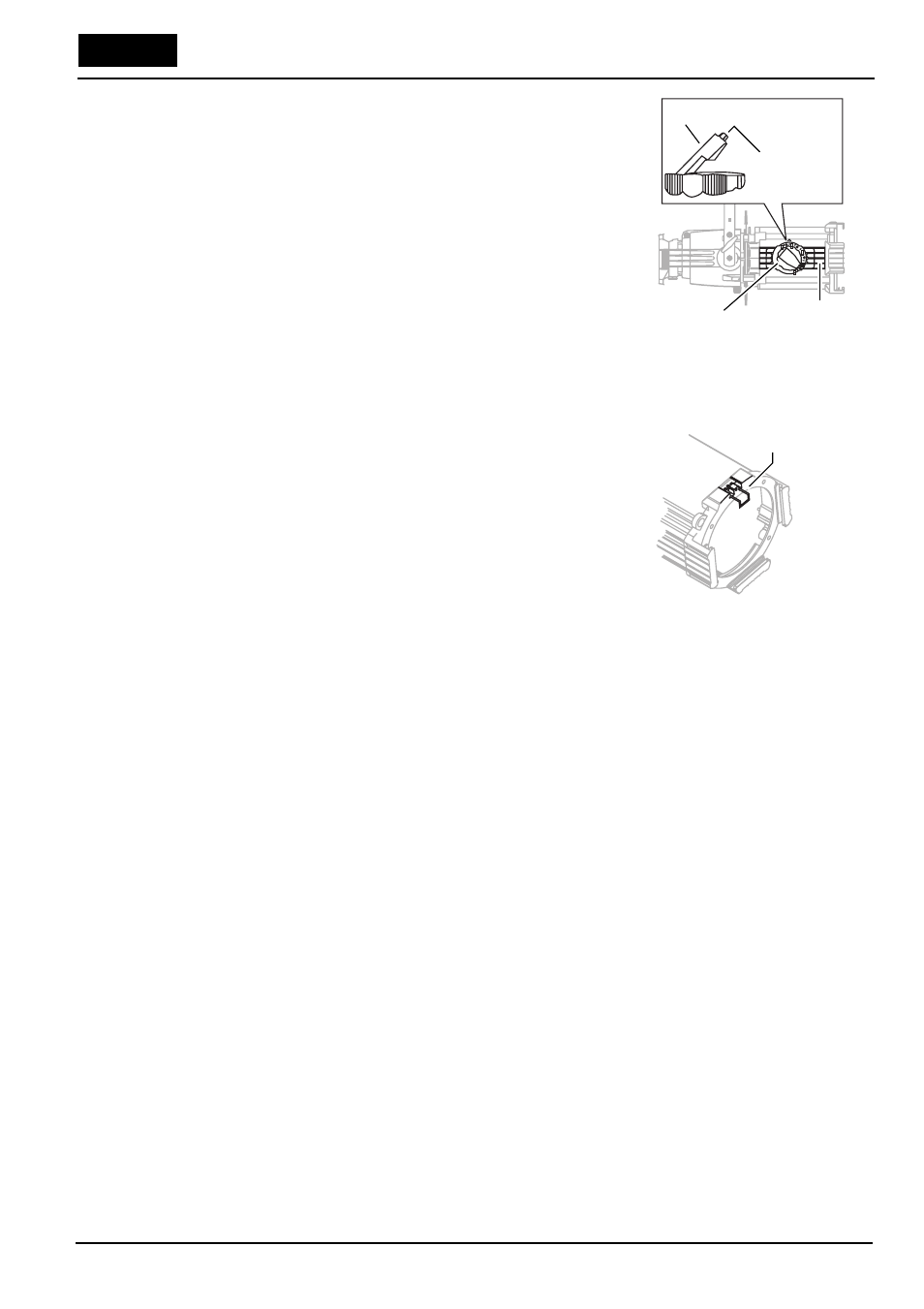

Figure 3
Locking lever
push button
Unlocked position
Light baffle Focus dial
Figure 4
Retaining clip
