1.6 Coupler Installation Procedures at Precasting Plant

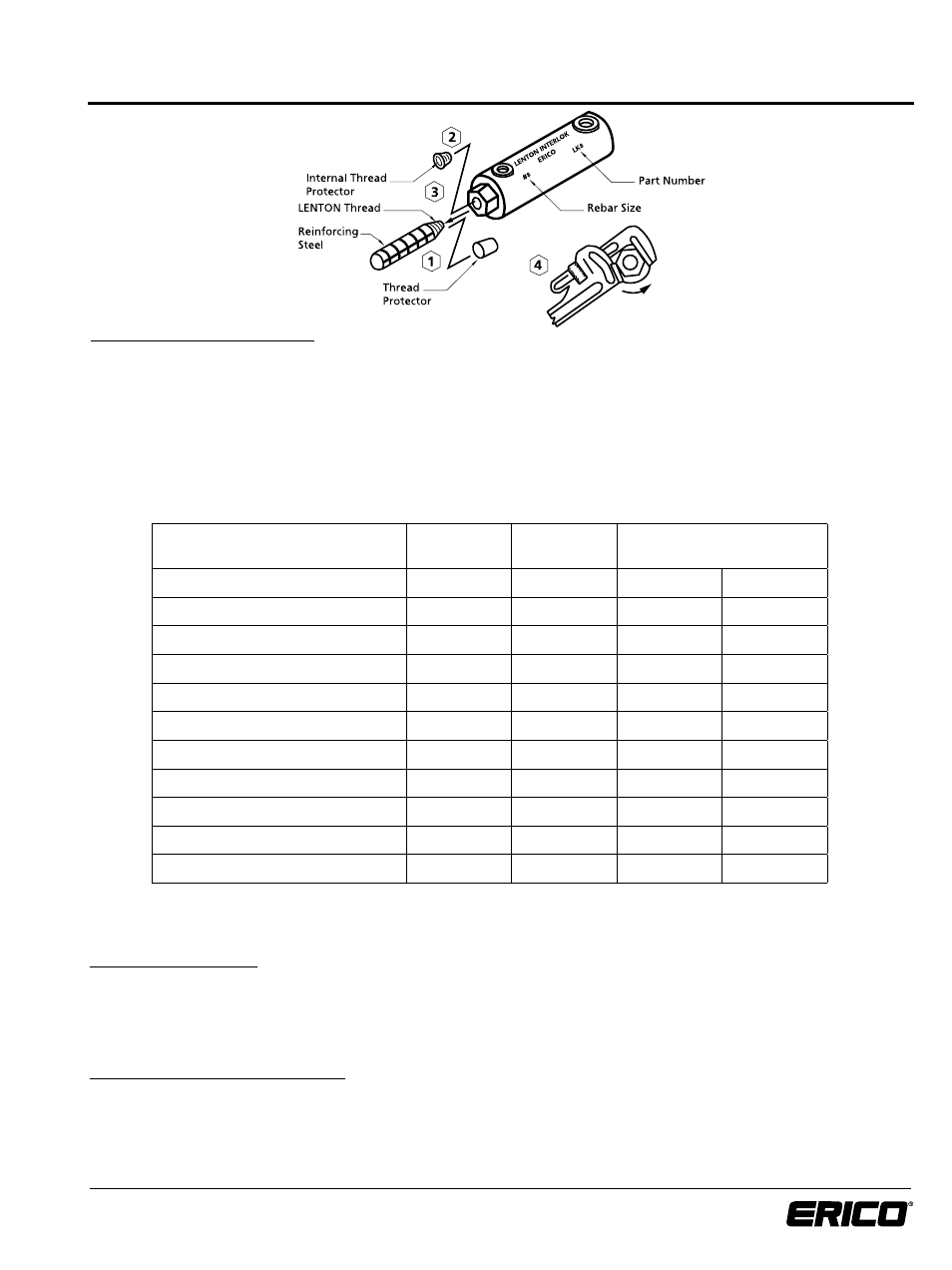

A. Attaching Coupler To Rebar:
1. Remove the thread protector. Examine threaded bar end to make sure it is undamaged and clean.
If cleaning is required, a wire brush should be used.
2. Determine whether the coupler is the correct size for the bars being spliced. Each coupler is identified with the bar
size and the part number (see chart). Remove the internal thread protector if installed.
3. Install the coupler by rotating by hand until tight - approximately 4 turns (Right Hand Thread).
4. While holding the bar stationary, rotate the coupler with a standard 18” pipe wrench until the connection is fully
tightened (see figure).
Comment on Tightness:
Proper tightness may be checked by the installer using a LENTON ® brand of inspection wrench. Refer to chart for inspection
wrench settings.
NOTE: The inspection wrench will emit a “click” that can be felt as well as heard when the inspection wrench
setting noted in the chart has been reached.
B. Attach The Coupler To The Form:
Follow the instructions provided with the Form Mounting Fixture. It is important that the Form Mounting Fixture is tightened
sufficiently so that the urethane grommet is fully expanded thereby preventing cement from entering the coupler .
Rebar Size Coupler
Part No.
Coupler
Article No.
Inspection Wrench Setting †
in-lb Metric Canadian ft-lb N•m
#5 16mm 15M LK5 145575 90 120
#6 20mm 20M LK6 145580 120 180
#7 22mm --- LK7 145585 160 220
#8 25mm 25M LK8 145590 200 270
#9 28mm 30M LK9 145595 200 270
#10 32mm --- LK10 145600 200* 300
#11 36mm 35M LK11 145605 200* 300
--- 40mm --- LK40 145610 200* 350
#14 43mm 45M LKT14 145611 200* 350
--- 50mm --- LKT50 145615 200* 350
#18 57mm 55M LKT18 145620 200* 350
† Metric and Imperial values are not a direct conversion.
* For Americas only
