ERICO LENTON INTERLOK Rebar Splicing System - Manual (Page 12)

6 www.erico.com

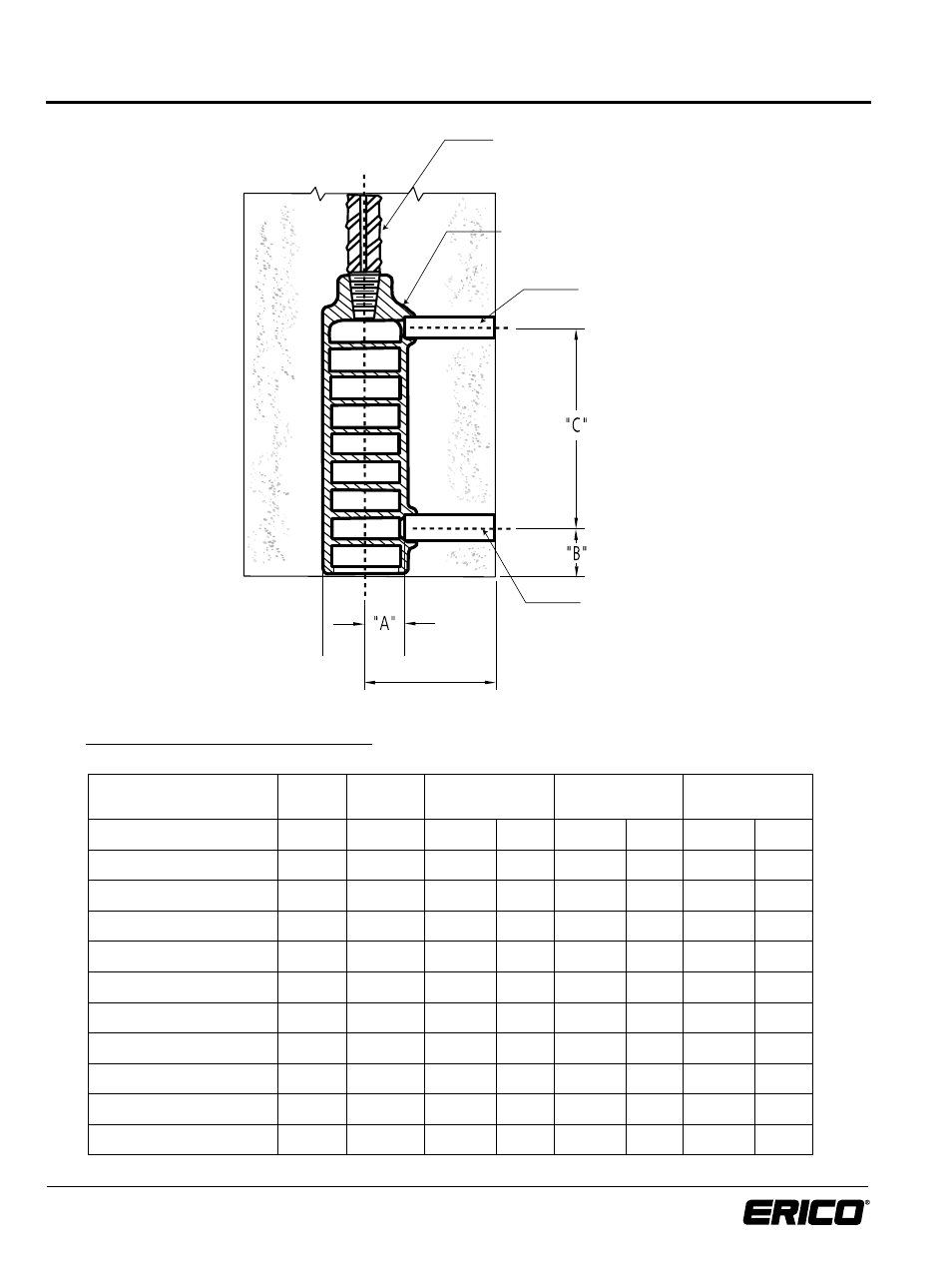

1.4 How to Determine Inlet and Outlet
Straight Tube Lengths
To Determine Inlet and Outlet Tube Length:
Distance from edge of panel to center line of coupler (minus) “A”.
Distance from the edge of
the panel to the center
line of the coupler.
Outlet
LENTON ® Taper
Threaded Rebar
LENTON ® INTERLOK
Coupler
Outlet Tube 1/2” PVC.
Schedule 40 13mm
Inlet
Inlet Tube 3/4” PVC.
Schedule 40 19mm
Rebar Size Coupler
Part No.
Coupler
Article No.
“A” “B” Length “C” Length
in-lb Metric Canadian inches mm inches mm inches mm
#5 16mm 15M LK5 145575 1-3/16” 30 1-7/8” 48 3-15/16” 100
#6 20mm 20M LK6 145580 1-3/16” 30 1-7/8” 48 3-15/16” 100
#7 22mm --- LK7 145585 1-3/16” 30 1-7/8” 48 3-15/16” 100
#8 25mm 25M LK8 145590 1-1/4” 32 1-13/16” 46 4-7/8” 124
#9 28mm 30M LK9 145595 1-5/16” 33 1-13/16” 46 5-7/8” 149
#10 32mm --- LK10 145600 1-7/16” 37 1-13/16” 46 6-7/8” 175
#11 36mm 35M LK11 145605 1-1/2” 38 1-3/4” 44 7-13/16” 198
--- 40mm --- LK40 145610 1-5/8” 41 1-15/16” 49 10-7/16” 265
#14 43mm 45M LKT14 145611 1-5/8” 41 1-15/16” 49 10-7/16” 265
--- 50mm --- LKT50 145615 1-15/16” 49 2-5/16” 59 14-1/4” 362
#18 57mm 55M LKT18 145620 1-15/16” 49 2-5/16” 59 14-1/4” 362
