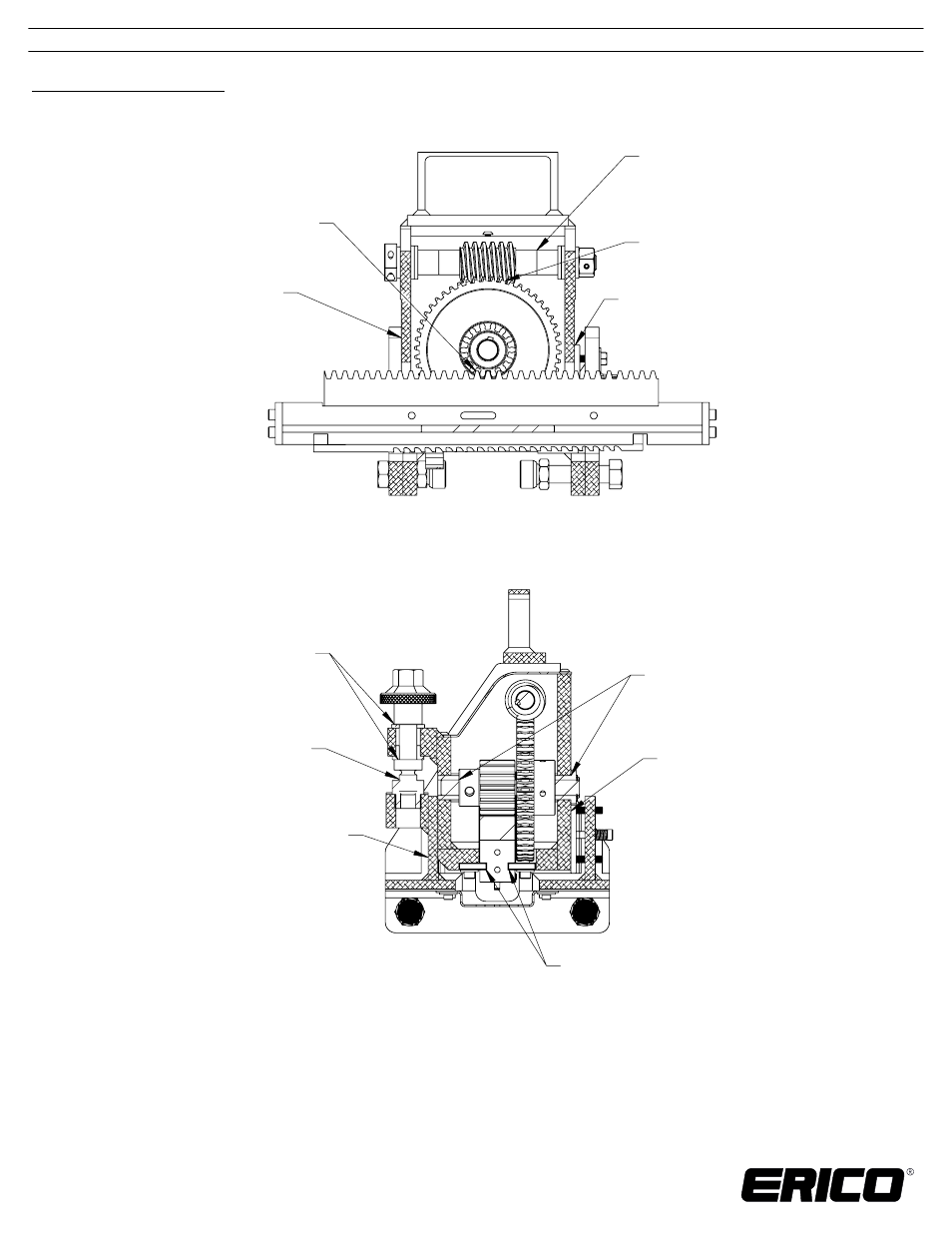

Sheet5, Section view a-a, Section view b-b – ERICO IJS100 Insulated Joint Slotter User Manual
Page 5
Apply grease at
gearbox/base
interface
Apply grease
at pinion/rack
interface
Apply oil at all worm
drive shaft/bushing
interface locations
Apply grease at
gearbox/side
plate interface
Apply grease at
gear/worm gear
interface
Apply oil at height
adjustment shaft/bushing
interface locations
Apply grease at
thread/nut
interface
Apply grease at
gearbox/base
interface
Apply grease at
tool holder/slide
plate interface
Apply grease at
tool holder/slide
plate interface
Apply grease at
gearbox/side
plate interface
Periodic Maintenance:
1. Apply white grease as needed (Figures 10 and 11).
2. Tighten setscrews as needed.
Figure 10 and 11: Lubrication points on Insulated Joint Slotter
Apply oil at drive
shaft/bushing
interface locations
TECHNICAL SUPPORT:
www.erico.com
IP8240_B
INSTRUCTION SHEET
5 OF 10
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
© 2012 ERICO International Corporation.
