Sheet3, Drawing view4, Drawing view5 – ERICO IJS100 Insulated Joint Slotter User Manual
Page 3: Drawing view6, Drawing view47, Drawing view49

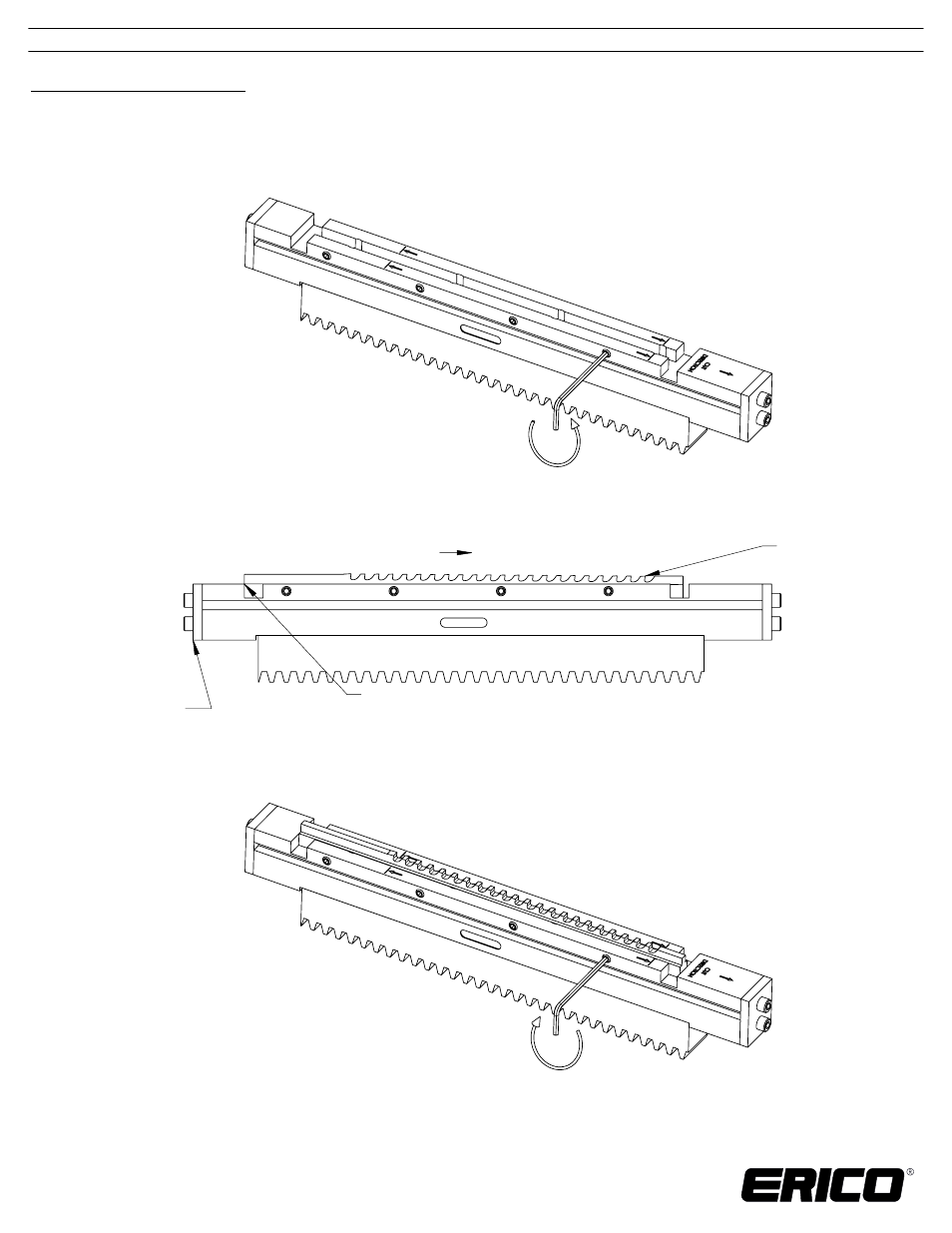

Figure 3: Loosen tool holder setscrews to install the cutting tool
Figure 4: Cutting tool orientation and seating
Face orientated to
the gauge side of
the rail
Note tooth
orientation
Cut Direction
Back face of cutting tool shall
be fully seated against this face
Figure 5: Tighten tool holder setscrews to hold cutting tool
Cutting Tool Installation:
Use a 1/8” hex bit to loosen the cutting tool setscrews (Figure 3).
1.
Install the cutting tool into the slot of the tool holder. The cutting tool should be fully seated in the
2.
slot and its teeth oriented in the correct direction (Figure 4).
Retighten the setscrews to 25 in-lb [2.8 N-m] (Figure 5).
3.
TECHNICAL SUPPORT:
www.erico.com
IP8240_B
INSTRUCTION SHEET
3 OF 10
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
© 2012 ERICO International Corporation.
