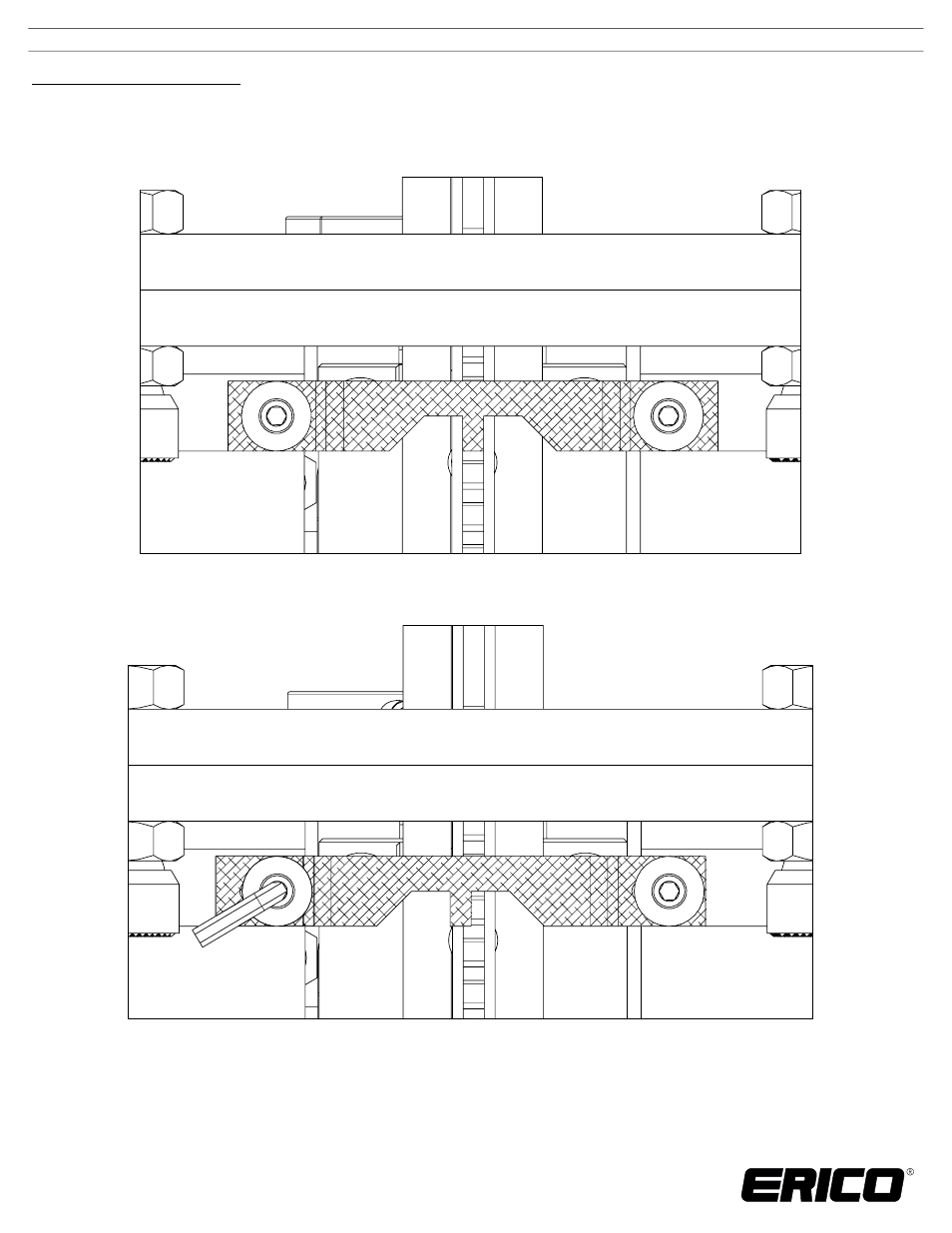

Figure 1: Properly calibrated joint alignment bracket
Figure 2: Joint alignment bracket in need of calibration.
Joint Alignment Calibration:
Confirm that the tab on the joint alignment bracket is aligned with the cutting tool (Figure 1). 1.
If the tab is not aligned (Figure 2), use a 5/32” hex bit to loosen the joint alignment bracket screws and 2.
align the tab on the joint alignment bracket to the cutting tool.
Retighten the screws to 25 in-lb [2.8 N-m]. 3.
TECHNICAL SUPPORT:
www.erico.com IP8240_B
INSTRUCTION SHEET
2 OF 10
