The cadweld, Plus one shot process – ERICO CADWELD Exothermic Welding User Manual
Page 39

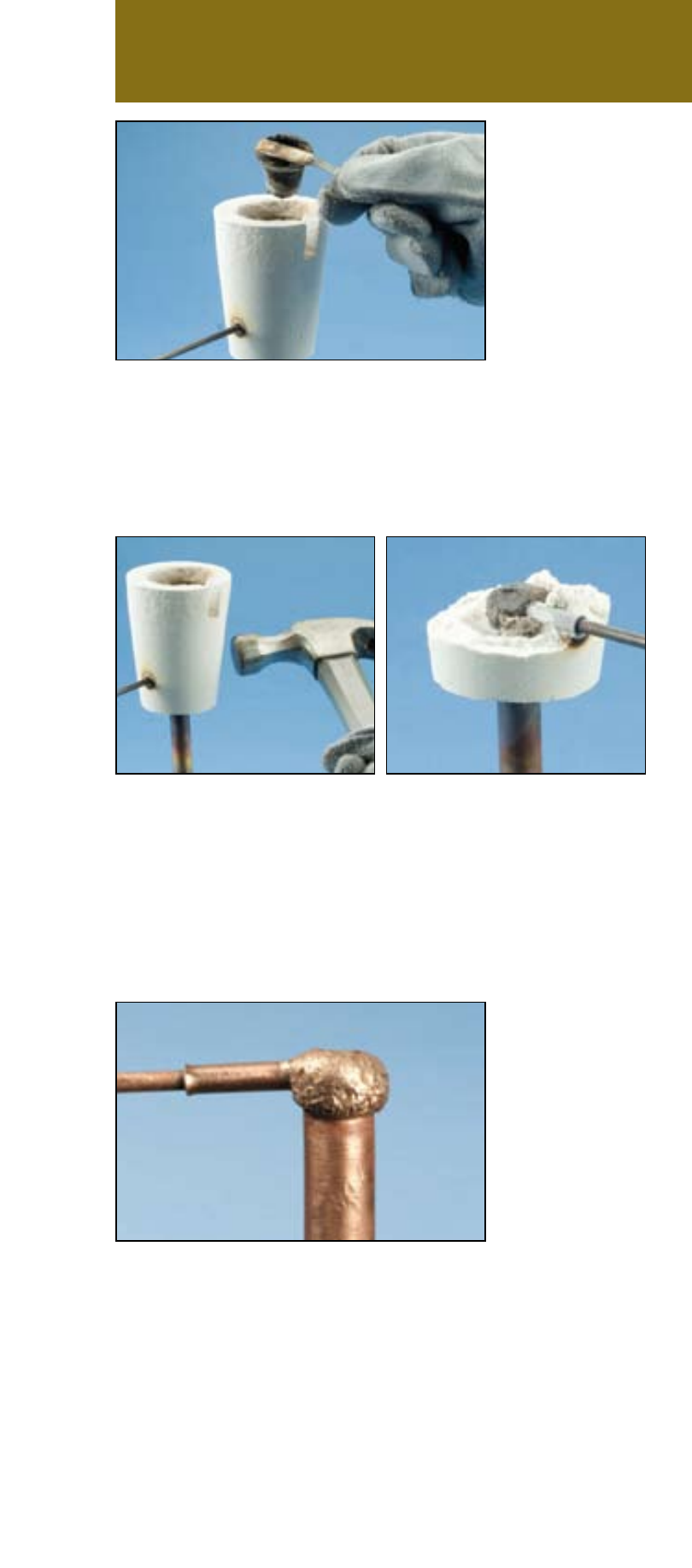

Fig. 14
Remove and dispose of the used CADWELD
®
PLUS
weld metal cup.
Fig. 15
Break the ceramic CADWELD
®
ONE SHOT mold off
of the connection. Avoid contact with hot materials.
See the “Installers & Inspectors Guide” to see
whether a quality connection has been made.
Fig. 16
You are ready to make another CADWELD
®
connection.
37
The CADWELD
®
PLUS ONE SHOT Process
