The cadweld, Exolon process – ERICO CADWELD Exothermic Welding User Manual
Page 26

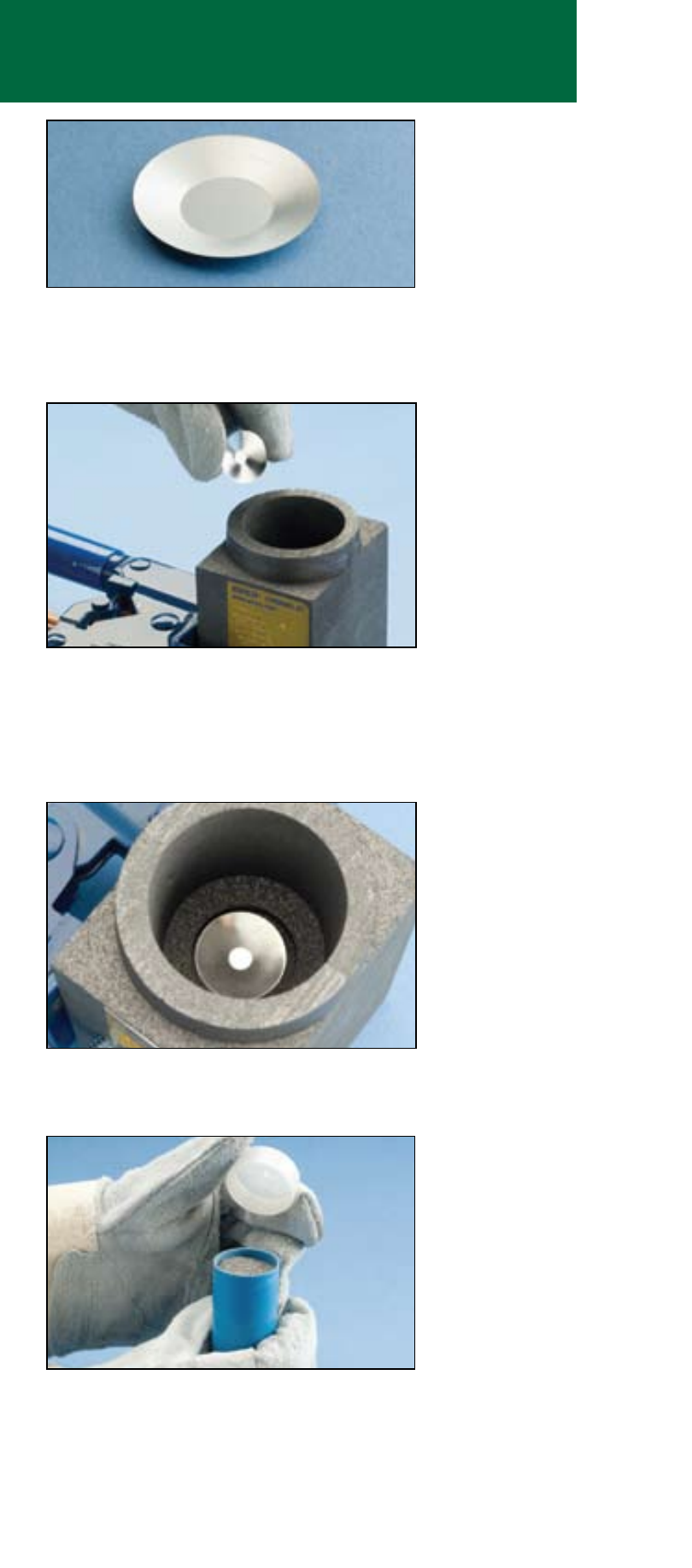

Fig. 17
Steel disk found inside the packaging box of welding
material.
Fig. 18
Insert the steel disk (concave side up) into the mold.
Hold the steel disk on the side of the mold and let it
slide into place.
Fig. 19
Ensure that the steel disk is properly seated.
Fig. 20
Next, take the tube of welding material included in
the CADWELD
®
EXOLON package and remove the lid
over the mold crucible.
24
The CADWELD
®
EXOLON Process
