The cadweld, Plus process – ERICO CADWELD Exothermic Welding User Manual
Page 17

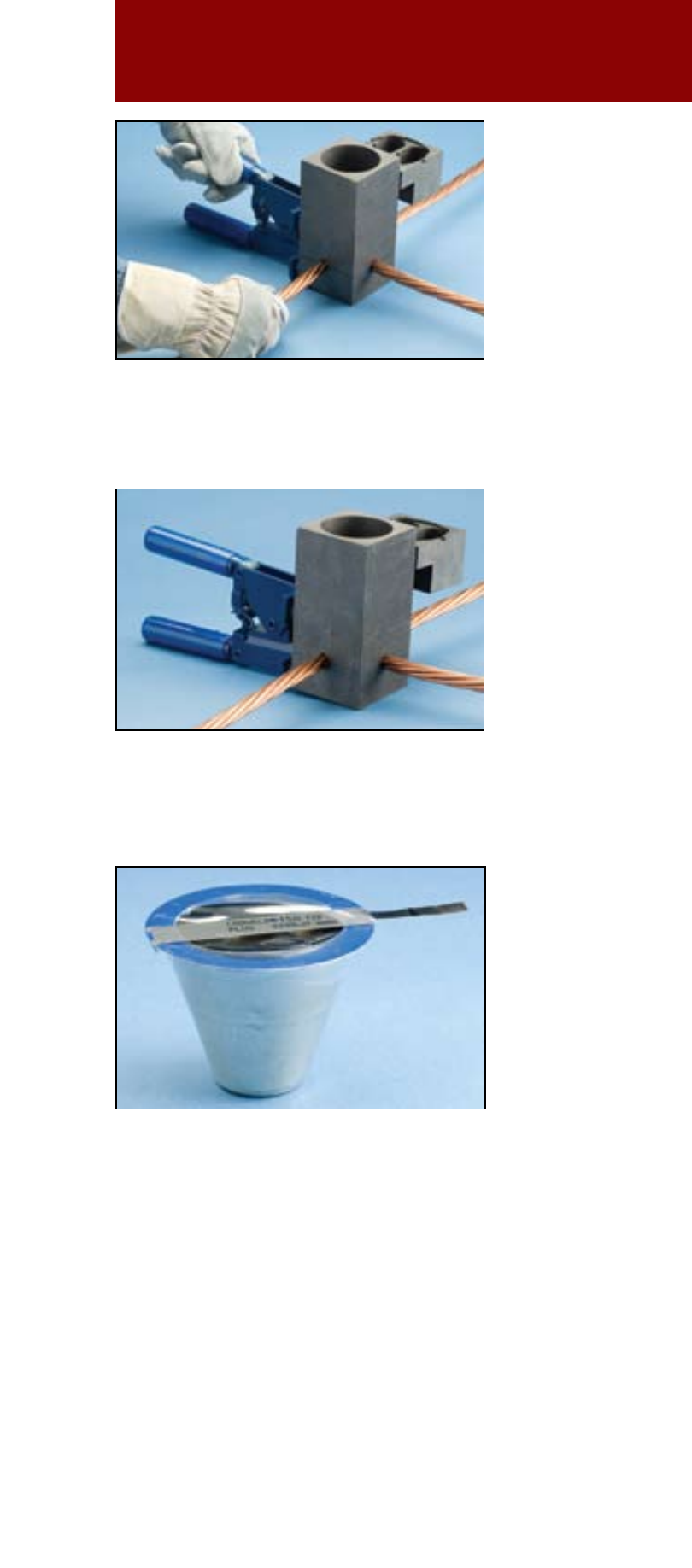

Fig. 13
Insert the conductors and position them for the
connection.
Fig. 14
Close the clamp tightly once the conductors are
properly positioned.
Fig. 15
Remove the proper CADWELD
®
PLUS welding
material cup from the plastic container. Inspect the
cup to ensure it is tightly sealed and the ignition strip
is securely attached to the seal.
15
The CADWELD
®
PLUS Process
