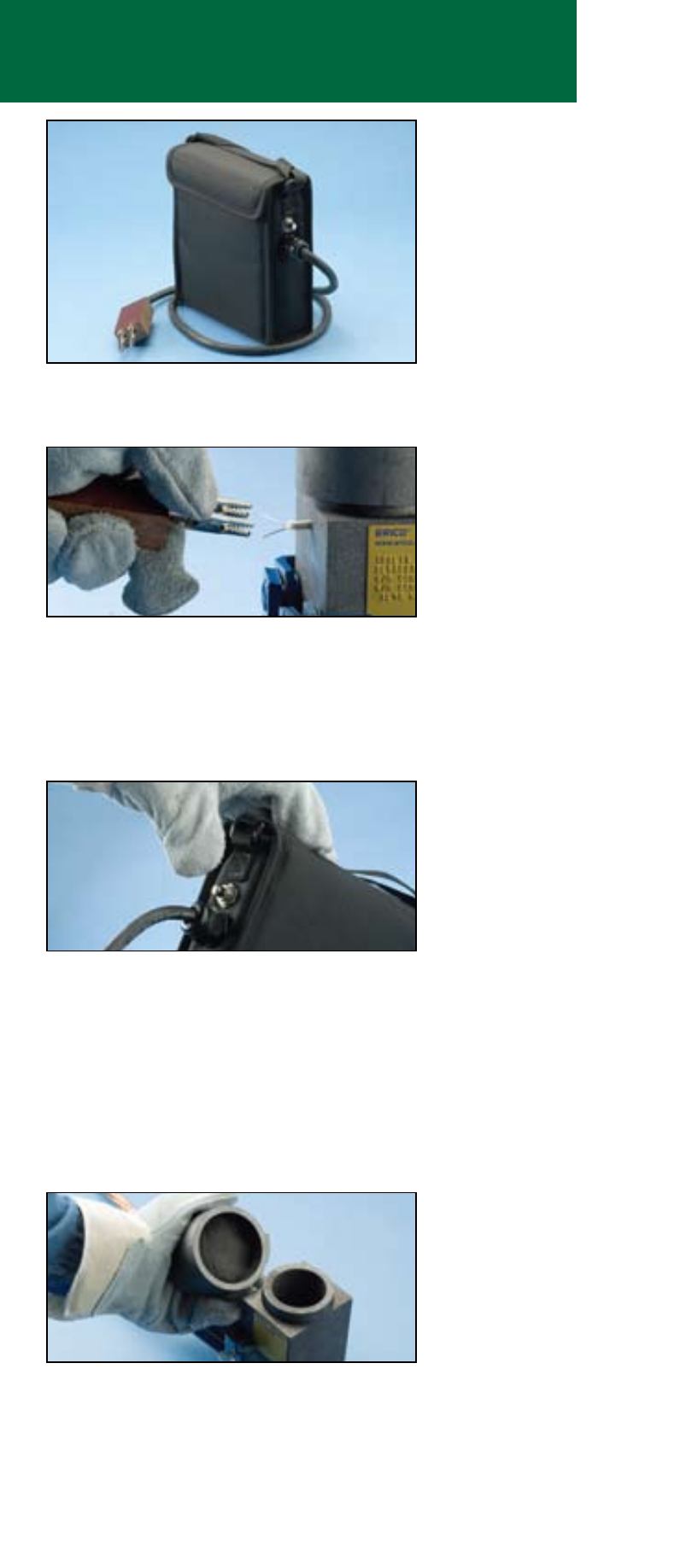

Fig. 24
CADWELD ® EXOLON battery pack.
Fig. 25
Take the alligator clips and clip them onto the
wire leads. Remove or protect fire hazards in close
proximity to the connection. Advise nearby personnel
of welding operations in the area.
Fig. 26
Using the CADWELD EXOLON battery pack, press
the button. At this time, the unit will send a charge
to the igniter pin. The igniter pin will initiate the
CADWELD EXOLON exothermic reaction.
Allow approximately 30 seconds for completion of
the reaction and solidification of the molten material.
Fig. 27
Remove the alligator clips from the igniter pin.
Remove the graphite cover of the CADWELD
EXOLON mold.
26
The CADWELD
®
EXOLON Process
