ERICO CADWELD Exothermic Welding - Manual (Page 25)

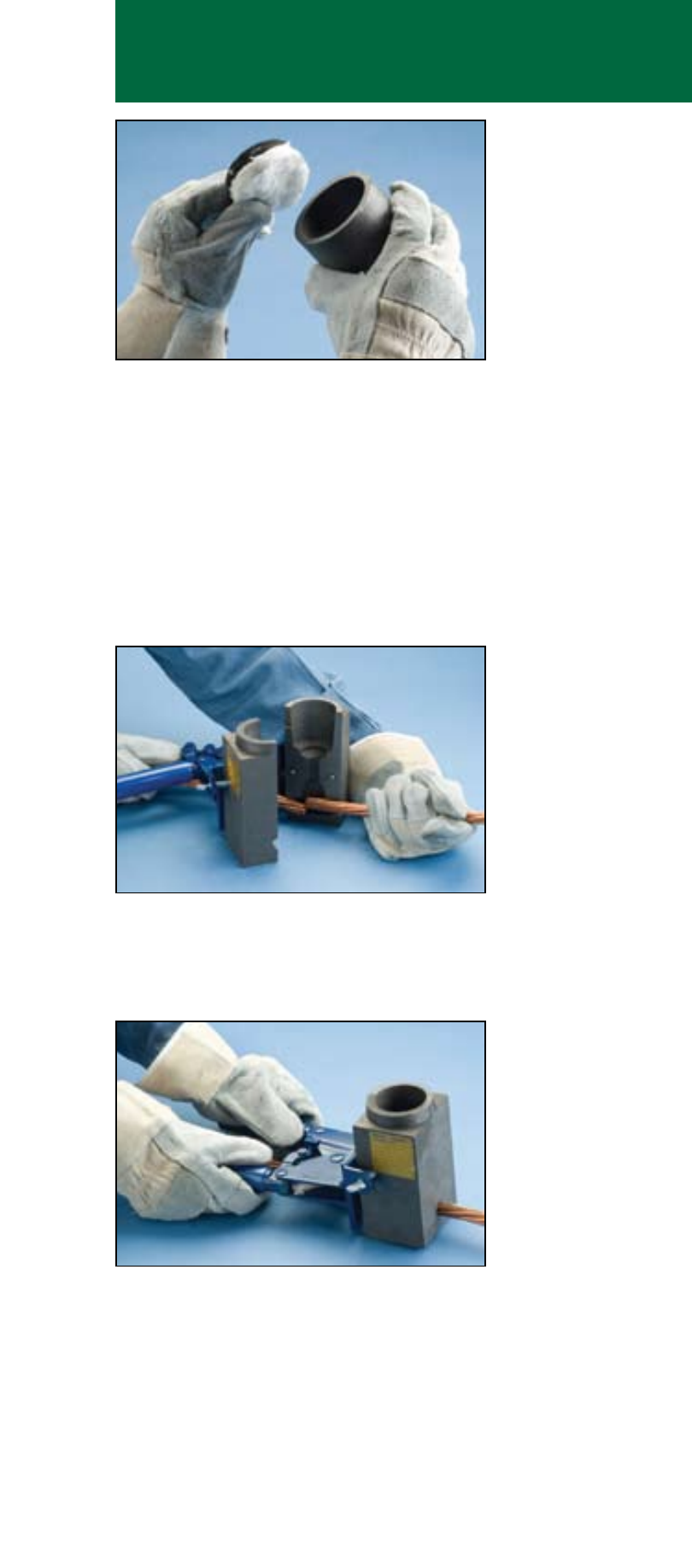

Fig. 14
Each CADWELD ® EXOLON package contains 2 filters
for a low emission connection. Insert the white
ceramic and black graphite filters into the mold cover.
(Filters must be changed every 4 connections.)
NOTE: If using XL200 welding material or higher,
3 filters (1 white, 2 black) are included in the
weld metal package. Insert the white filter
between the black filters.
Fig. 15
Insert the conductors and position them for the
connection.
Fig. 16
Close the clamp tightly once the conductors are
properly positioned.
23
The CADWELD
®
EXOLON Process
