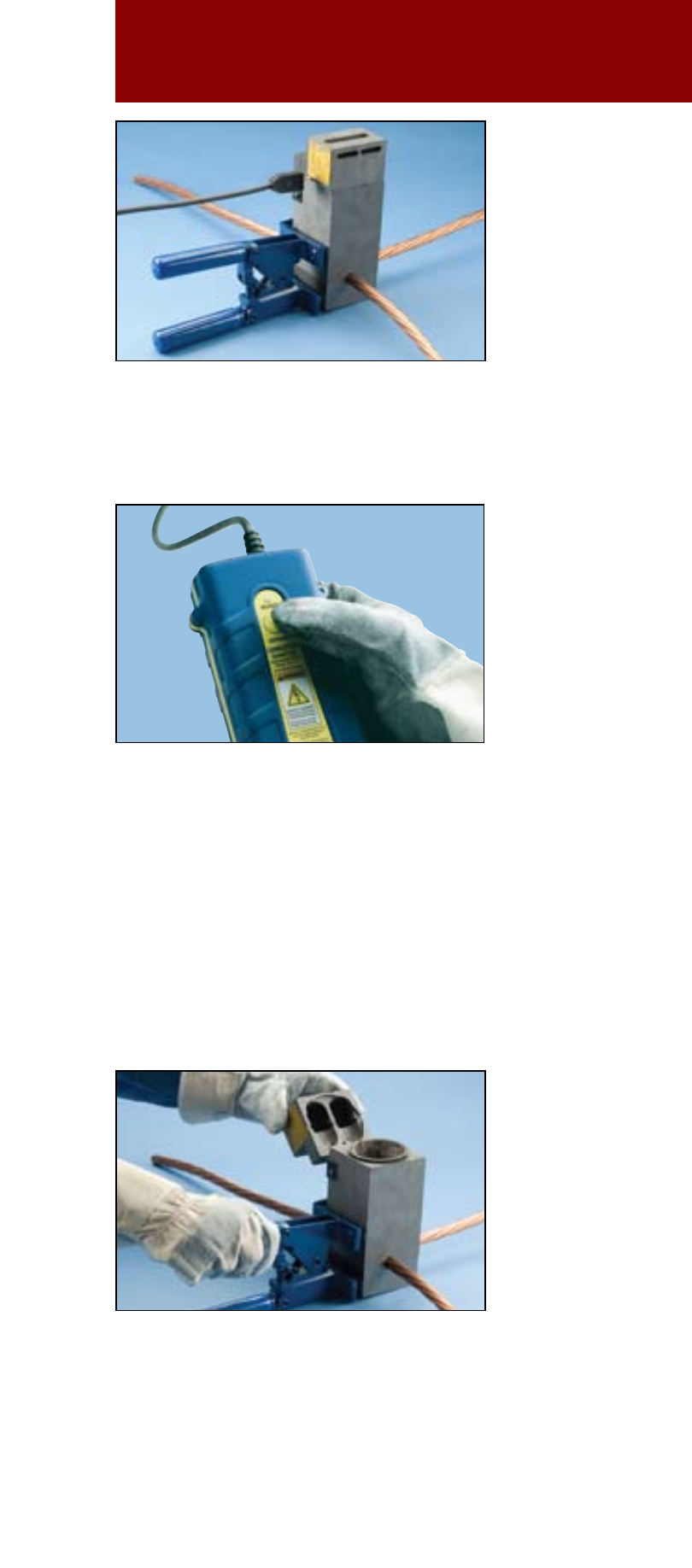

Fig. 19
Close the graphite mold lid. Advise nearby personnel
of welding operations in the area.
Fig. 20
Using the control unit, press the button and hold,
while you observe the “ready” indicator light. A
green light will blink for a few seconds and then
will change to a constant light. At this time, the unit
will send a charge to the ignition strip. The ignition
strip will spark inside the metal cup, initiating the
CADWELD ® PLUS exothermic reaction.
Allow approximately 30 seconds for completion of
the reaction and solidification of the molten material.
Fig. 21
Remove the control unit connector from the
ignition strip. Open the lid and remove the used
CADWELD PLUS cup from the mold.
17
The CADWELD
®
PLUS Process
