.29.1 Main Feedback Cable (CBL-DFDBK-1)
The Main Feedback cable (CBL-DFDBK-1) is made of 24-AWG shielded cable with a 15-pin D-
sub plug. It connects to the MAIN FEEDBACK port on the Evaluation Board. It is open on the
motor side so that it can be connected to customer-specific connectors.
Pin No. Color Pairs
1 Green
Pair
10 Yellow
2 Pink
3 White
Pair
4 Brown
5 Orange
Pair
6 Cyan
7 Blue
Pair
8 Red
9 –
11 –
12 –
13 –
14 Black
Pair
15 Purple

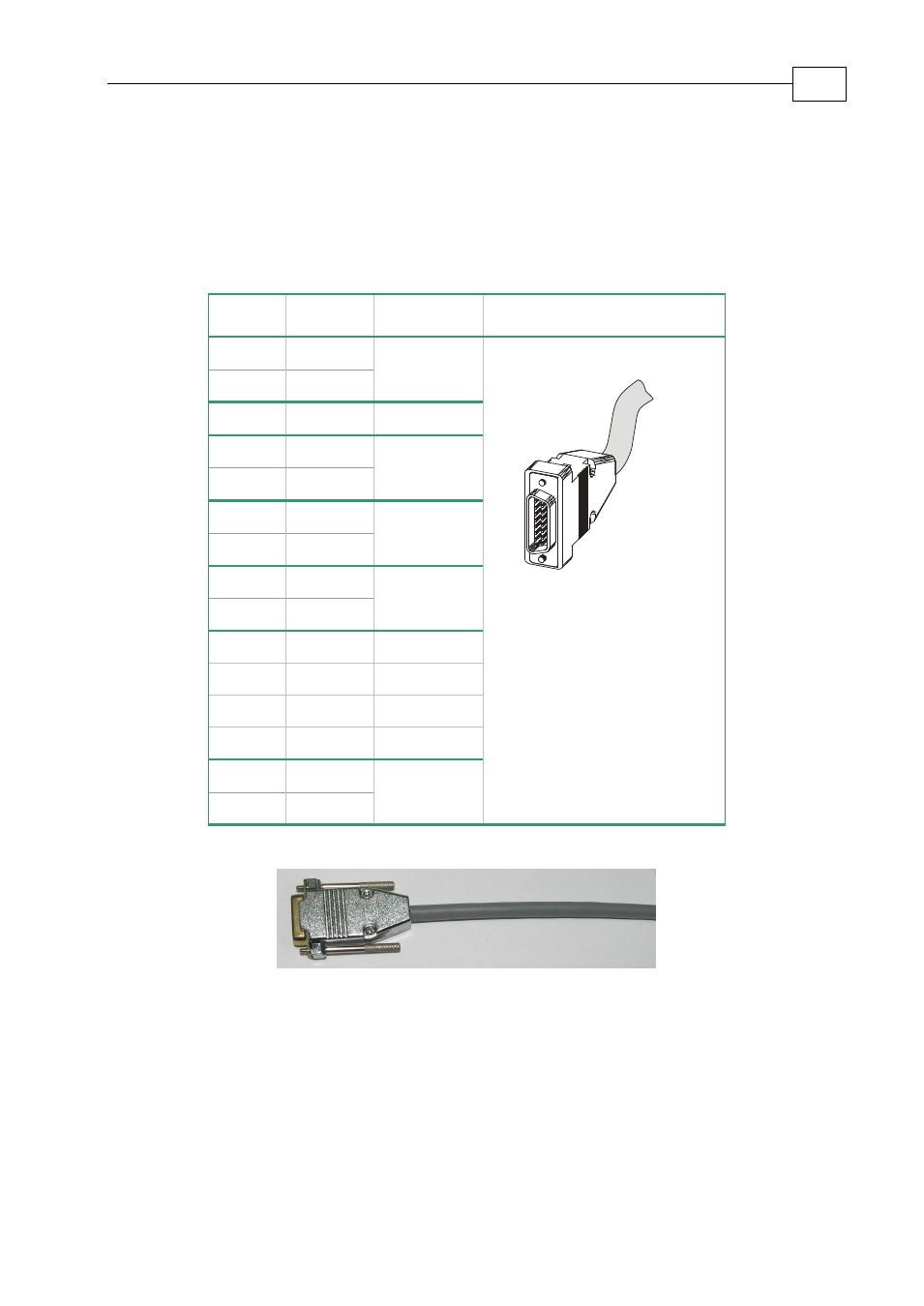

Figure B-1: Single-sided Main Feedback Cable (Part No. CBL-DFDBK-1)
15 Pin D-sub Plug
