Whistle, Bell Guitar Evaluation Board User Guide Combined Evaluation Board
MAN-EVLBRD-WHI-BEL-GUI (Ver. 1.401)
36

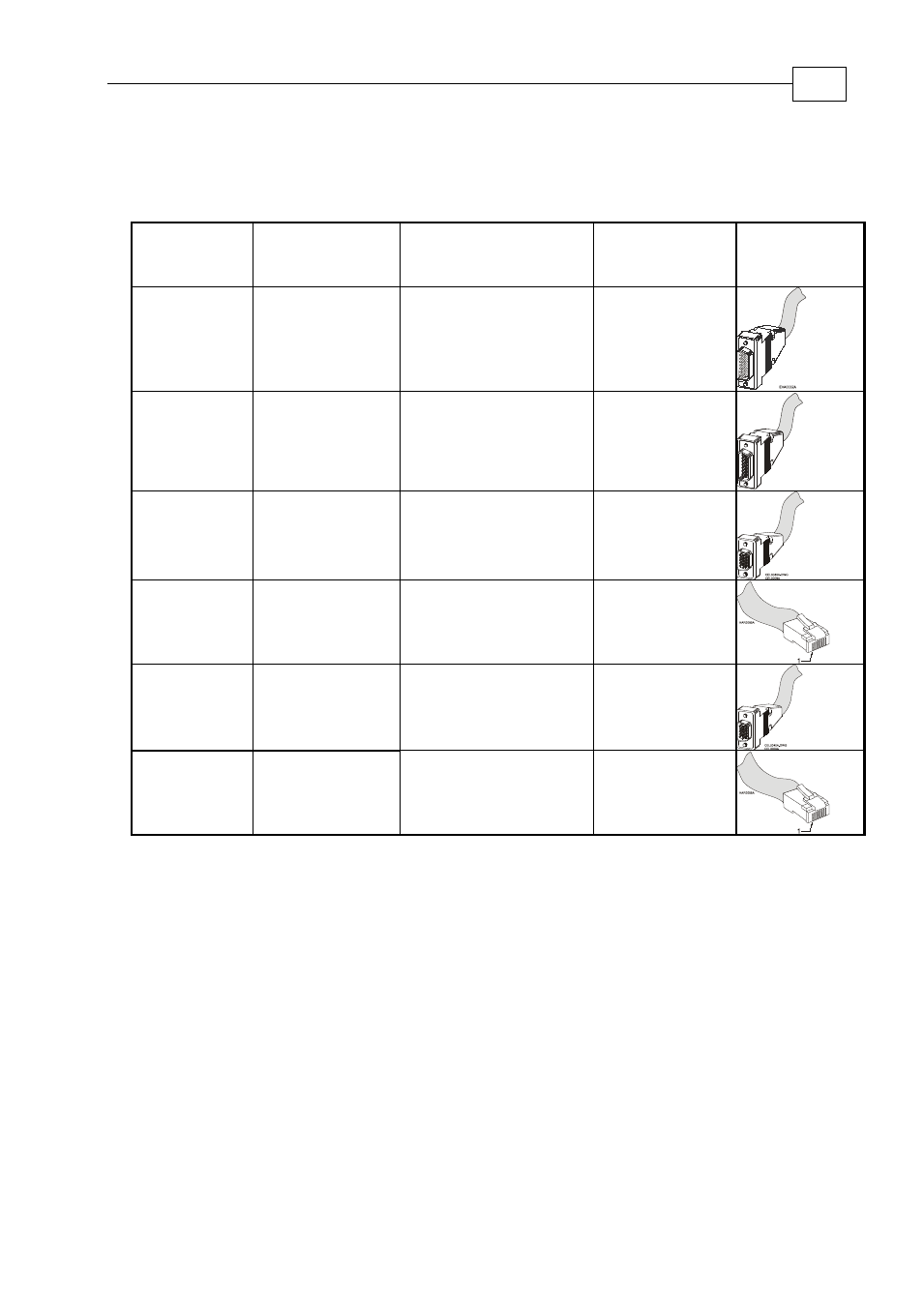

.10.5 User Connectors
Type
On-Board
Connector
Complementary
Cable Name
Catalog No.
Cable/ Plug
General I/O
26-pin high
density D-Sub
Plug
General I/O Connector JCW-200226M
Main Feedback 15-pin D-Sub
Socket
General Purpose Main
Feedback Cable
CBL-DFDBK-1
Main Buffered
Output
15-pin high
density
D-Sub Socket
Main Feedback Buffered
Output Cable
CBL-CELIO2-1
RS-232 8-pin RJ-45 socket RS-232 Cable
CBL-RJ45RS2321-
1
Auxiliary
Feedback
15-pin high
density
D-Sub Socket
Auxiliary Feedback
Cable
CBL-CELAUX-1
CAN open
Communication
2x 8-pin RJ-45
socket
CAN Cable CBL-RJ45CAN1-1
