Whistle, Bell Guitar Evaluation Board User Guide
Cables
MAN-EVLBRD-WHI-BEL-GUI (Ver. 1.401)
85
Cables

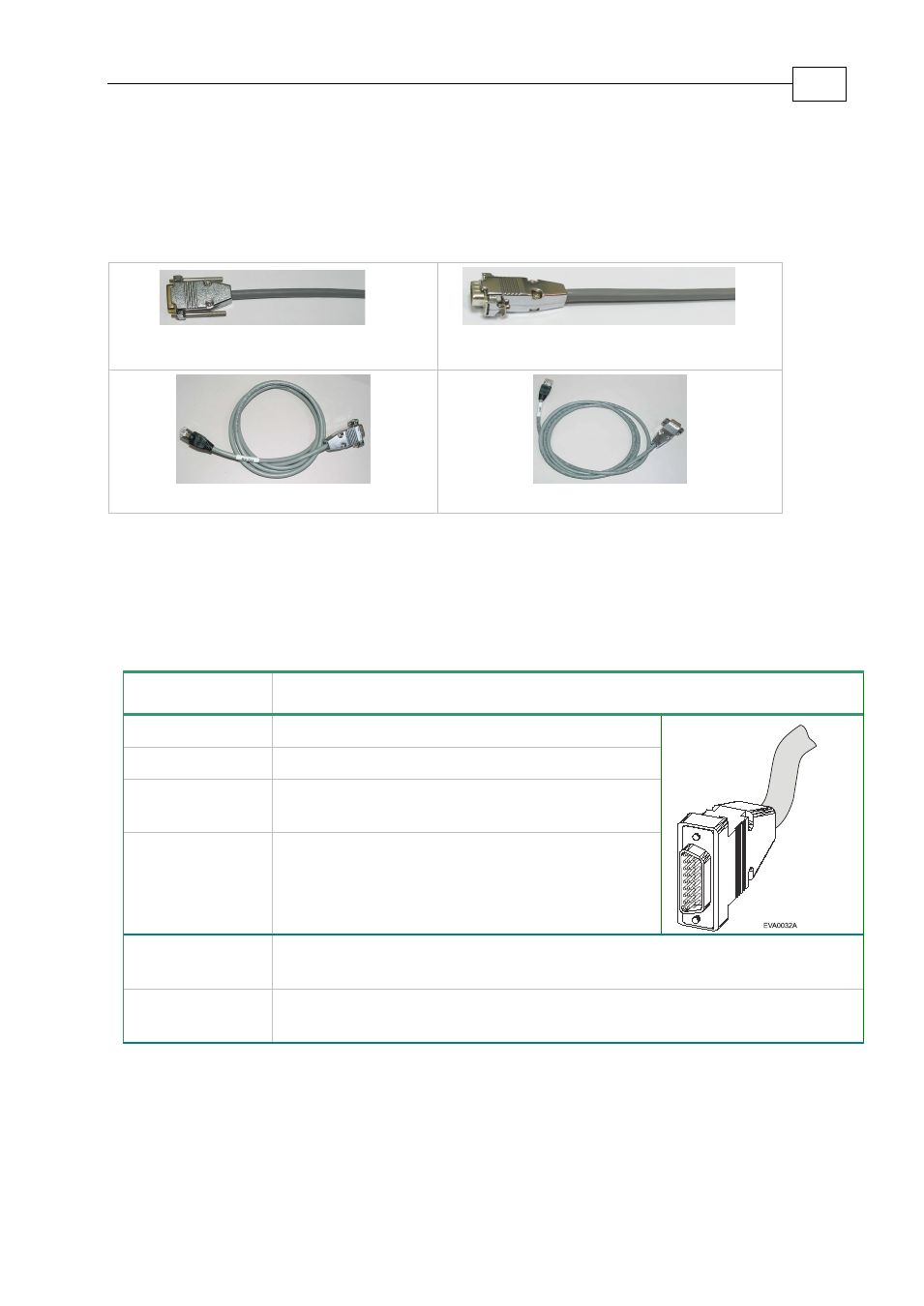

.28 Cable Photos
Main Feedback: CBL-DFDBK-1
Aux. Feedback &
Main Buffered Output: CBL-CELAUX-1
RS-232 Com: CBL-RJ452321-1
CAN Com: CBL-RJ45CAN1-1
.29 Cable Kits
A full set of cables is supplied with the Evaluation Board – Catalog Number
CBL-EVAUNIKIT01. The cables are all 1 m in length. Each set contains the cables listed
below. Additional Cable Kits and individual cables (individually or in multiples of 10) are
available from Elmo.
Cable Application Cable Part. No.
Main Feedback
CBL-DFDBK-1
Auxiliary Feedback CBL-CELAUX-1
Main Buffered
Output
CBL-CELAUX-1
General I/O
WIP-028X2X24: The 1 m cable
JCW-200226M: The 26-pin connector for the cable
JCC-200115OC: The 15-pin connector for the hood
RS-232
Communications CBL-RJ452321-1
CAN
Communications CBL-RJ45CAN1-1
