Whistle, Bell Guitar Evaluation Board User Guide Combined Evaluation Board
MAN-EVLBRD-WHI-BEL-GUI (Ver. 1.401)
67
There is an option to operate the Motor Break. It should be connected to the J3 power
connector. The logic for Motor Brake operation comes from Digital Output 1 (DOUT1). So
remember: if you connect the Motor Break to the Evaluation Board, define it in the Composer
software and remember that you cannot use DOUT1 for digital output; use DOUT2 - DOUT4
instead.

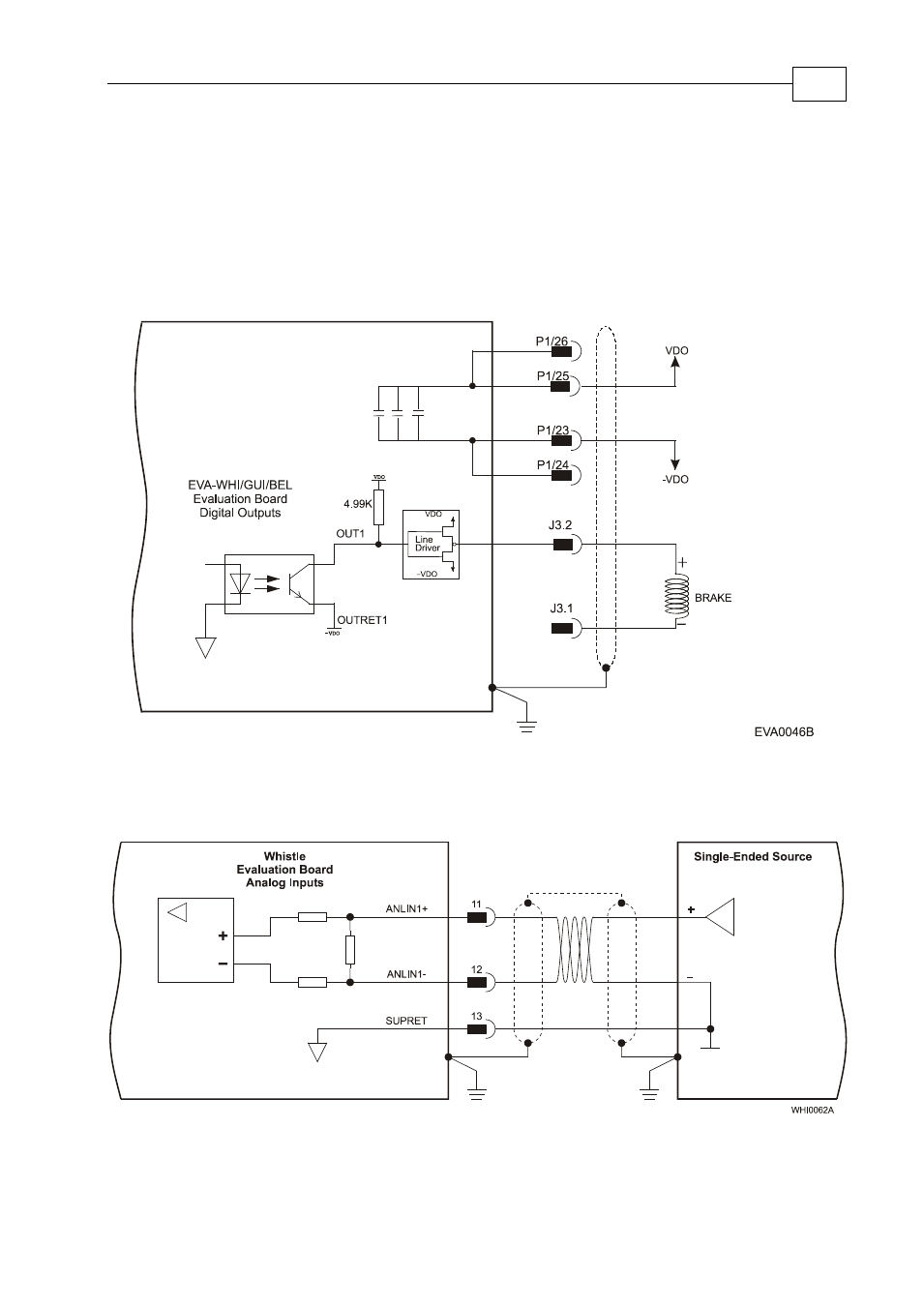

Figure 41: Connection Diagram with Brake Option
.15.3 Analog Input
Figure 42: Analog Input with Single-ended Source
