7 connecting motor power to the bell, 8 connecting the main power to the bell, Connecting motor power to the bell – ElmoMC SimplIQ Digital Servo Drives-Guitar Evaluation Board User Guide User Manual

Page 29: Connecting the main power to the bell

Text mode
Original mode

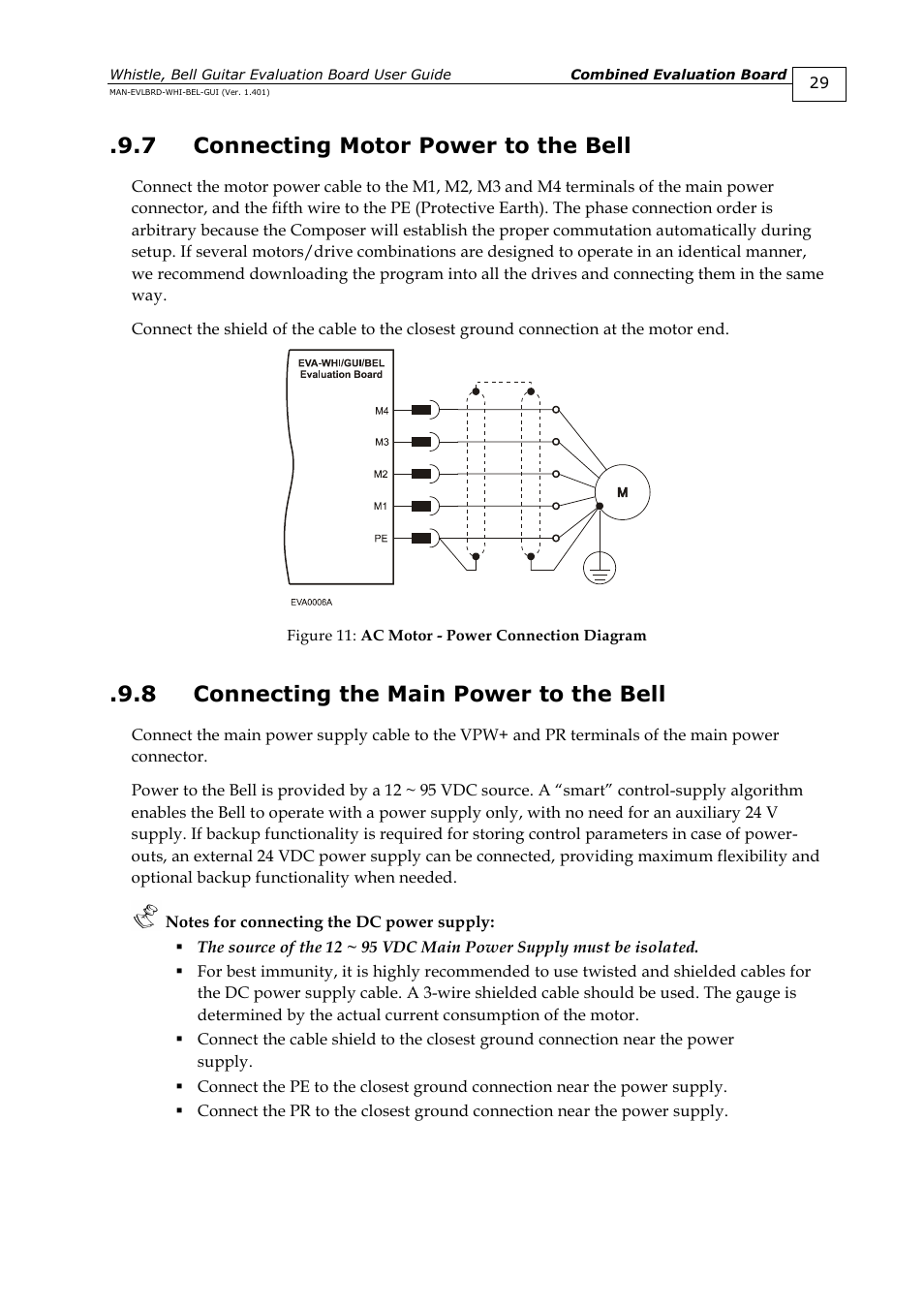

7 connecting motor power to the bell, 8 connecting the main power to the bell, Connecting motor power to the bell | Connecting the main power to the bell | ElmoMC SimplIQ Digital Servo Drives-Guitar Evaluation Board User Guide User Manual | Page 29 / 93

This manual is related to the following products:

SimplIQ Digital Servo Drives-Whistle Evaluation Board User Guide SimplIQ Digital Servo Drives-Tweeter Evaluation Board User Guide SimplIQ Digital Servo Drives-Bell Evaluation Board User Guide
