Det-Tronics C7052J UV/IR Flame Detector used with R7494, R7495 Controller - Manual (Page 6)

POWER CONSUMPTION—
Controller: 1.5 watts typical, 3.5 watts maximum.
Detector: 1.0 watt typical, 3.5 watts maximum.
RELAY CONTACT RATINGS—
3 amperes at up to 30 vdc or up to 240 vac
CONTROLLER TEMPERATURE RANGE—
Operating: +32°F to +140°F (0°C to +60°C)
Storage: –40°F to +140°F (–40°C to +60°C)
DETECTOR TEMPERATURE RANGE—
Operating: –40°F to +167°F (–40°C to +75°C).
Storage: –67°F to +185°F (–55°C to +85°C)
DETECTOR HUMIDITY RANGE—
0 to 95% relative humidity.
DETECTOR ENCLOSURE MATERIAL—
Copper-free aluminum (red) or 316 stainless steel, with
optional stainless steel mounting bracket.
DETECTOR ENCLOSURE RATINGS—
FM approved and CSA certified for Class I, Groups C
and D, and Class II, Groups E, F, and G hazardous
locations. NEMA 4 enclosure. BASEEFA/CENELEC
certified flame-proof for EExd IIB T6; IP66 enclosure
rating.
RFI/EMI HARDENED—
Detector designed to meet RFI and EMI immunity
requirements of MIL STD 461, 462, and 463.
DIMENSIONS—
See Figures 5, 6, 7 and 8.
SHIPPING WEIGHT—
R7495B Controller:
4.4 pounds (2.0 kilograms)
C7052J Detector:
Aluminum: 6.0 pounds (2.7 kilograms)
Stainless Steel: 14.0 pounds (6.4 kilograms)
6
C1047
3.38 (85.8 MM) 7.11 (181 MM)
7.81
(198 MM)
2.5 DIA.
(64 MM)
5.25
(133 MM)
CONDUIT ENTRY 3/4 NPT OR 25 MM

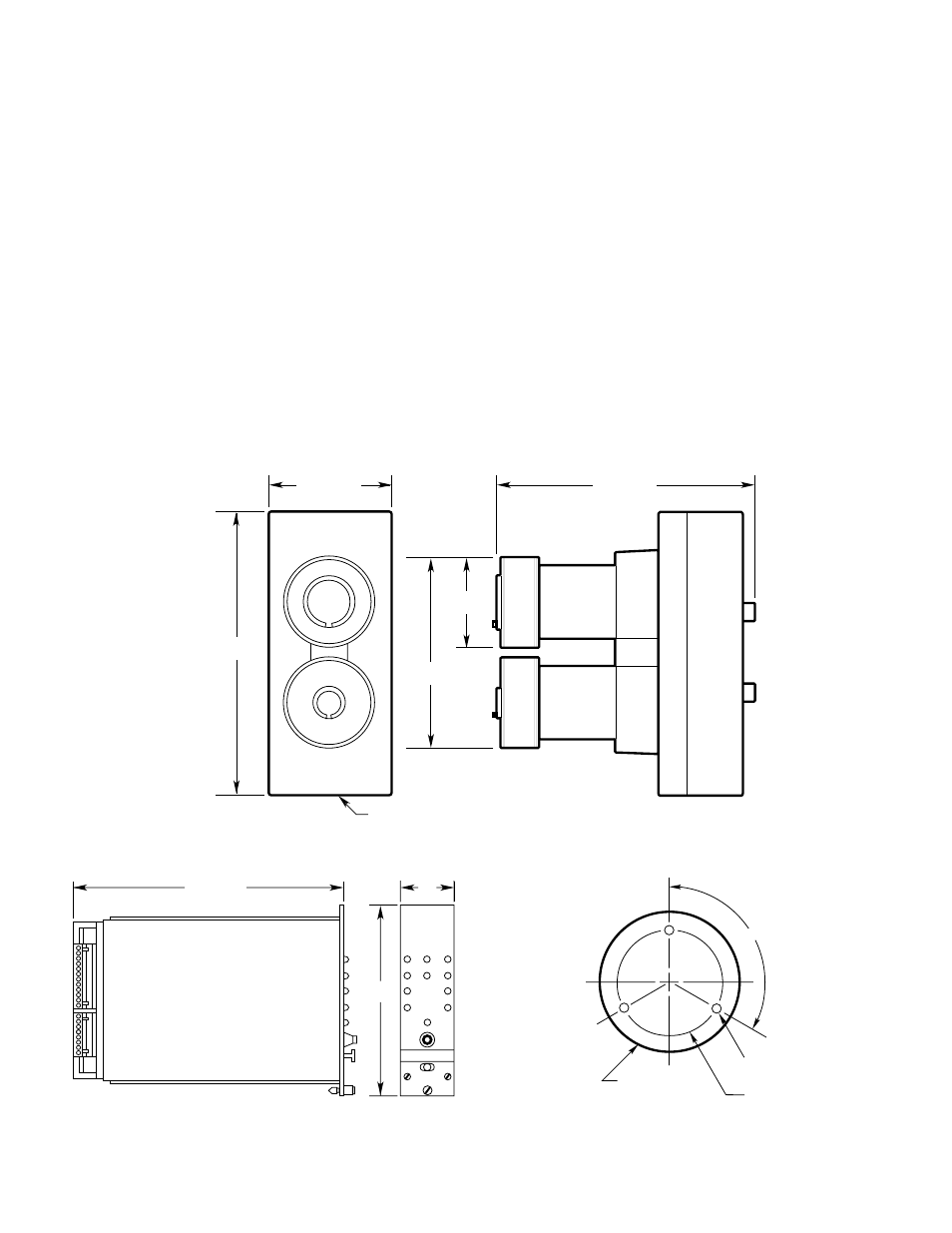

Figure 5—Detector Dimensions in Inches (MM)
B0906
10.0 (254 MM) 2.0
(50 MM)
7.0
(177 MM)
Figure 6—R7495 Controller Dimensions in Inches (MM)
2–1/2 (64 MM) DIA.
2.00 (50.8 MM) DIA.
0.25 (6.4 MM)
DIA. (3)
120 ° ± 2 ° (2)
A1305
Figure 7—Mounting Base Dimensions
