Terminal 34 — Do not use.
Terminals 35 to 42 — Connect to the D-leads (oi
control signal) of the corre-
sponding detectors.
Terminals 43 to 50 — Connect to the B-leads (detec-
tor output) of the correspond-
ing detectors.
PROGRAMMING THE CONTROLLER
The R7495B Controller is field programmable in order to
meet the requirements of the individual installation. This
is accomplished by setting rocker switches that are
located on the left side of the controller (see Figure 20)
to either “open” or “closed.” The programming options
are listed below. A more detailed description follows.
1. Number of detectors connected to the controller (up
to eight)
2. Gate Length, Consecutive Gate Selection, and
Count Selection (system sensitivity and time delay).
3. Detector Grouping/Voting Logic
4. Latching/non-latching outputs.
The individual rocker switches are identified by num-
bers 1-1, 1-2, 1-3, etc. in this manual. The number pre-
ceding the dash indicates the number of the switch
assembly. The number following the dash identifies the
specific rocker on the switch assembly. See Figure 20.
Each rocker switch assembly contains eight separate
rocker switches. The rockers are identified by the num-
bers one through eight on one side of the assembly.
The word “open” can be seen on the opposite side.
The switch is open when depressed in the direction of
the word “open” and closed when depressed in the
direction of the numbers.
16
A0973
SWITCH ASSEMBLY 3
CONSECUTIVE GATE SELECTION
ROCKER 1 – 1 COUNT
ROCKER 2 – 2 COUNTS
ROCKER 3 – 4 COUNTS
ROCKER 4 – 8 COUNTS
ADD VALUE OF CLOSED ROCKERS
2 GATES MINIMUM
COUNT SELECTION
ROCKER 5 – 1 GATE
ROCKER 6 – 2 GATES
ROCKER 7 – 4 GATES
ROCKER 8 – 8 GATES
VALUES OF CLOSED ROCKERS
ARE ADDED – 2 COUNTS MINIMUM
IF GATE IS GREATER THAN OR EQUAL
TO 0.5 SECOND, A MULTIPLICATION FACTOR
MUST BE USED.
SWITCH ASSEMBLY 2
GATE LENGTH
CLOSE ROCKERS TO ACTIVATE
ROCKER 1 – 31.25 MILLISECONDS
ROCKER 2 – 62.5 MILLISECONDS
ROCKER 3 – 0.125 SECOND
ROCKER 4 – 0.25 SECOND
ROCKER 5 – 0.5 SECOND
ROCKER 6 – 1 SECOND
ROCKER 7 – 2 SECONDS
ROCKER 8 – 4 SECONDS
VALUES OF ROCKERS CLOSED
ARE ADDED TOGETHER
ROCKER SWITCH NUMBERS ARE DESIGNATED 1-1, 1-2, 1-3, ETC.
THE NUMBER PRECEDING THE DASH INDICATES THE SWITCH ASSEMBLY.
THE NUMBER FOLLOWING THE DASH INDICATES THE ROCKER NUMBER OF THE SWITCH INDICATED.
NOTE 1:
DEPRESS ROCKER TOWARD "OPEN" ON SWITCH ASSEMBLY TO SET IN THE OPEN POSITION.
DEPRESS ROCKER TOWARD NUMBER DESIGNATIONS ON SWITCH ASSEMBLY TO SET IN CLOSED POSITION.
NOTE 2:
SWITCH ASSEMBLY 4
DETECTOR GROUPING/VOTING LOGIC
OP = OPEN, CL = CLOSED, DC = DON'T CARE
1•2 = 1 AND 2
ROCKER 5 – LATCHING OUTPUTS WHEN ROCKER IS OPEN
ROCKERS 6, 7, 8 NOT USED
SWITCH ASSEMBLY 1
DETECTOR SELECTION SWITCH
THIS SWITCH PROGRAMS THE MICROPROCESSOR
FOR EACH DETECTOR CONNECTED
PLACE ROCKER IN OPEN POSITION
FOR EACH CHANNEL WITH A DETECTOR CONNECTED
4-1
CL
CL
CL
CL
OP
OP
OP
OP
4-2
DC
DC
DC
DC
4-3
DC
DC
OP
CL
4-4
OP
CL
DC
DC
DETECTOR RESPONSE
ROCKER POSITION
1
1
2
2
1•2
1•2
1•2
1•2
FIRE
ZONE
OUTPUTS
1 DETECTOR
2 DETECTORS
1 DETECTOR
2 DETECTORS
1 OF 8 DETECTORS
2 OF 8 DETECTORS
3 OF 8 DETECTORS
4 OF 8 DETECTORS
ALL OPEN
1 CLOSED
2 CLOSED
3 CLOSED

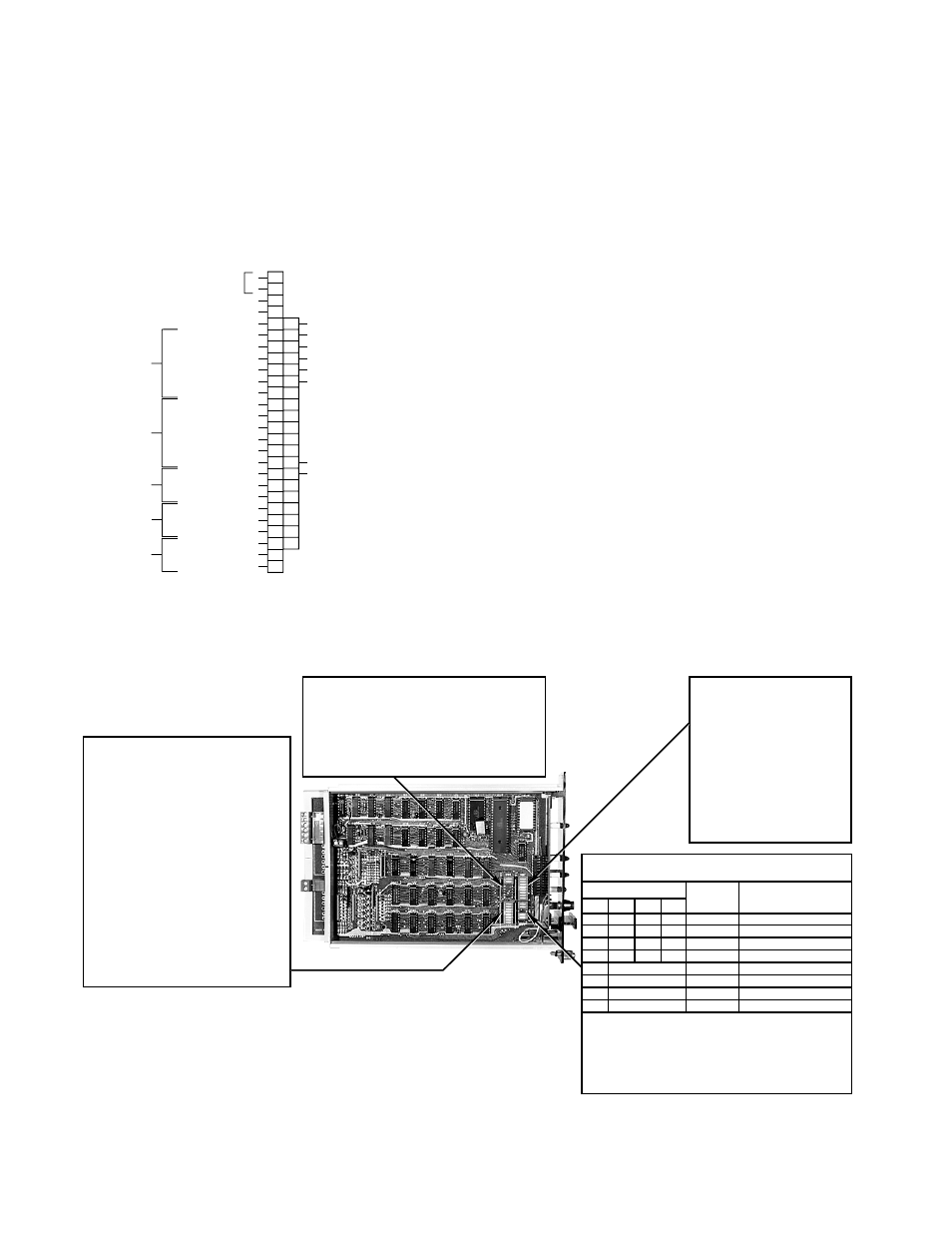

Figure 20—Rocker Switch Setting
J2
J1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
+
–
NOT USED
NOT USED
CHASSIS GROUND
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY CLOSED
NORMALLY OPEN
COMMON
EXTERNAL RESET
CIRCUIT GROUND
CIRCUIT GROUND
NOT USED
D1
D2
D3
D4
D5
D6
D7
D8
B1
B2
B3
B4
B5
B6
B7
B8
FAULT*
ALARM 1
ALARM 2
FIRE ZONE 2
FIRE ZONE 1
+ 24 VDC INPUT
THE FAULT RELAY, SHOWN DE-ENERGIZED
IS NORMALLY ENERGIZED IN THE NORMAL OPERATING MODE
WITH NO FAULTS OCCURING *
A0972
Figure 19—Terminal Configuration
