5.6.4. Sample Profile

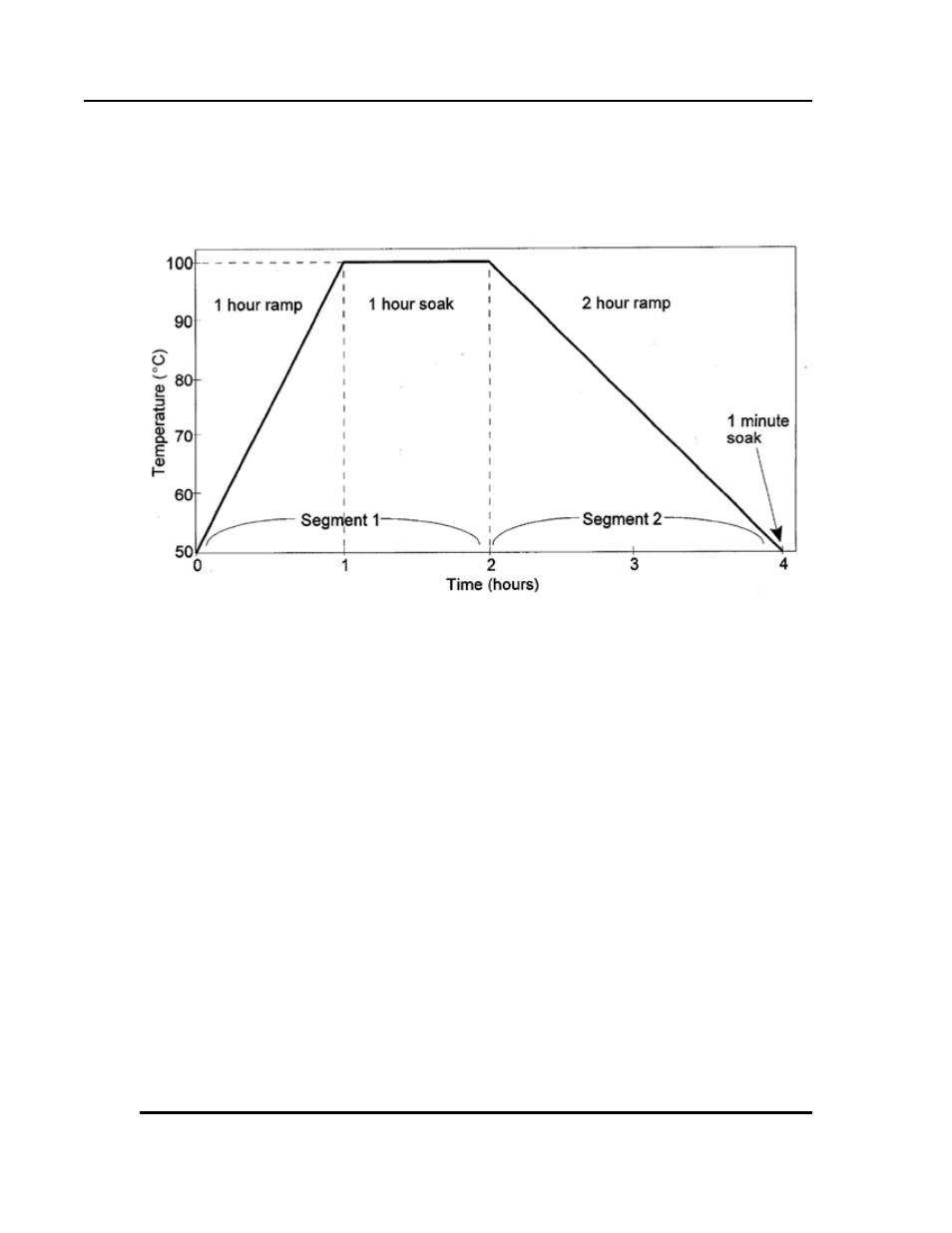

Figure 7 shows a graphic representation of the sample profile, while Figure 8 shows the
parameters entered to achieve that profile.
Figure 7. Sample Profile.
