3.3. Modes and Menus
The Protocol Plus controller uses a menu system to display, setup and run the different
modes and configurations available for the LCC Oven (Figure 4).

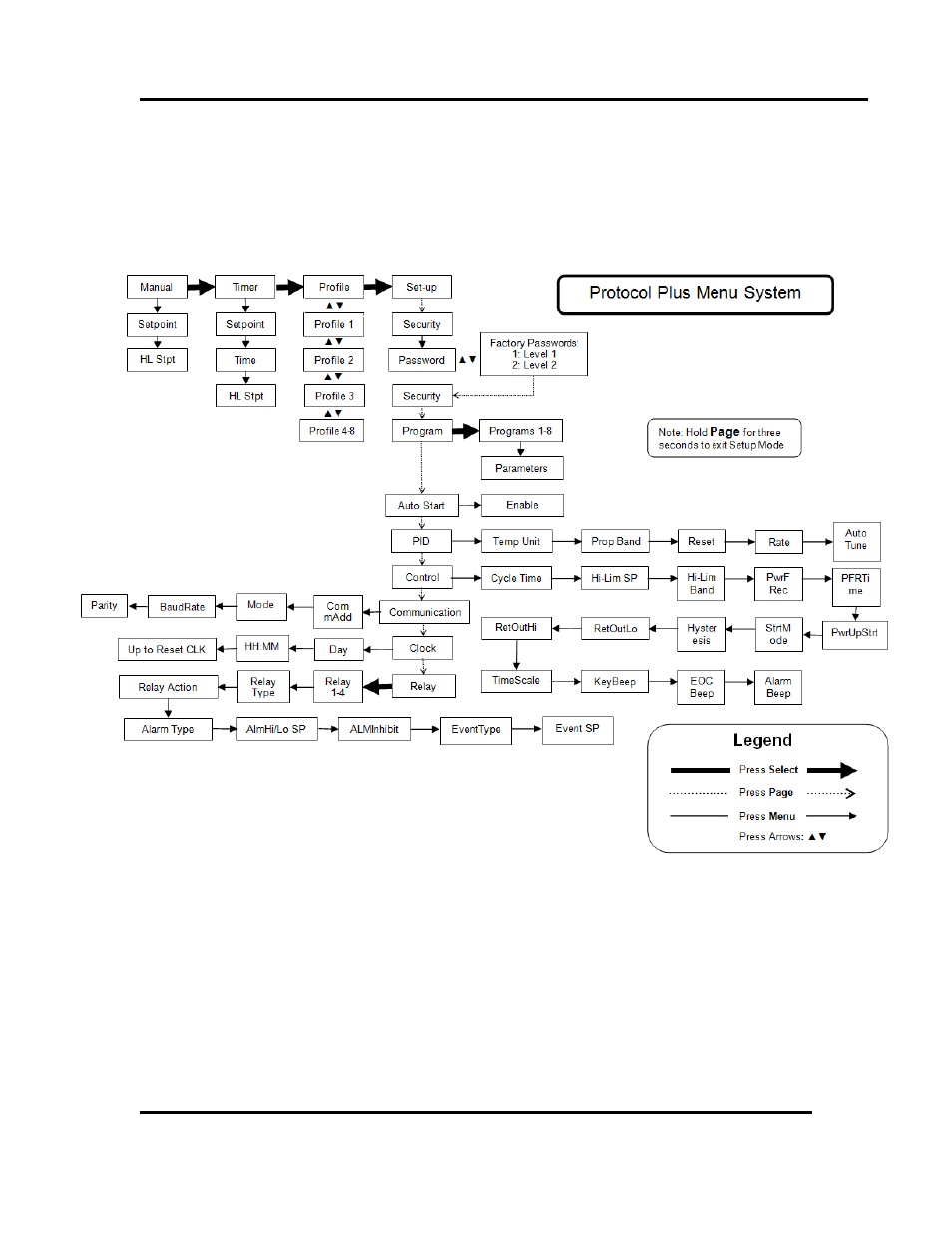

Figure 4. Protocol Plus Menu System—Setup Detail
