Operating Manual

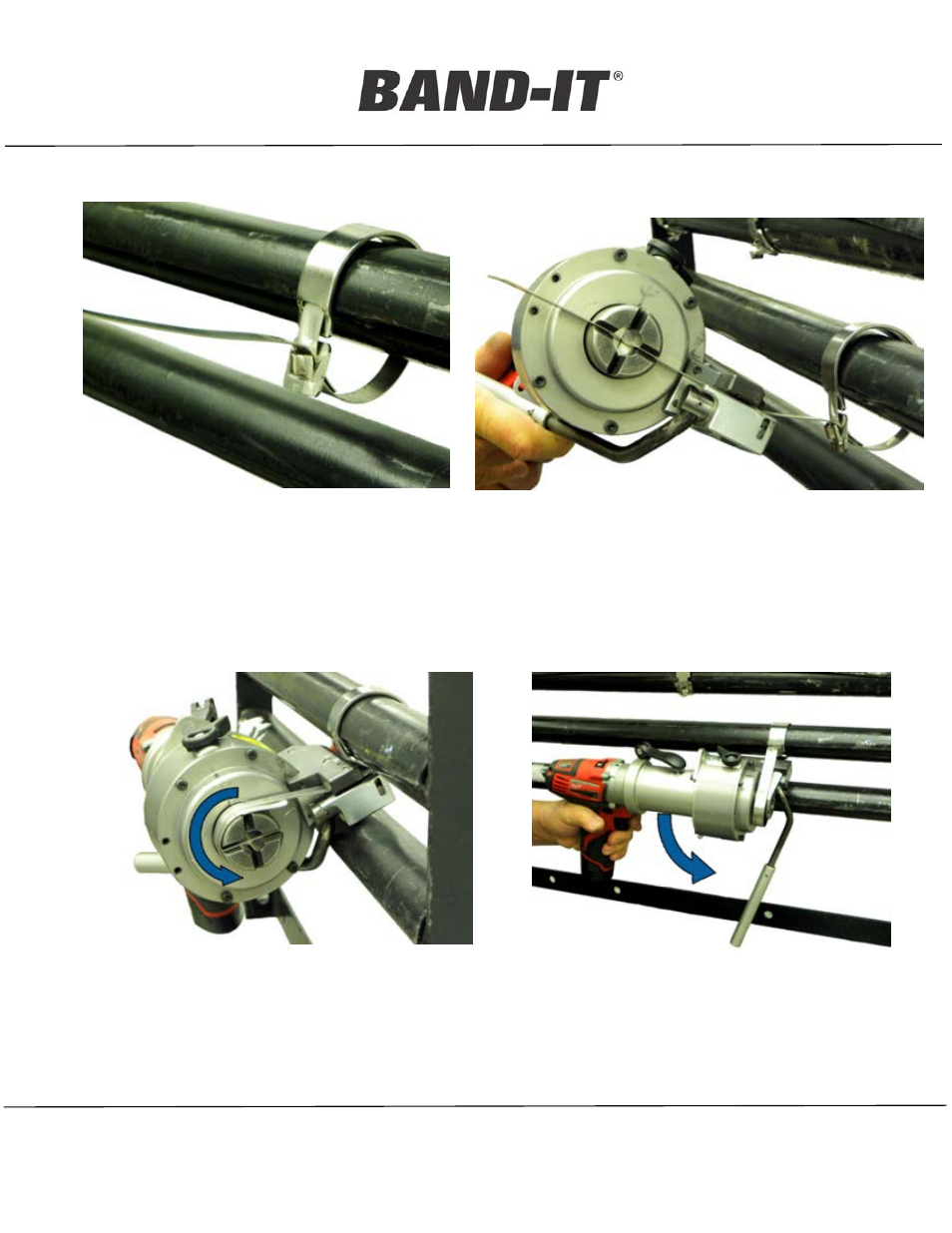

Clamp Installation

1) Wrap band around tube and shield with
the shield and clamp guard aligned with
the buckle toward the operator. Insert the
end of the band through buckle, pull tight
and bend clamp tail away from buckle.

2) Align slot in winding mandrel
with slot in cut-off head and
insert band.

Allow some band

between tool and tube.

3) Actuate drill until clutch begins to ratchet.
Allow tool to pull up the band freely, do not try to
guide the tool during pull up. Determine if clamp
is tight. If the clamp is not tight, lightly re-trigger
the drill a few times quickly to re-engage clutch,
and tighten.

4) Push handle down and forward to
lock clamp to tubing and shield, and to
cut tail of clamp.

Do not try to pull

the handle sideways. It will break the
coil pin
