BAND-IT ID4002 SS Tape Embosser - Manual

ID4002 SS TAPE
Operating
EMBOSSER
BAND-IT-IDEX, Inc. Document # P28797 Rev. -
Instructions
The BAND-IT ID4002 stainless steel tape embossing tool is ideal for identifying electrical cable runs, valves, motors,
switches, and anything else needing the durability of stainless steel identification. Choose either to hole-punch for hang
tags or cut and form cable tie slots for additional strength and security. The ½” wide SS tape embossed with 3/16” inch
characters provides a corrosion resistant, easy-to-read, quick to install, identification tag you can make on the spot.
• Replacement rolls of SS ID tape: Part # ID4059 – ½” wide X .005” thick X 21’ long
A
B
C
E
D
F
G
H
I
• Reverse Image wheel included for special projects requiring mirror script labels.
J
K

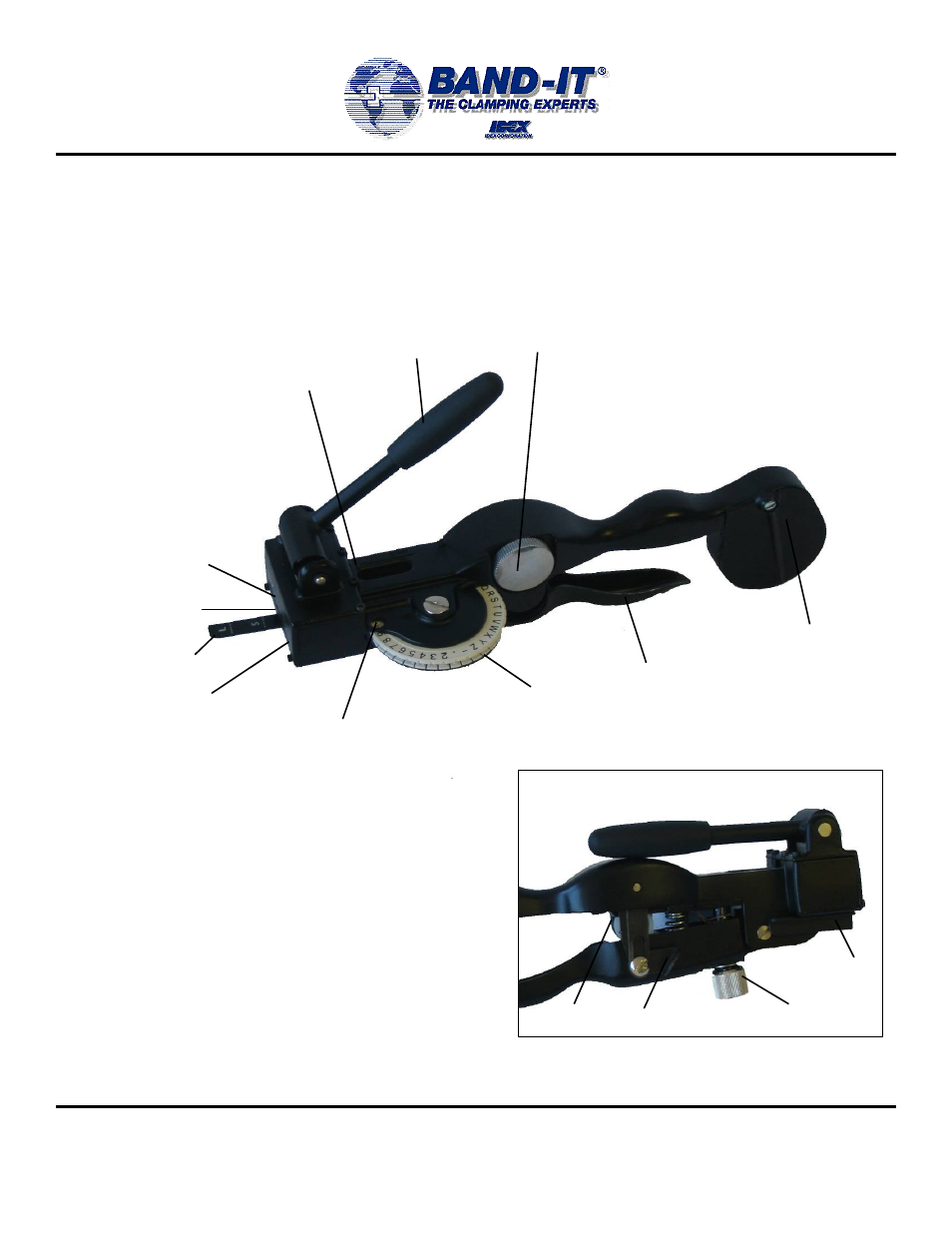

A – Character Wheel
B – Character Viewing Window
C – Hole Punch Slot
D – Tag Centering Guide
E – Tape Exit
F – Tie Forming Slot
G – Start Line
H – Cut Off Handle
I – Tape Advance Knob
J – Tape Cassette Door
L
K – Embossing Handle
L – Tape Waste Exit
N O M
M - Depth Adjustment Knob
N – Release Lever
O - Rollers
