SL4099 Shield-Lok™

Shield-Lok™ Tool Pack

Clamp

www.BAND-IT-IDEX.com

Document # P07687 Rev. E

© Copyright

BAND-IT-IDEX, Inc. 2012

All rights reserved

Page 13

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-624-3925

Operating Manual

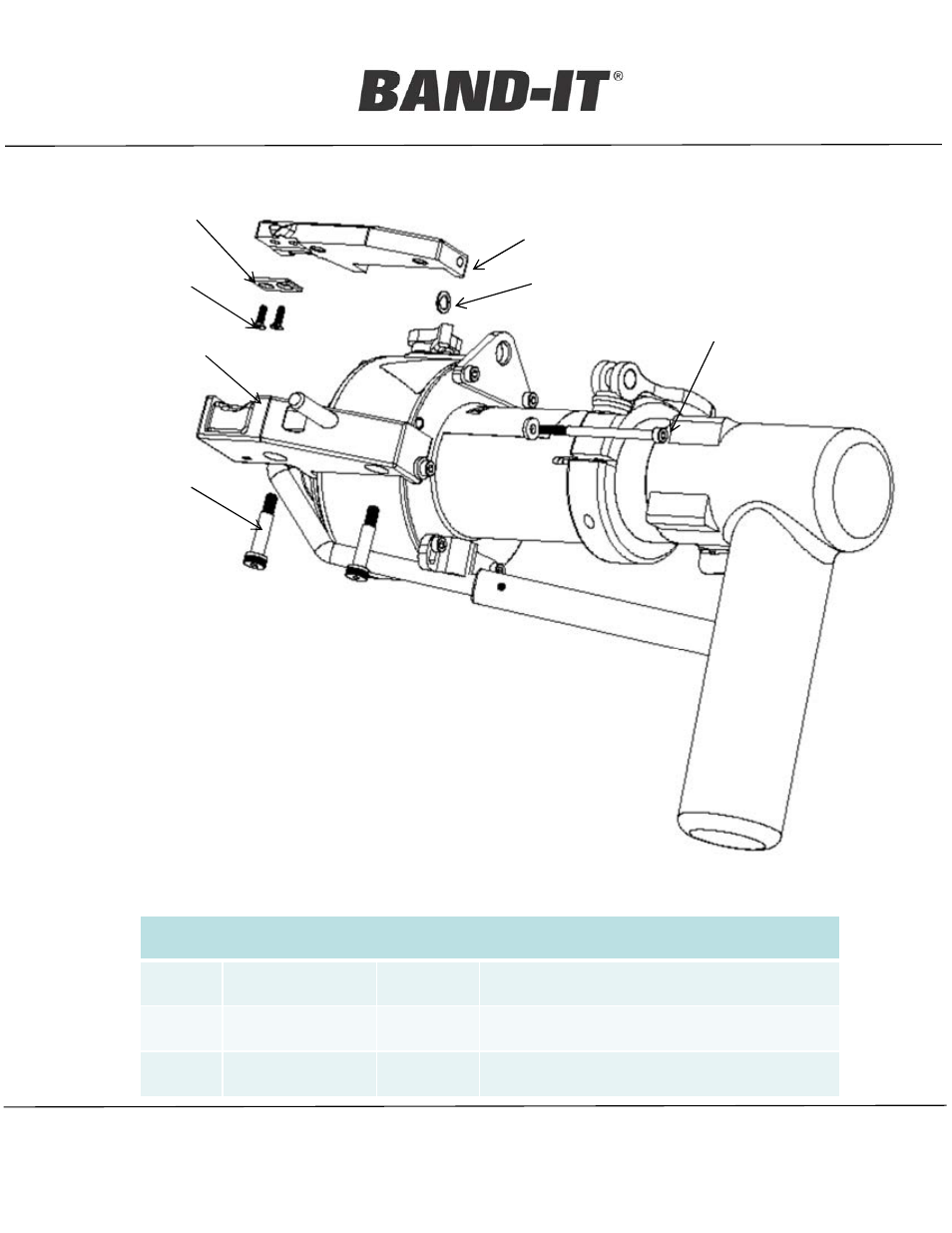

SL4000 Maintenance

Shear Plate Service

Remove battery from tool

Remove shoulder bolts from cut-off head

Remove 4mm screw washer and shims

Gently pry blade away from cut-off head

Remove screws from shear plate (SC052)

Rotate or replace shear plate as needed (SC013)

Re-assemble tool

REPLACEMENT SERVICE PARTS

Item

Part Number

Quantity

Description

1

SC013

1

Shear Plate

2

SC052

2

Screw, Flat Head, M3 X 0.5 X 10

Cut off head

4mm screw
and washer

6mm screws

3mm screws

Shear plate

Blade

Shims
