SL4099 Shield-Lok™

Shield-Lok™ Tool Pack

Clamp

www.BAND-IT-IDEX.com

Document # P07687 Rev. E

© Copyright

BAND-IT-IDEX, Inc. 2012

All rights reserved

Page 14

BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street
Denver, CO 80216-3070 USA
P: 1-800-525-0758
F: 1-800-624-3925

Operating Manual

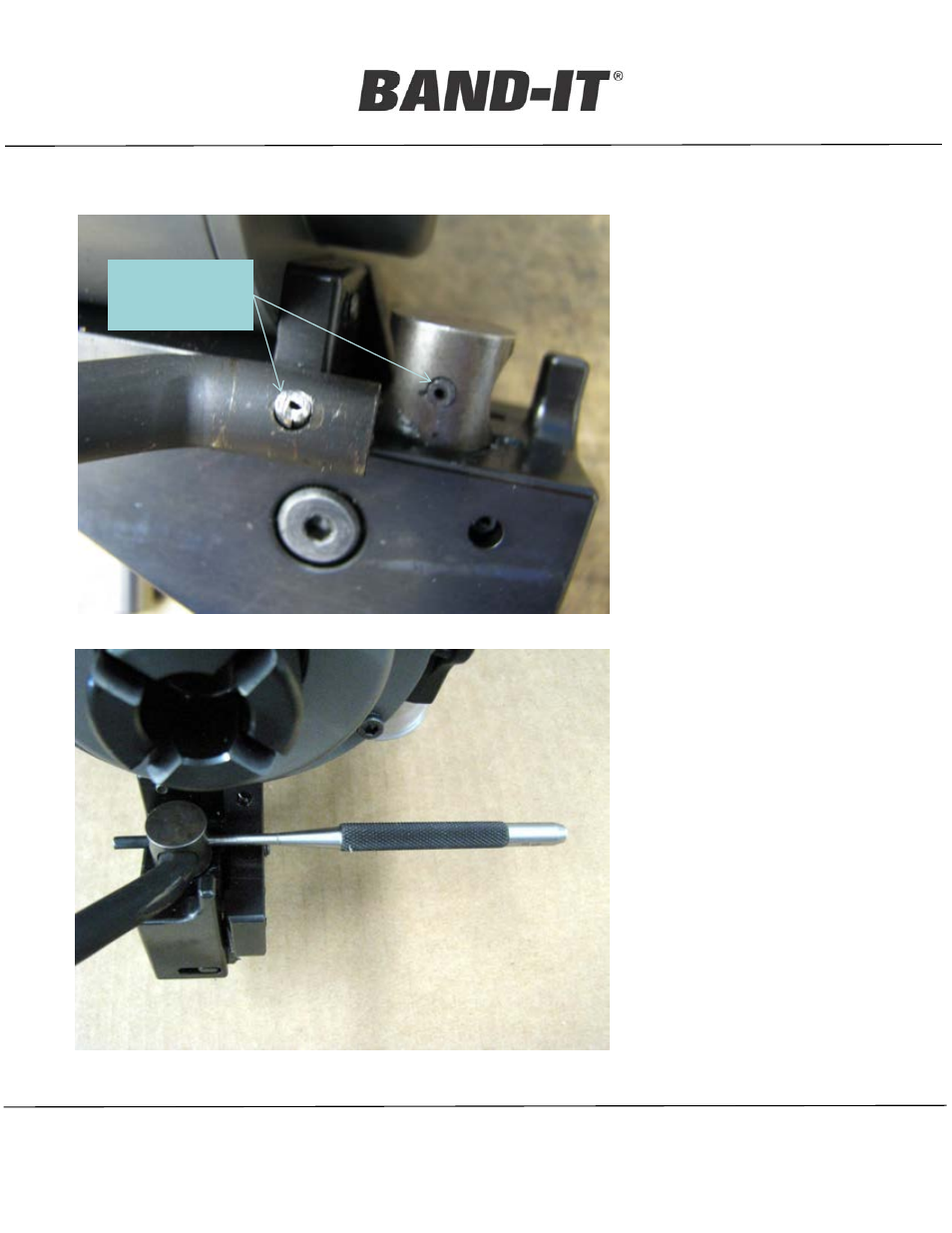

The coil pin is
designed to be the
weak link in the cut-
off system - the coil
pin will break when
forced 90

o

to normal

direction of cut

- Using the 1/8”

punch, remove
broken coil pin pieces
from handle and cam

- Insert the handle

into the cam and
close handle to be
sure the handle is
installed correctly

- Use the 1/8” punch

to align holes in cam
and handle as shown

- Tap a new coil pin

into place (flush with
cam)

Coil Pin Replacement

Broken coil
pin
