ID3016

ID Tag Imprinter

Character Dial
Instructions


Caution: Table is under tension when pushed all the way to the right.


Character Dial Installation – Install before using imprinter for the first time

Remove table limit screw.

Remove escapement wheel screw and washer, place escapement wheel on axle and replace screw
and washer.

Slide table onto the tool from the left and slide all the way to the right. Replace table limit screw.

Remove screw from center of ram assembly and slide character wheel and dial washer into place.
Replace screw.


Character Dial Replacement

Remove screw in center of dial and take dial and knob assembly off. Slide table to extreme right and
remove table limit screw.

To safely return table to the left, hold table to the right and push spacer button to allow table to move
slowly to the left and expose spacing mechanism.

Remove escapement wheel screw, dial washer and escapement wheel and replace with parts from kit.

Move table all the way to the right and reassemble table limit screw.



Dial Kits:
Dial kits come complete with dial
wheel, escapement wheel, and dial washer.

Catalog Number

Description

ID3816

1/16” Letter Dial Kit

ID3906

3/32” Letter Dial Kit

ID3826

1/8” Letter Dial Kit

ID3836

3/16” Letter Dial Kit

ID3846

1/4” Letter Dial Kit

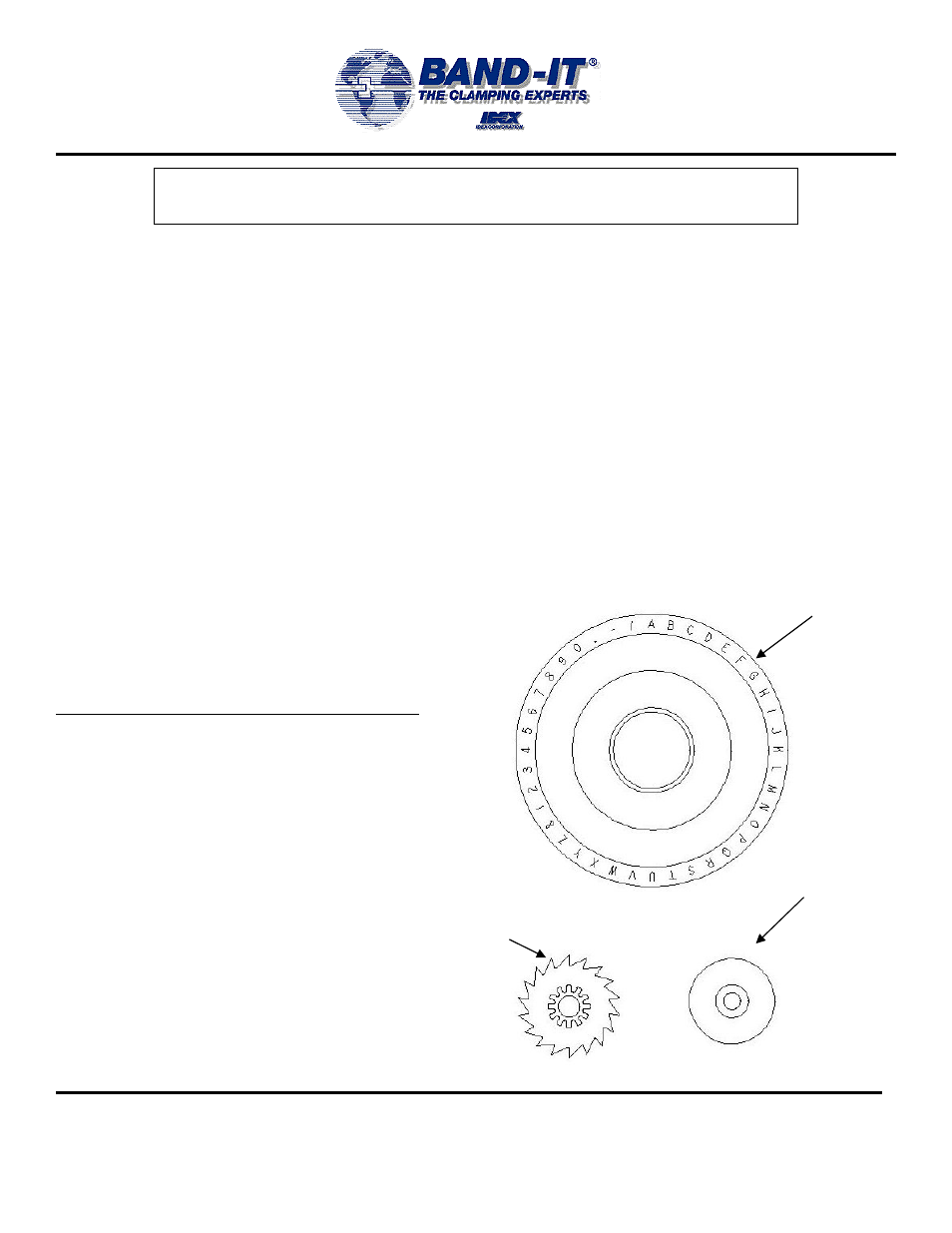

Character
Dial Wheel

Escapement Wheel

Dial Washer
