Operating Manual

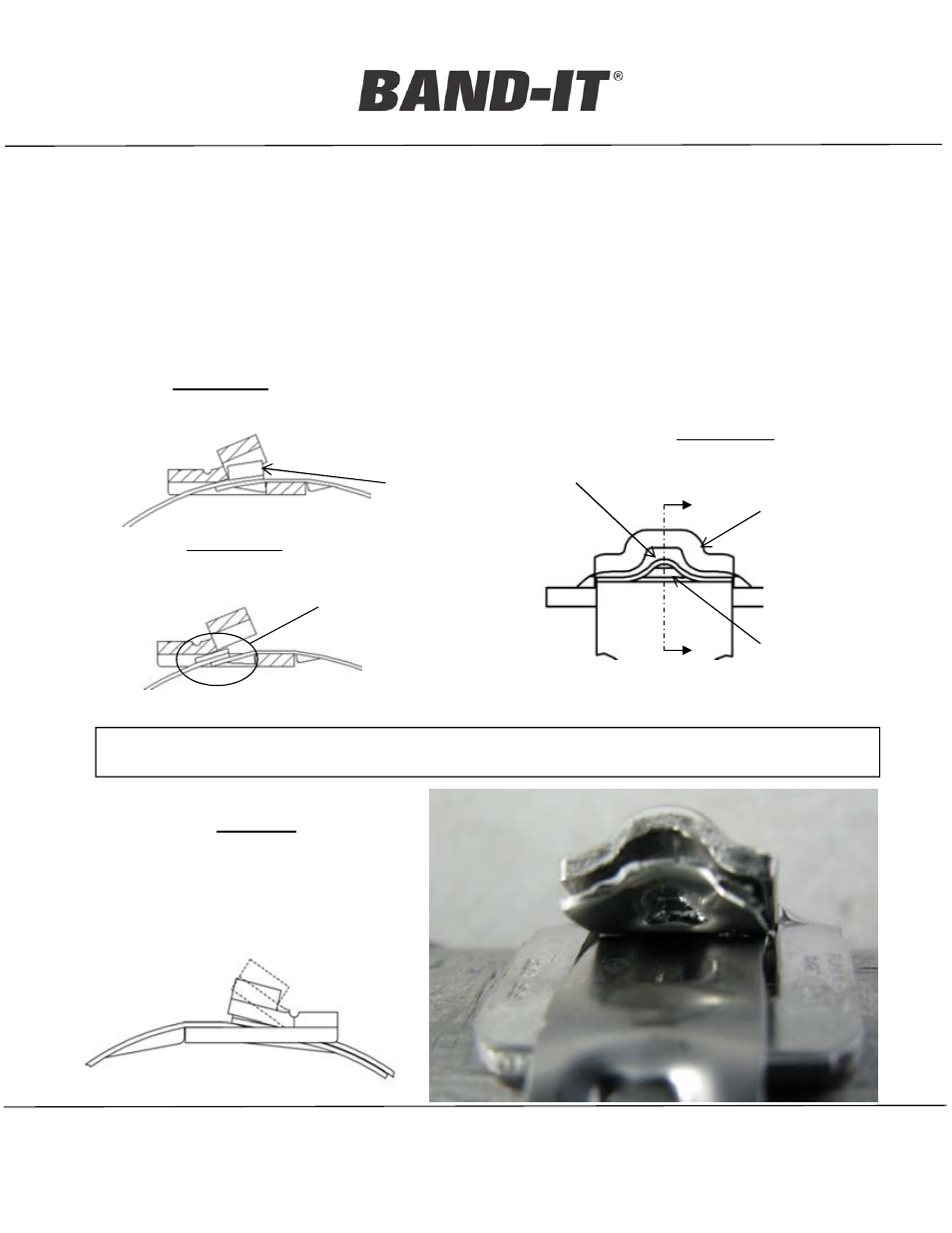

Clamp and Lock Inspection
FRONT VIEW
Completed Free-End Clamp
(Visually inspect lock)
Buckle Shroud
Lock sheared in center
and formed inside
shroud
SIDE VIEW
Completed Clamp
-Hood position may vary between clamps
-It is allowable to pound hood down after
installation of clamp
Important: Visually inspect lock formed into band as shown. If lock has slipped under the sheared surface of
the buckle, remove clamp.
Shear Surface
Section View
Bad Clamp
Lock has slipped back
under sheared buckle
surface
Section View
Good Clamp
After clamp is applied
1)
Verify clamp is tight on tube and shield
2) Inspect lock on clamp
Inspect buckle on completed clamp
