BAND-IT A94079 Ultra-Lok User Manual

Item band-it # qty description

background image

A94051.doc Rev “G“

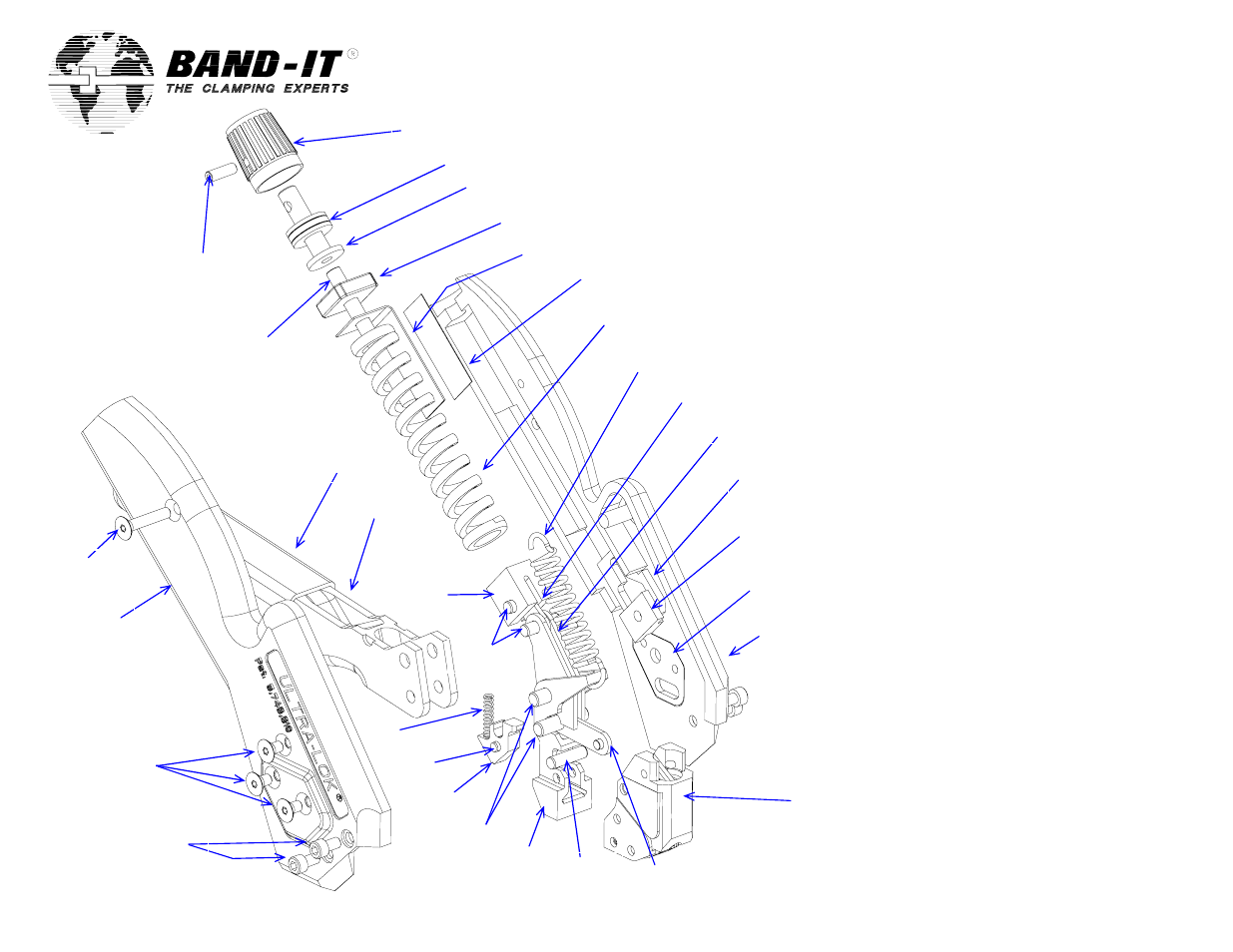

Repair Parts List

A94079 Ultra-Lok Tool

Item Band-It

# Qty

Description

1 M53387 1

Knob,

adjustment

2

M53287

1

Bearing, thrust (3 pieces)

3 A92577 1

Cap,

tension

4 A93487 1

Block,

tension

5 A93587 1

Indicator,

tension

6 A92387 1

Decal,

tension

indicator

7 K02187 1

Spring,

die

8 A91787 1

Spring,

extension

9 A95487 1

Link,

tension

10 A92267 2

Arm,

tension

11 A95387 2

Plate,

tension

12

K93487

1

Body, left, black

13 A91477 2

Plate,

body

14

A73587

3

Pin, dowel, 5/32 x 9/16 lg

15

A91387

1

Lever, pull-up, front load

16

A94887

2

Pin, straight, 3/16 x .780 lg

17 A91187 1

Gripper,

pull

18

K97487

1

Pin, .125 x .313 lg

19

A93887

1

Spring,1/8 x 5/8, 25#

20 A92487 1

Plunger,

tension

21 K97587 1

Handle

22

M50487

1

Grip, textured, green

23

A94487

1

Screw, set, #10-24 x 2.00 lg

24

A85687

1

Screw, set, #6-32 x 7/16 lg

25

A96087

1

Screw, flt-hd, #6-32 x 3/4 lg

26

K93587

1

Body, right, black

27

A91987

6

Screw, flt-hd, #6-32 x 1/4 lg

28

M54587

4

Screw, cap, #6-32 x 1/4 lg

29 K57887 2

Pad,

centering

30

31 - -

Adhesive,

cyanoacrylate

32

-

-

Grease, extreme pressure

33

-

-

Red Loctite (high strength)

34

-

-

Blue Loctite (med. Strength)


2

3

4

5

6

7, 32

8

9

17

16, 32

15

See list of tool head
parts on reverse side

14, 32

1

13 x 2

18, 32

27 x 2, 34

11 x 2

Cut-off link and pin shown as
a reference from reverse side

22, 31

23, 32, 33

24, 34

28 x 2, 34

10 x 2

21

29 x 2

25, 34

14, 32

26

19

12

20

Page 1 of 4
