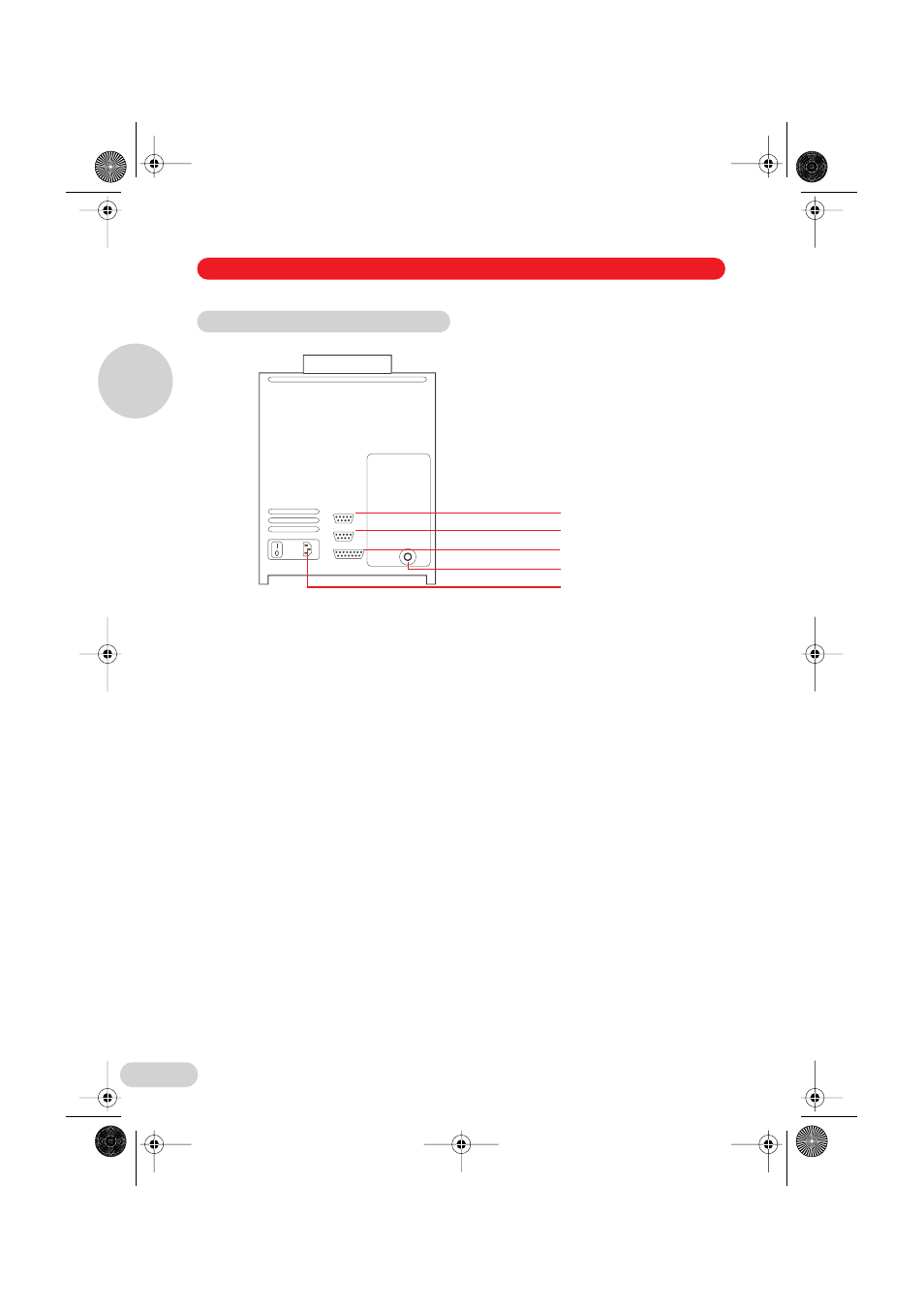

Fig. 2: Diagram of rear of device
– Electrical connection is effected via the mains socket with integrated mains switch (1).
– The connection to the external pressure supply (2) takes place via the delivered pressure
tube, 2.5 m.
– Connection to an Eppendorf manipulator designed for injection is effected via the 15-pin
interface (3).
– Optional switches (e.g. foot control, hand control) or a computer can be connected to the
9-pin interfaces (4).
