12. OPTIONS
1 12 - P/N 0112478
T

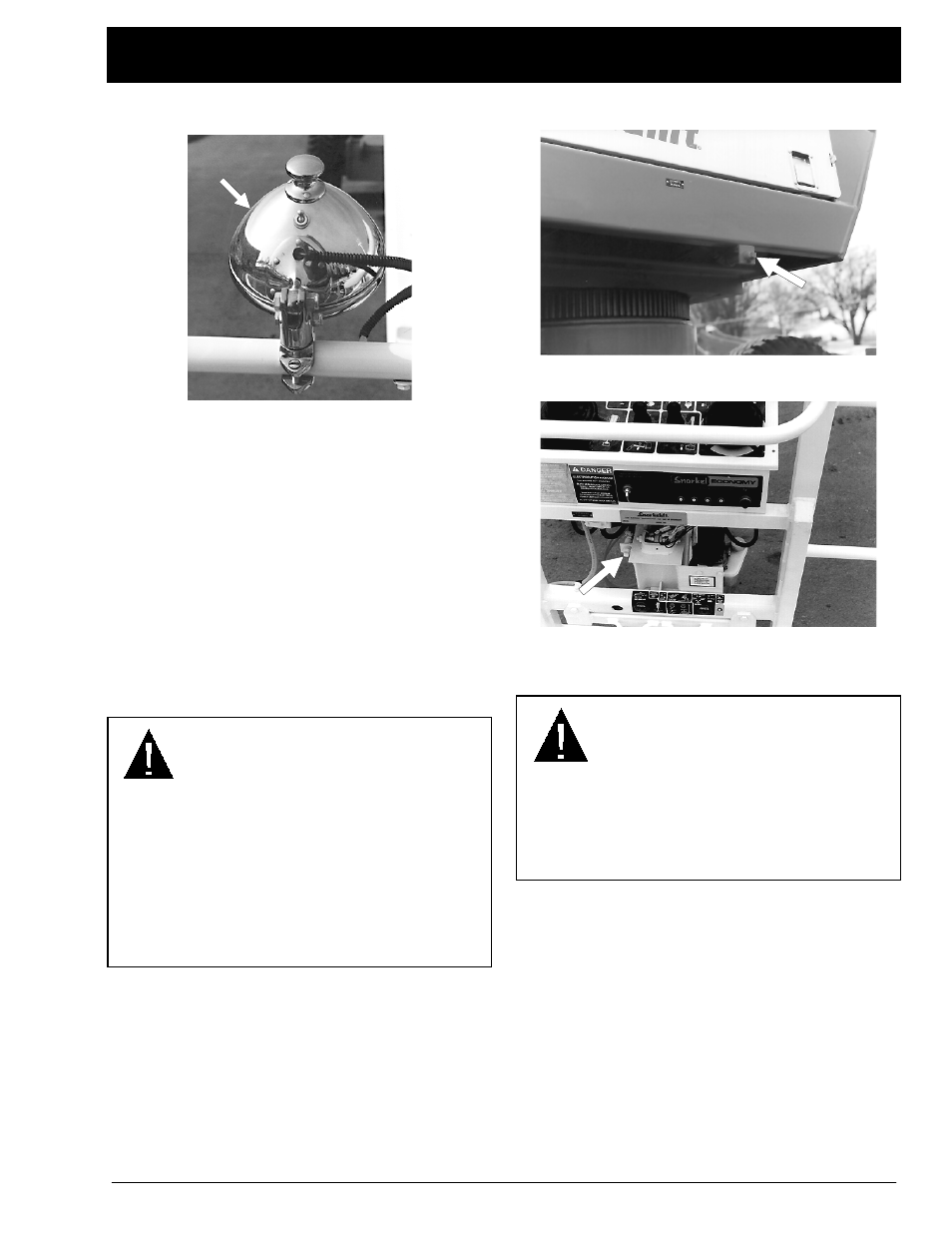

PLATFORM WORK LIGHTS
The platform work lights are located on top the
platform guard rail. For the lights to work the
BATTERY switch must be ON and the following
switches, on the ground-control box, must be set
as indicated:
SELECTOR SWITCH .......PLATFORM
EMERGENCY STOP........UP FOR RUN
MASTER KEY SWITCH ...ON
The toggle switch on the back of a light turns it
on.
If you want to change the direction a light points,
use two 1/2” box-end wrenches to loosen the
clamp immediately below the light, point the light
where you want it, then retighten the clamp.
C A U TIO N
Incandescent lights draw three amperes (35
watts) each. Halogen lights draw four amperes
(50 watts) each. If you work with the lights turned
on and the engine turned off, the batteries can
discharge to the point they will neither start the
engine nor run the EMERGENCY POWER
hydraulic pump. If you cannot leave the engine
running while the lights are on, start and run the
engine at least 15 minutes in each hour.
T
AIR LINE TO PLATFORM
The input to the air line is on the bottom left-
rear of the turntable.
The outlet is on the platform mounting frame.
The maximum safe working pressure for the
air line is 250 psi (1725 kPa).
C A U TIO N
Water or anti-freeze solution in the air line
might damage some air tools. If you use the
air line to conduct water or anti-freeze
solution be sure to drain and blow out the air
line before attaching air tools.
The air line can be used to conduct air,
water, or anti-freeze solution. If you want to
conduct other liquids, contact the Snorkel
Engineering Department for compatibility
information.
