6. CONTROLS

6 -

P/N 0112478

1 3

1 2

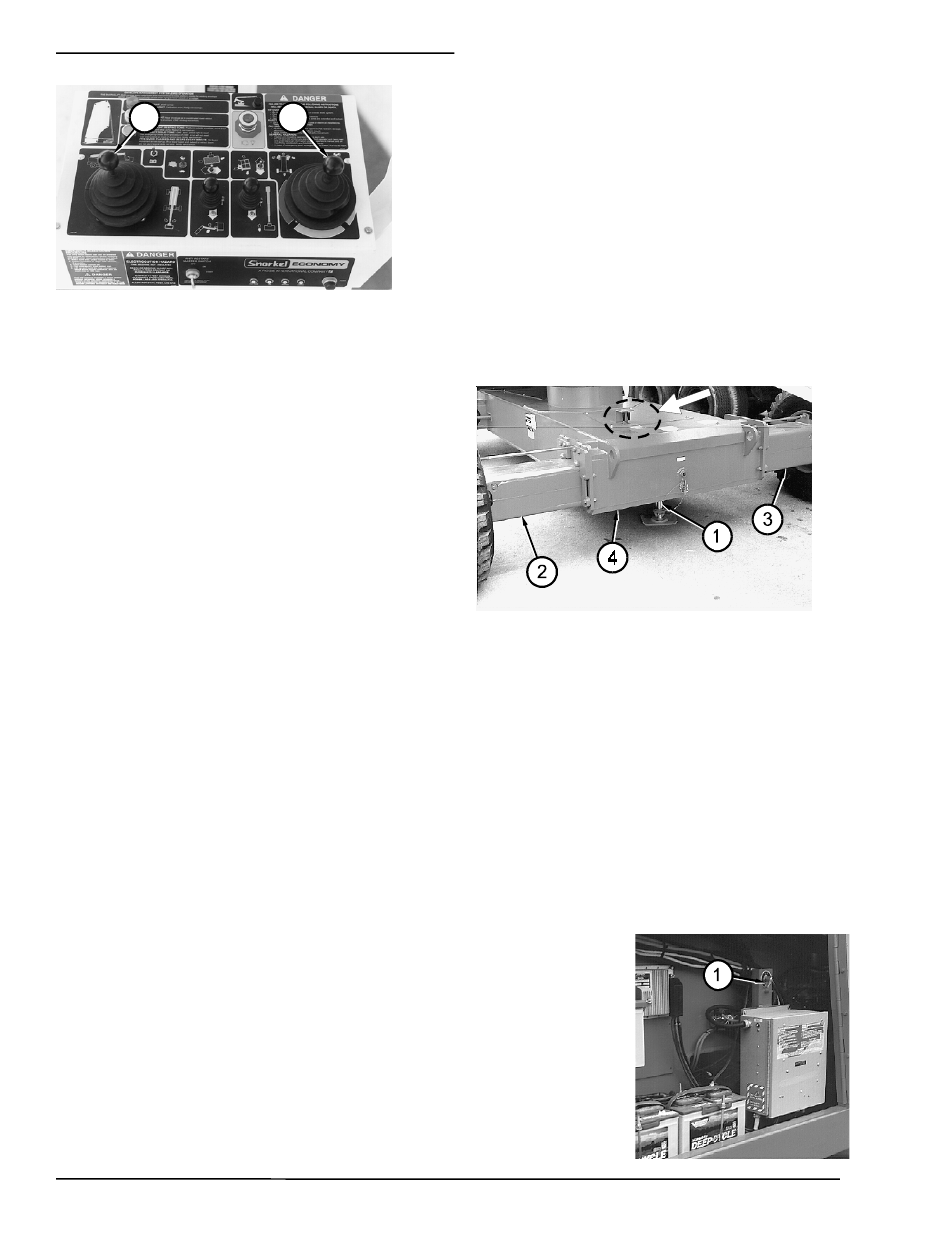

12. LIFT/SWING CONTROLLER:

UP: Slowly push the LIFT/SWING controller
forward and the main-boom raises. The further
forward you push the controller the faster the
main-boom raises.

DN: Same as UP only the main-boom goes
down.

CW: Slowly push the LIFT/SWING controller to
the left and the turntable swings clockwise
(from above). The further left you push the
controller the faster the turntable swings.

CCW: Same as CW only the turntable swings
counterclockwise.

13. DRIVE/STEER CONTROLLER:

DRIVE FORWARD: Slowly push the
DRIVE/STEER controller forward and the
TB100J moves forward. The further forward
you push the controller the faster the TB100J
goes (max. 3 mph, 4.8 km/hr).

DRIVE REVERSE: Same as DRIVE
FORWARD except the TB100J moves
backward.

STEER RIGHT: Push the DRIVE/STEER
controller to the right and the front wheels move
in the direction for a right hand turn. The longer
you hold the controller to the right the further
the wheels turn.

STEER LEFT: Works the same as STEER
RIGHT only for a left hand turn.

NOTE: The wheels stay the direction you
turn them, they do not automatically return to
center the way automobile wheels do.

NOTE: There are blue and yellow arrows on
top of the chassis. The blue arrows point to
the FORWARD end of the chassis and to
the LEFT side of the TB100J. The yellow
arrows point to the REVERSE end of the
chassis and to the RIGHT side of the
TB100J. The DRIVE/STEER controller is
color coded to match the arrows. The color
coding is designed to keep you from
becoming disoriented when you are aloft and
the platform is rotated with respect to the
chassis.

CHASSIS

AXLES:

RAISE: Lowers the jack (1) and raises the

chassis (4).

LOWER: Raises the jack and lowers the

chassis.

EXTEND: Extends both rear axles (2) (3).
RETRACT: Retracts both rear axles.

NOTE: The axles extend or retract one at a
time, not simultaneously.

For the AXLES controls to work
BOOMS/AXLES SWITCH must be set to
AXLES and the SELECTOR SWITCH set to
GROUND. Also, the main boom must be down
and retracted.

TURNTABLE

BATTERY:

When the
BATTERY switch
(1) is set to OFF,
all of the batteries
are disconnected
from the electrical
system.
