7. OPERATION

7 -

P/N 0112478

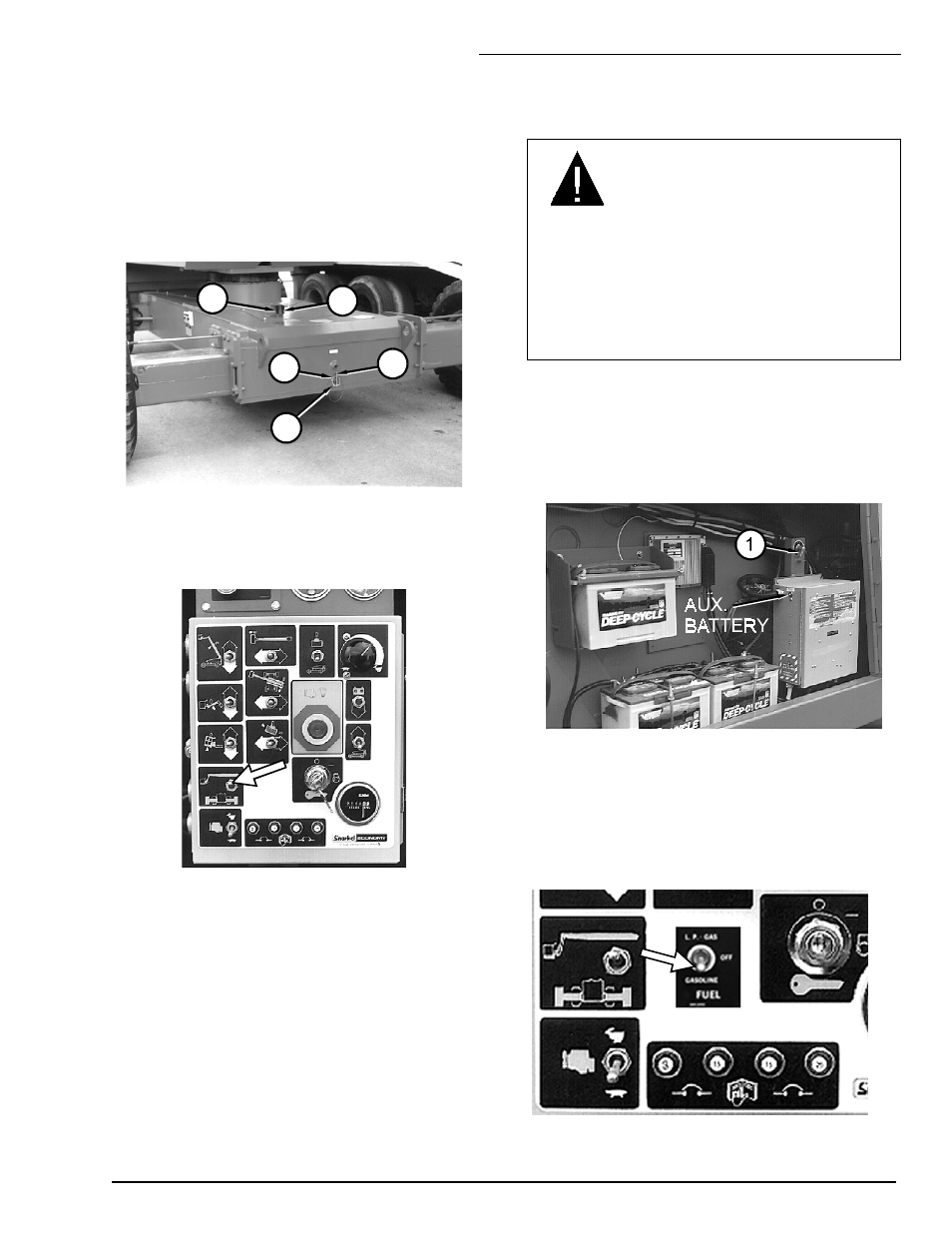

snapper pin (13) through the pin lock (11) and
the hole lip.

NOTE: You might have to cycle the axle
control lever (14) back and forth, to align
holes inside the chassis, while you push the
pin lock (11) into the chassis.

5. Pull and hold the jack control lever (15) to
LOWER until the wheels are on the ground and
the jack stops retracting.

1 4

1 5

1 2

1 3

z At the ground-control box:

1. Set the BOOMS/AXLES SWITCH to
BOOMS.

z What next:
1. If you want to control the platform from the
ground-control box, go to the "MOVING THE
PLATFORM" section of this chapter.

2. If you want to control the platform from the
platform-control box, return to the "Pre-Start
Conditions" in the "STARTING FROM THE
PLATFORM CONTROL BOX" section of this
chapter.

RETRACT & LOCK REAR AXLES

Retracting the rear axles is basically the
reverse of extending them.

D A N G E R

Death of serious injury can result if a
TB100J tips over. A TB100J might tip over if
the rear axles are retracted while the booms
are up or extended. The TB100J should have
its booms completely retracted and
completely down before retracting the rear
axles.

z Inside the turntable:

1. Set BATTERY (1) to ON and look to see that
the AUX. BATTERY circuit breaker has not
popped out (close the battery-compartment
door).

z At the ground-control box:
(OPTION - DUAL FUEL ) For machines set up
to run both gasoline and LP gas: Set the FUEL
switch to GASOLINE or L.P.-GAS depending
on which you want to use. If you select L.P.-
GAS, open the valve on top the LP gas tank.
