4. GAUGES
3
4 -
P/N 0112478
T
HYDRAULIC OIL FILTER
2
1

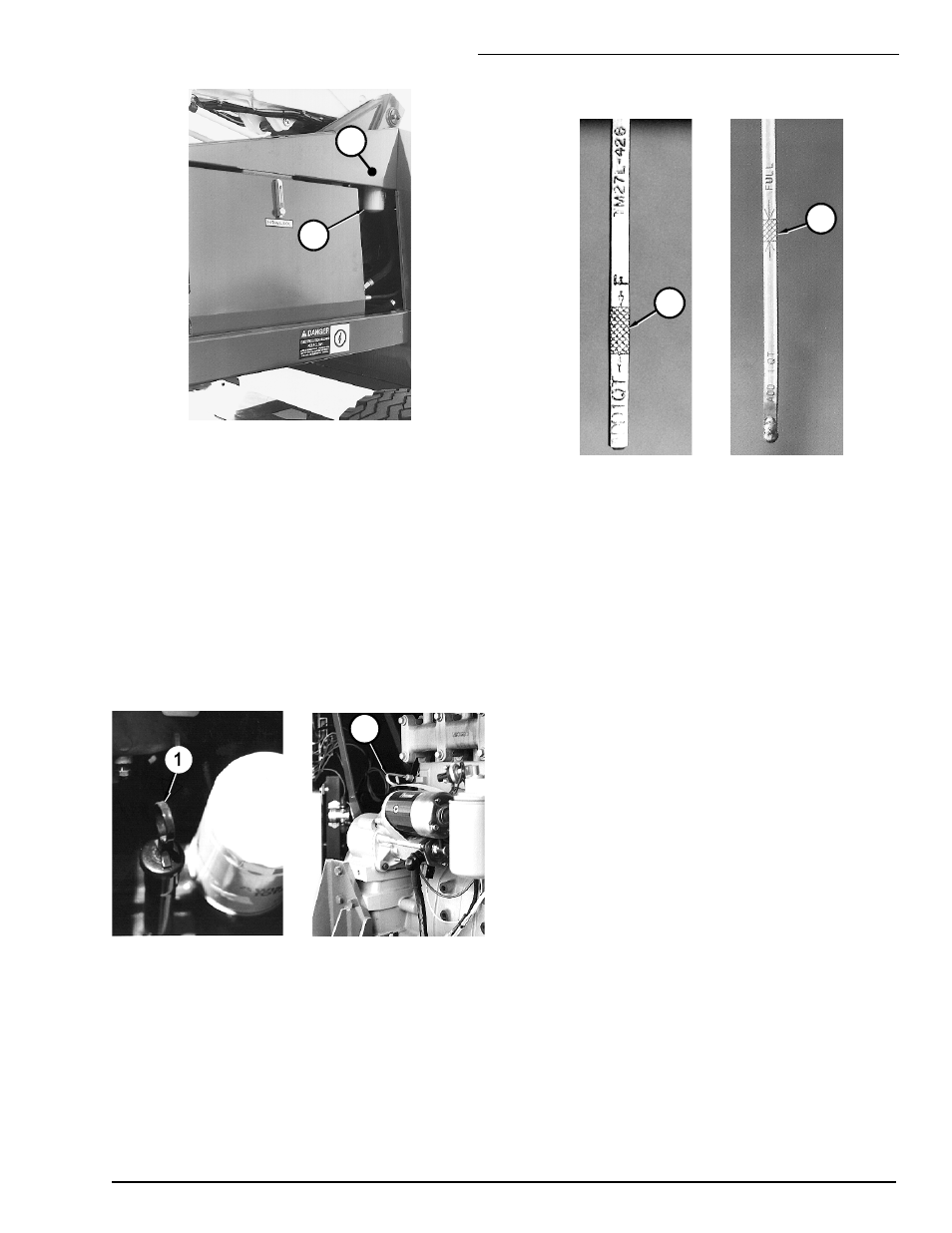

The hydraulic-oil filter gauge (1) is located above
the hydraulic-oil filter (2). The gauge measures
pressure into the filter. As the filter clogs, the
pressure goes up.
The hydraulic-oil filter gauge should only be read
by qualified trained maintenance personnel. An
accurate reading requires very special conditions
and should not be attempted by operators.
T
ENGINE OIL
CONTINENTAL CUMMINS
2
Engine oil level is measured with a dipstick (1)
(2). Oil sump and oil filter capacities given in the
“SPECIFICATIONS” chapter are approximate.
True values may vary from machine to machine
due to slight variations or modifications during
production. The oil dipstick is the only way to
accurately gauge if the engine oil level is correct.
CONTINENTAL
CUMMINS
3
4
Engine oil level should always be in the cross-
hatched area (3) (4) of the dipstick — never
above or below it. Check the oil level after the
engine has been turned off a few minutes so that
oil can run down out of the engine into the sump.
