3. SPECIFICATIONS
5 3 - P/N 0112478
T

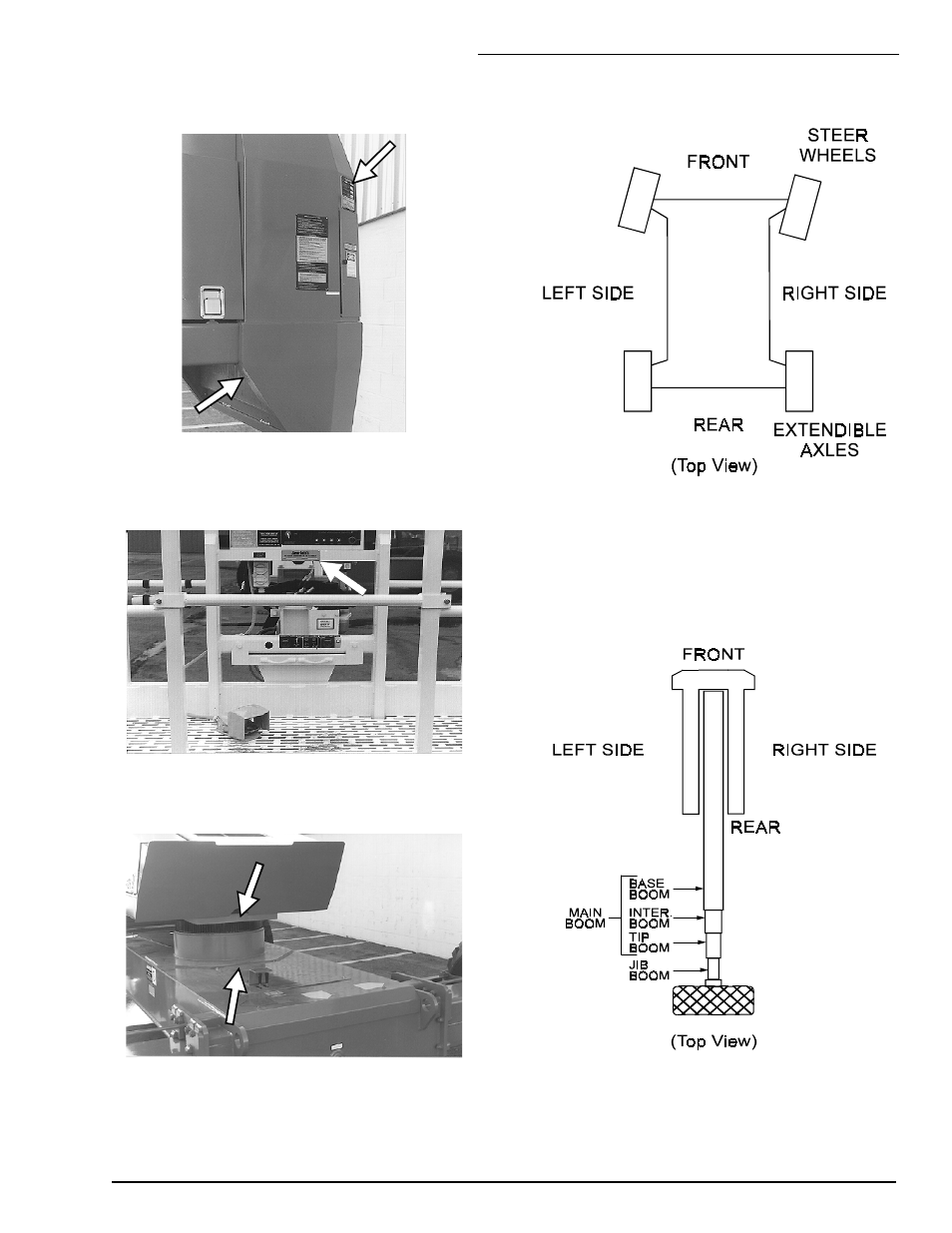

SERIAL-NUMBER LOCATIONS
Serial Numbers are located in five places.
1. Above the ground-control box on a placard.
(The last four digits are month and year
shipped.)
2. On the back-right of the counterweight.
3. On a placard below the platform-control
box. (Last four digits are mo. and yr.
shipped.)
4. Below the drain hole in the turntable.
5. At the weld behind the rotation bearing turret.
T
CHASSIS NOMENCLATURE
T
TURNTABLE & BOOM
NOMENCLATURE
NOTE: If the turntable is rotated 180° its
FRONT is above the REAR of the chassis.
3 - 5 (3 - 6 blank)
